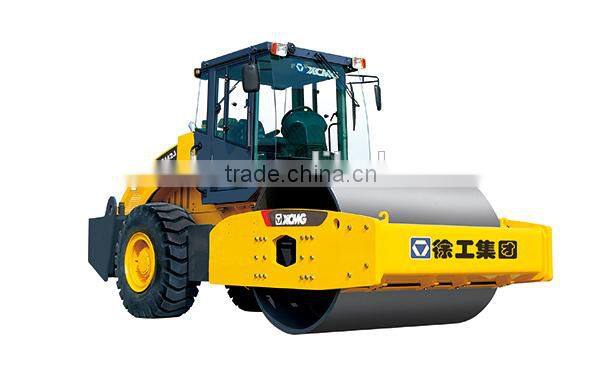

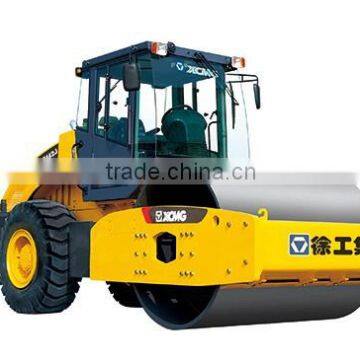

XCMG High Quality Road Roller XS142J
XS142J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature
•The spacious and bright cab features wide view and comfort.
Simple operation
•The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
•Adopt the gearbox with synchronizer, which is easy to operate.
•The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
•The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
•Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
Parameters
Type |
Unit |
XS142J |
Working mass |
kg |
14000 |
Distribution mass on front drum |
kg |
7000 |
Static linear load |
N/cm |
322 |
Driving speed |
km/h |
|
I speed |
|
2.7 |
II speed |
|
4.8 |
III speed |
|
10.5 |
Theoretical gradeability |
% |
30 |
Min,Outer turning radius |
mm |
6800 |
Steering angle |
|
±30° |
Swinging angle |
|
±11° |
Vibrating frequency |
Hz |
28 |
Nominal amplitude(High/Low) |
mm |
1.9/0.95 |
Centrifugal force@ High/Low Amp |
K N |
274/137 |
Engine model |
|
D4114(Shangchai) |
Type |
water-cooling, pressurized |
|
Max. Power |
kW |
92@2200r/min |
Rated oil wear |
g/ kW .h |
230 |
Hydraulic tank capacity |
L |
170 |
Fuel tank capacity |
L |
180 |
Detail Pictures
Packaging&Shipping
Certificate
Cooperative Factories
Any questions, please feel free to contact me.
