OEM for Famous Brand Type Multi Function Heat Pump Water Heaters
US$ 1,313 - 1,873
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Type:
Air Source Heat Pump
Installation:
Wall Mounted
Storage / Tankless:
Storage
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan Guangzhou or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi Function Heat Pump Water Heaters,5.0kwUS$ 566 - 687MOQ: 2 Pieces -
2015 Multi Function Heat Pump Water HeatersUS$ 633 - 781MOQ: 2 Pieces
-
Dibetter Brand 24kw EVI Split Air to Water Heat Pump(CE Approved,Copeland Compressor)US$ 1,788 - 2,362MOQ: 1 Unit
-
24kw Split EVI Heat Pump(R407C or R410A,Copeland Compressor)US$ 1,562 - 1,962MOQ: 1 Piece
-
90kw EVI Split Air Source Heat Pump(CE Approved,Sanyo Compressor)US$ 6,782 - 7,124MOQ: 1 Piece
Type
Air Source Heat Pump
Installation
Wall Mounted
Storage / Tankless
Storage
Housing Material
Stainless Steel
Use
Bathroom
Certification
CB, CE, EMC, Other, SASO, CB, CE, EMC, RoHS, SASO, CCC
Place of Origin
Guangdong, China
Brand Name
DIBETTER or OEM brand
Model Number
DBT-7.5HR
Heat pump with heat recovery function,heat pump features:
| Warranty: 24 months guarantee for the whole unit. | ||||||||
| Features: 1. Safety:water and electric separately. | ||||||||
| 2. Using complete free hot water when the unit is operating at cooling model,super energy-saving and environment protection! | ||||||||
| 3.Five models are available,Hot water,Heating,Hot water+heating,Cooling+Hot water,Cooling. | ||||||||
| 4.Conveninet: Intelligent remote controller,with simple key operation.Displays error code when having problem,easy for maintenance. 5.Multiple protections for the whole heat pump, guaranteeing safe operation. | ||||||||
| 6.World famous brand compressor,4-way valve,motor,PCB,heat exchanger used to ensure top quality an high efficiency. 7. All weather operation: stable operation without being influenced by weather. | ||||||||
| 8.Metal case and stainless steel case are available,R22,R407C,R410a,R417A,R134A are for optional. | ||||||||
| 9.Metal case water tank with powder coating or stainless steel case are available. 10.Simple installation: rooftop, balcony, yard or basement can be suitable places for the installation. 11.Quiet: Special design for motor and fan to decrease noise, no disturbance to owners and neighbours. |

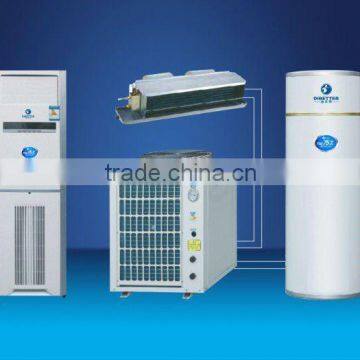

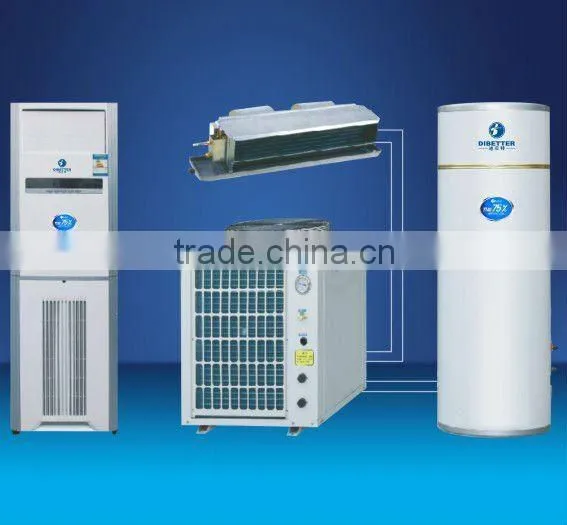

| Air sources heat pump+Air conditioner(Heat recovery function) | |||
| Parameters | Model | DBT | 7.5HR |
| Rated Heating capacity | kW | 7.5 | |
| Hot Water | Rated hot water capacity | L/H | 160 |
| Rated power input | kW | 1.72 | |
| COP | W/W | 3.3 | |
| Rated operating current | A | 10.4 | |
| Rated output water temperature | °C | 55 | |
| Maximum output water temperature | °C | 60 | |
| Water pipe(Inlet/Outlet) | Inch | 1/4/1/2 | |
| Heating capacity | Rated Heating capacity | kW | 5.8 |
| Rated power input | kW | 2.18 | |
| COP | W/W | 2.65 | |
| Rated operating current | A | 9.9 | |
| Refrigerant pipe(Liquid) | Inch | 1/4' | |
| Refrigerant pipe(Gas) | Inch | 1/2' | |
| Cooling capacity | Rated cooling capacity | kW | 5.2 |
| Rated power input | kW | 1.8 | |
| EER | W/W | 2.89 | |
| Rated operating current | A | 8.2 | |
| Refrigerant pipe(Liquid) | Inch | 1/4' | |
| Refrigerant pipe(Gas) | Inch | 1/2' | |
| Power supply | 220V/50Hz-60Hz | ||
| Compressor | Type | Rotary | |
| Refrigerant | Type | ||
| Unit noise level(Indoor/Outdoor) | dB(A) | 43/47 | |
| Working temp. range | °C | -7~43 | |
| Dimensions | Indoor Unit(Net) | mm | 930 X 280 X 200 |
| Package | 1000 X 350 X 260 | ||
| Outdoor Unit(Net) | 840 X 285 X 610 | ||
| Package | 990 X 410 X 670 | ||
| Water tank(Net) | 520x1500 | ||
| Package | 600x1650 | ||
| Weight | Indoor Unit(Net/Gross) | Kg | 12(14) |
| Outdoor Unit(Net/Gross) | 50(55) | ||
| Water tank(Net/Gross) | 42 | ||
| Note: | |||
| 1. Rated heating conditions: ambient temperature DB20°C WB15°C, Initial water temperature: 15°C, Final water temperature: 55°C | |||
| 2. The above designs and specifications might be changed without prior notice for product improvement | |||
