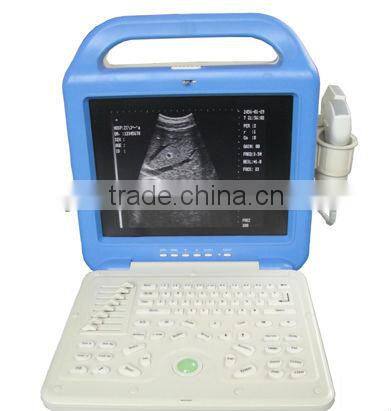

AJ-6100B LCD Portable Pseudo Color US Pregnancy Scanner Ultrasound Machine Quality Choice

Specifications

AJ-6100B LCD Portable Pseudo Color US pregnancy scanner ultrasound machine

1.pregnancy scanner ultrasound machine
2. M display mode
3.8 TGC control
4.10 inches SVGA Monitor

Features

Powerful measurement & calculation software packages

8-Segment TGC ABD Trackball adjustment

10 inch LCD monitor

OB measurements: BPD, GS, CRL, FL, AC, HC, etc

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Real time pseudo color image display

Specification

Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;

Display modes: B, B+B, B+M, M, 4B;

Scanning depth: 240mm;

Gray scales: 256;

Body marks: 18;

Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time & froze;

Image conversion: up/down, left/right, black/white;

Function of puncture guide;

Max dynamic range>=100db;

Detecting depth>=190mm, scanning depth>=240mm;

The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;

Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);

Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);

Per: 4-stage per function;

Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;

Fixed characters and real-time clock and calendar display;

Software reset function;

Printer function: can connect laser printer and Video printer directly;

Comment: Date, Name, Sex, Age, Hospital, Annotation;

Zooming: *1.0, *1.2, *1.5, *2.0;

Port: USB 2.0, VGA, Video connector;

Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;

USB Function of image store: more than Sixteen thousand images;

Power supply: AC 110V-240V, 50HZ/60HZ;

Probe connector: 2;

USB/VGA/ ports;

Video connector;

Measurement

Standard Configuration

Main unit 1set;

10 inches LCD monitor 1pc;

60R/3.5MHZ Convex array probe(2.0/3.5/4.5/5.0/5.5/6.5/7.5MHz) 1pc;

Power line 1pc;

Ground line 1pc;

Fuse 4 pc;

User’s manual in English 1pc;

Warranty card 1pc;

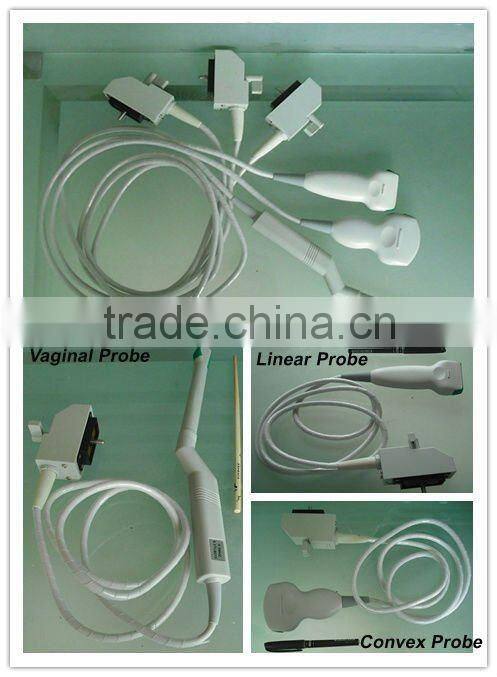

Options

L40/7.5MHZ Linear array probe (7.5/8.5/10.5MHz);

20R/5.0MHZ Micro-Convex array probe (4.0/5.0/5.5MHz);

13R/6.5MHZ Trans-vaginal array probe (5.5/6.5/7.5MHz);

7.5MHZ Trans-rectal probe (5.5/6.5/7.5MHz);

Video Printer

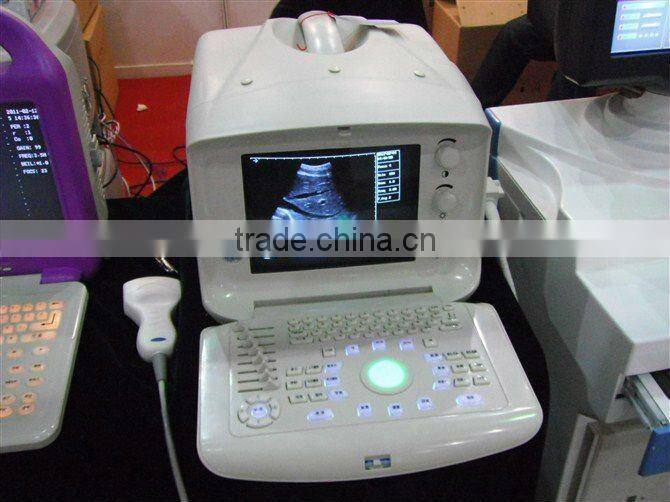

Portable Pseudo Color Ultrasound Scanner AJ-6100B

All types Probe for client's choice ,
