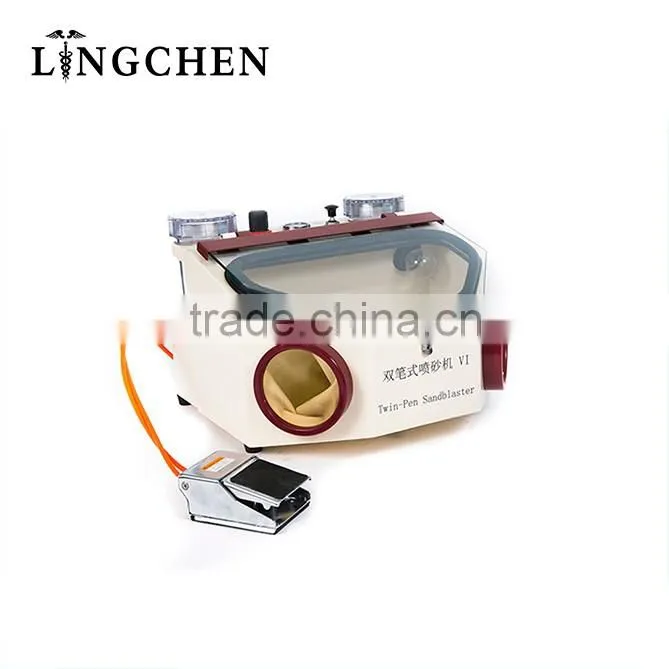

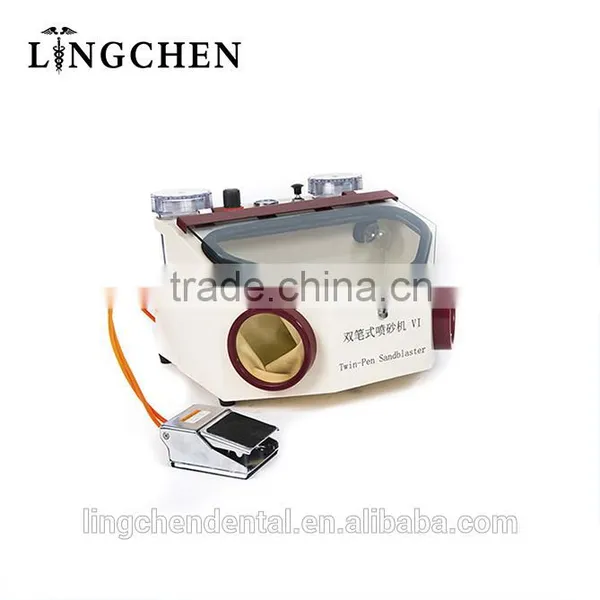

Dental factory Widely dental lab equipment sandblaster for sale with CE, ISO
Description
1. The Twin-Pen Sandblaster is used to polish the surface of porcelain crowns, it is the necessary dental equipment.

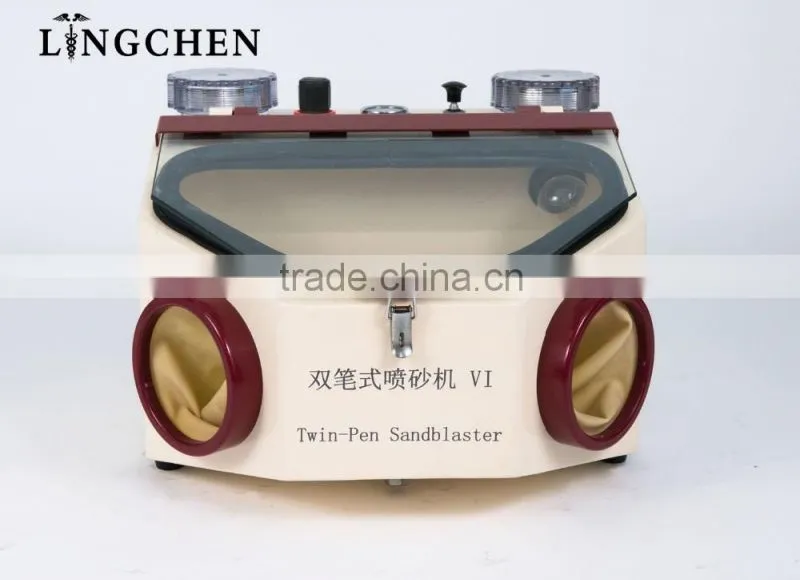

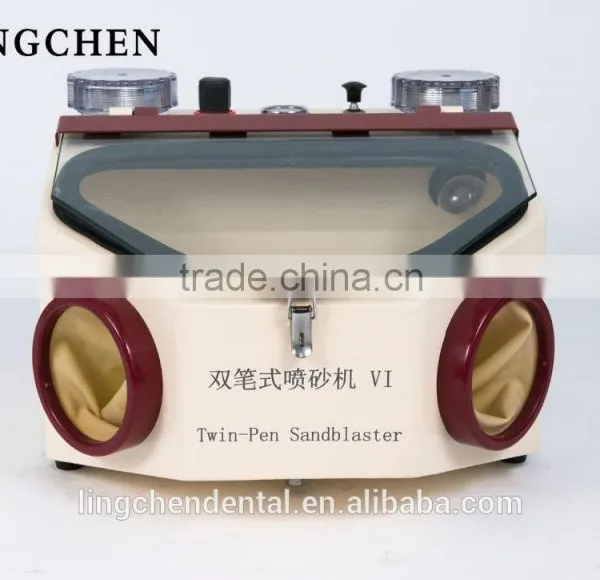

2. It has a large window, and the twin-pen can be used to polish materials of different hardness.

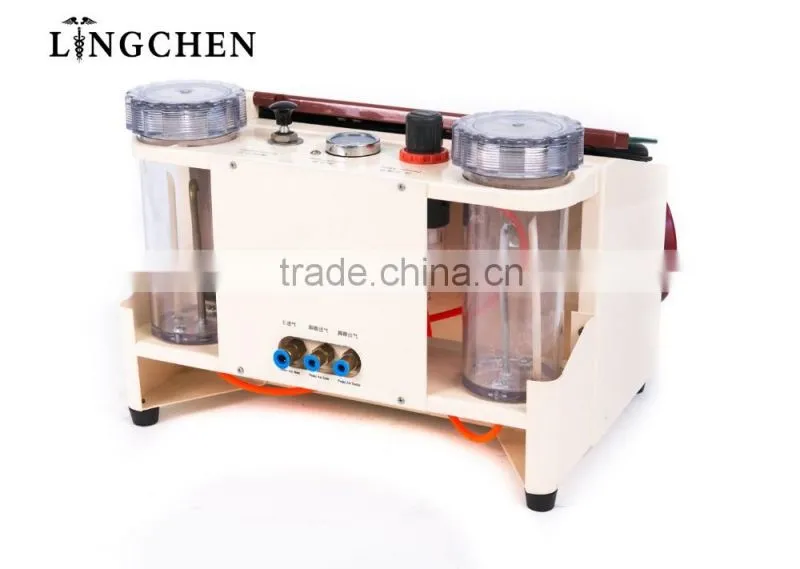

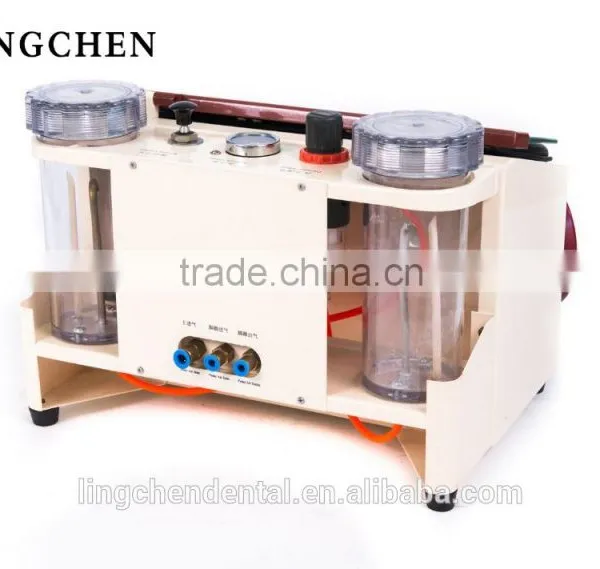

3. The transparent bottles enable users to observe the state of the sand during the sandblasting process.
4. With strong sandblasting power, smooth and accurate operations, and it is easy to repair.
Technique Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: <8W
Working Pressure: 4Kg/cm
sand Tank: two Tank
Handpiece: Twin Pencil
Nozzle: Replaceable
Nozzle Materials: Carbide/Ceramic
Nozzle Diameter: 1.2mm/0.8mm
Particles Size: 120µm/50µm
Optional Accessories:Dust Extractor
Dimensions: 28cm × 42cm × 40cm (H W D)
Shipping Dimensions: 36cm × 47cm × 49cm (H W D)
Weight: 18kg
The advantages are: strong sandblasting power, smooth and accurate operations, and it is easy to repair. This sandblaster is a necessary tool for polishing surface of porcelain crowns in dentistry.
Instruction
1. Check if all the accessories are inside the carton after unpacking. Read user manual carefully before use.
2. Connect all the tubes and accessories.
3. Plug in the air supply pipe after set up valves of the sandblaster. ( pressure>4kg/cm, amount of air supplied≥80L/min )
4. Put quartz sand (120 meshes) into the machine. It is advised that
sand in the container be less than ½ of the container capacity.
5. Turn on the light and the power on the right.
6. Put the casting into the working chamber from the observation window. Hold the casting aside. The distance between the casting and the nozzle should be within10mm.

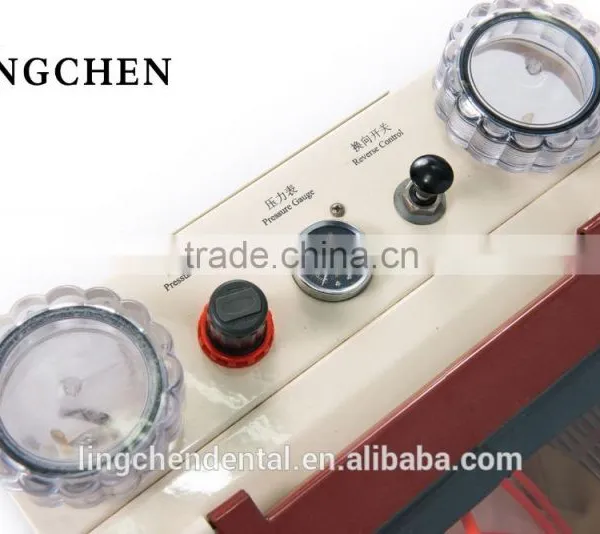

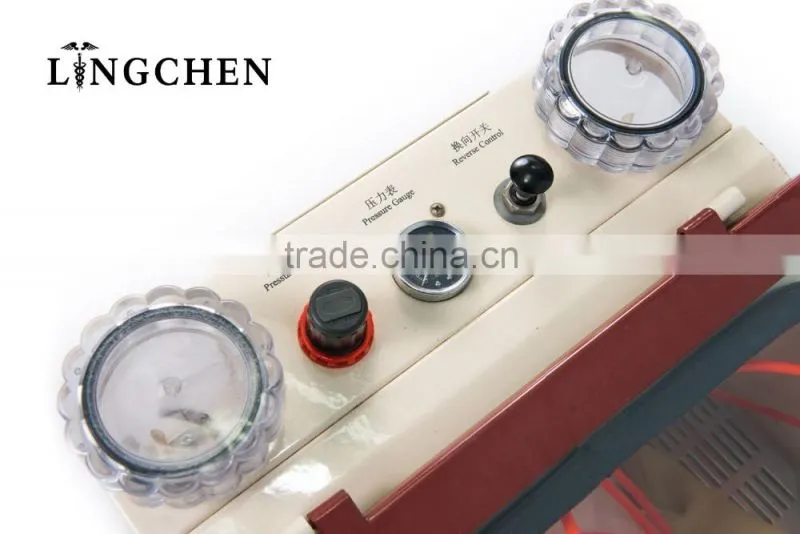

7. Step on the foot pedal to activate the sandblaster; and the sand will spout out from the nozzle.(Control the sand spouting by pulling or pushing the black button on the right)
8. Move foot away from the foot pedal after the casting surface polishing is done; the sand will stop spouting out. Open the observation window and take out the polished casting. Turn off the power supply after use.
Cautions
1. While changing sand, clean the cap of the bottle and the thread of the cap with a brush, make sure the lid is tightly closed.
2. The sand for use must be 120 meshes or greater than or equal to 120 meshes. The blasting nozzles are consumable accessories. Replace them if they are worn out.
3. Do not step on the foot switch while operating the directional valve in case that the sand enter the directional valve.
4. Remove the air the tube from the sandcontainer if the air tube is jammed. Clean the tube with air.
5. Remove the screw at the bottom of the machine when clearing up the chamber. Lift the machine to let out the used sand.
6. Get rid of the dust constantly to avoid poor electric contact which may cause .
7. Do not reuse the sand in case the used sand jam the tube.
Details:

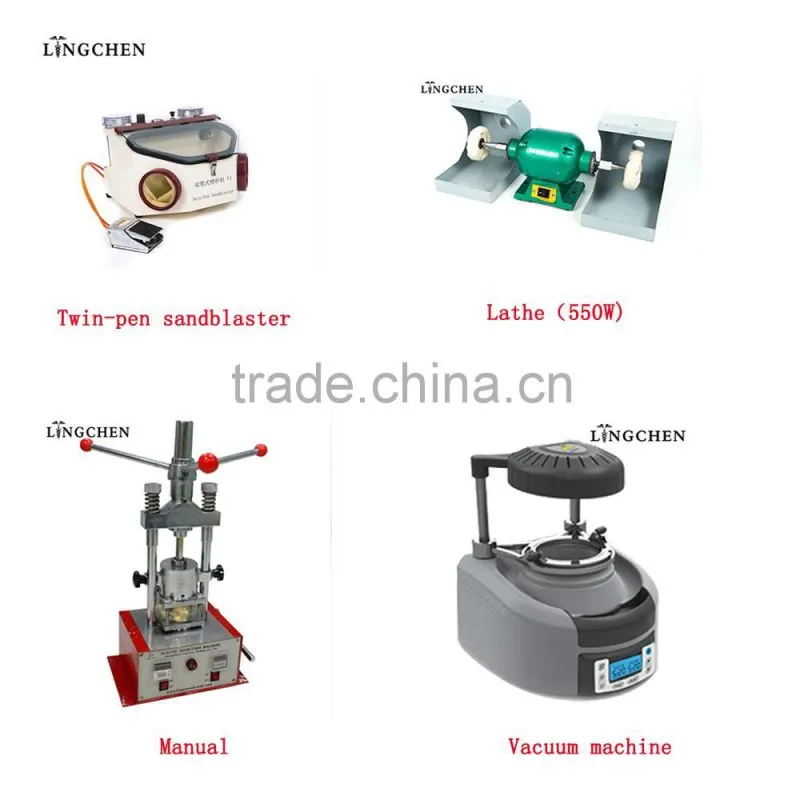

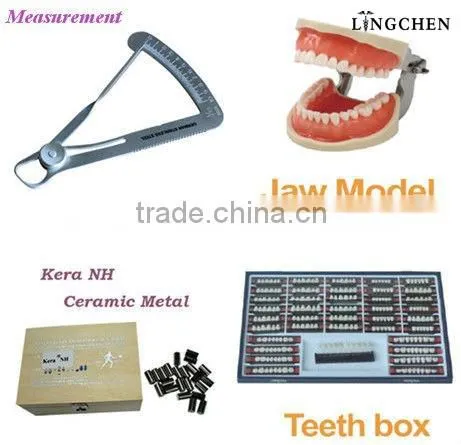

Other Lab products:
Click here back to home: https://img13.fr-trading.com/
We are Guangzhou Lingchen Dental
anks for your reading!
