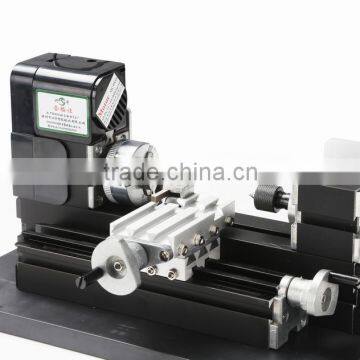

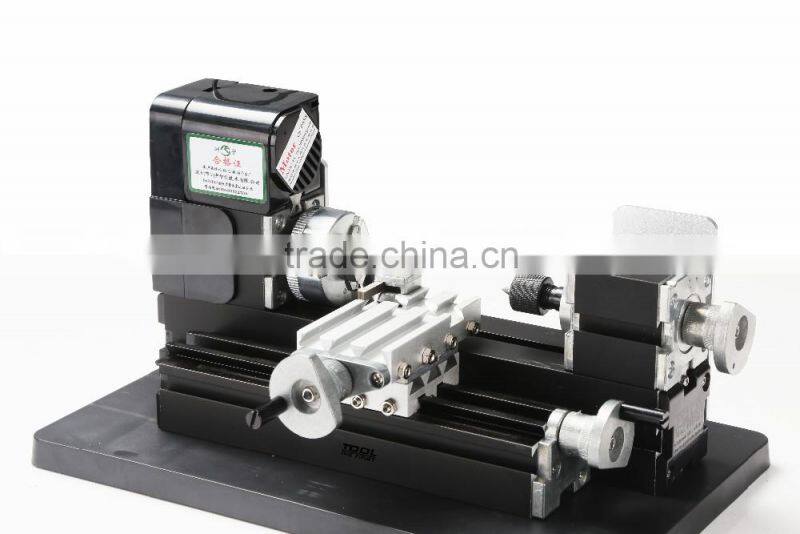

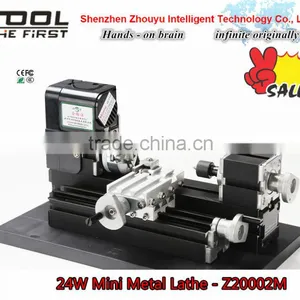

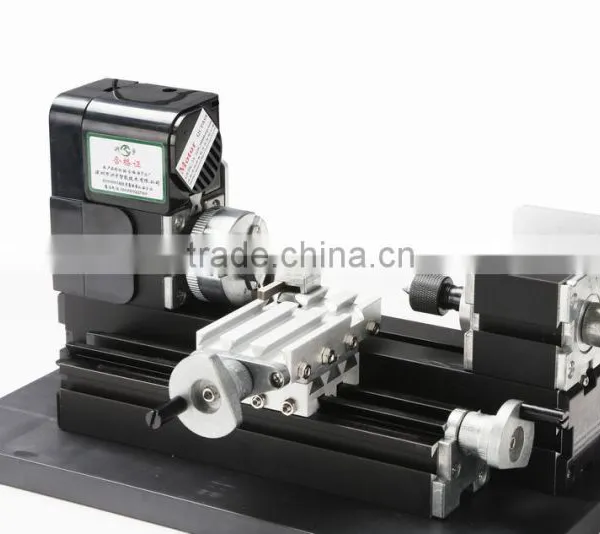

24 watts motor Mini Metal hobby Lathe Z20002M for wood working , soft metal process
Features:
1. Motor case and headstock are jointed.

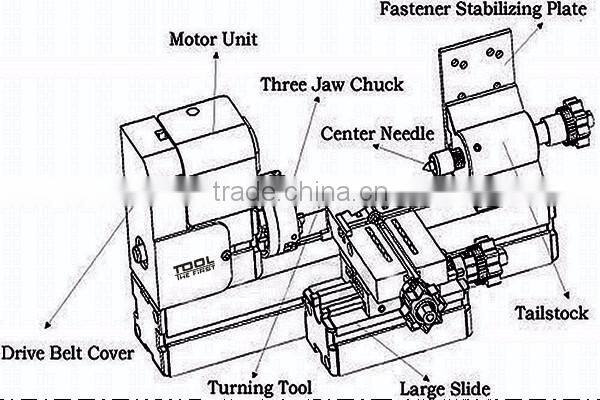

2. Main parts: headstock, tailstock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover etc.
All of the parts are made of metal except drive belt cover.
2. Center height-25mm, distance between centers-135mm, motor speed normally will drop to 2000rpm/min when it machines metal.
3. Lathe tool is made of high speed steel quality material and it can process on soft metal, nonferrous metal and precious metal.
By using central block, diameter can be expanded to 100mm.
Technical parameters:
- 1.Motor speed :20,000rpm/min(optional choice 12,000rpm/min)
- 2.Input voltage/current/power:12VDC/2A/24W
- 3.Maximum working material diameter: 20mm
- 4.Working material length:135mm
- 5.Axis Z slider travel :30mm Axis X slider travel:160mm
- 6.Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.), acrylic, plastic etc
- 7. With 0.02mm scale line ,the hand wheel increases the precision when processing
Question 1 : What Can These Mini Machines Do ?
—— You can use it as DIY modelmaking tools ,to process some little crafts ,which able to works on Hard wood ,soft metal ,alloy etc...
Question 2 : What else comes with this item in the package ?
—— Some necessary accessories such as screws ,cutting tools ,connect pieces are in good packed ,also the warranty card .

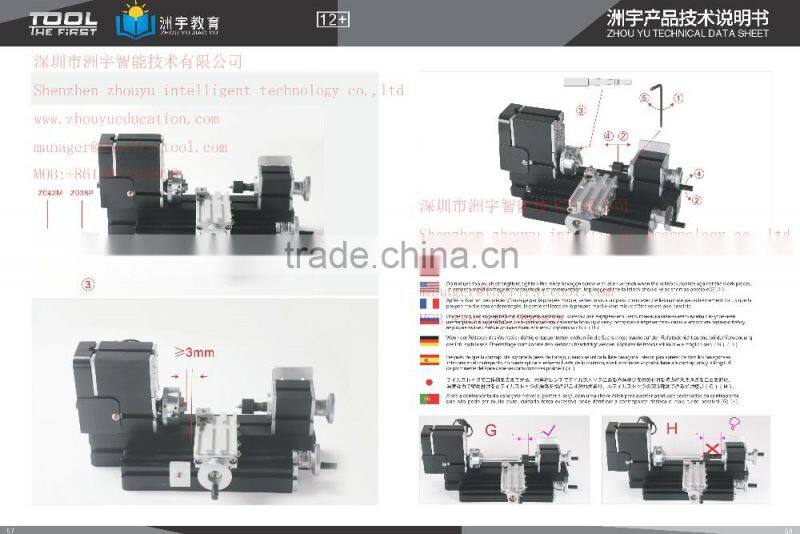

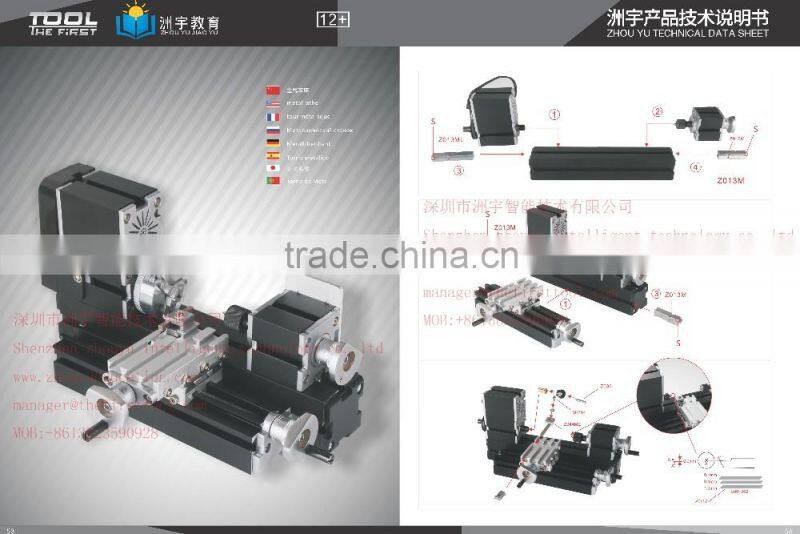

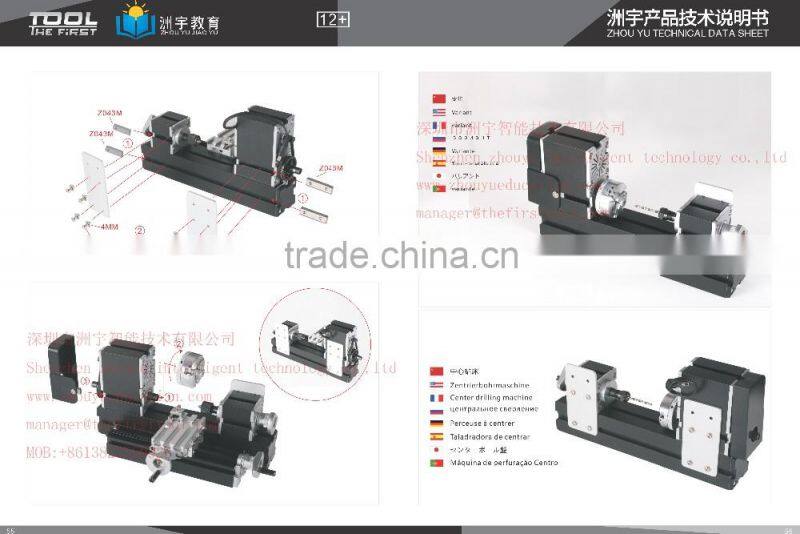

Question 3 : How to assemble this machine ?
—— Do't worry ! The machine is under 90 % installed when you grt it ,also we have assemble videos on YouTube ,please check :/channel/UCu2E1kV5TrDf8EvNbciF4SA/videos
Question 4 : Is it safe and reliable to use ???
—— Sure ,we have in this filed for more than 9 years , the products have acquired CE ,RoHS FCC , ISO9001 certificate .
