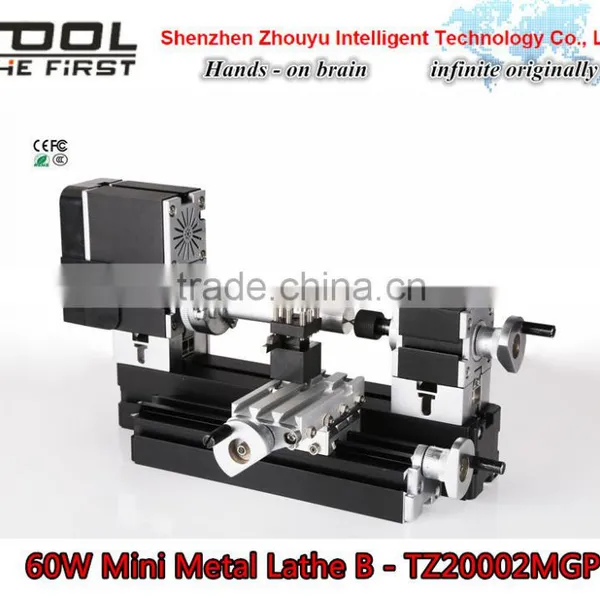

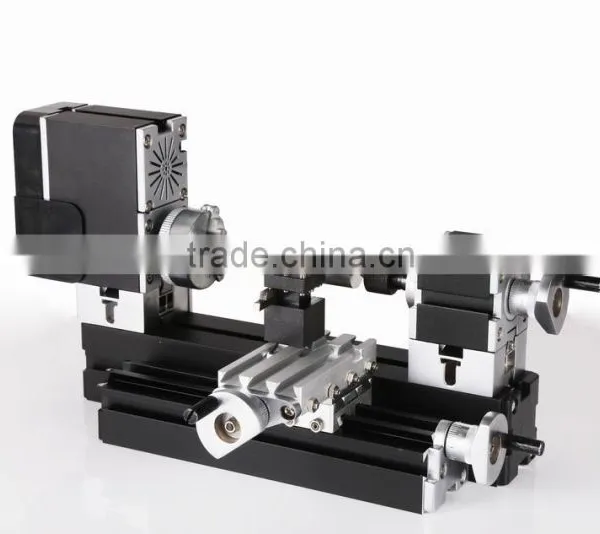

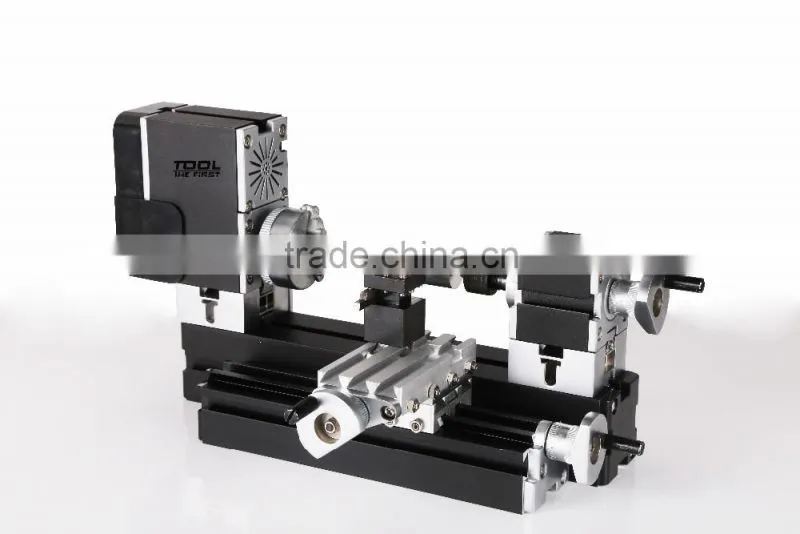

Powerful 60w motor Electroplated Mini Metal Lathe B for DIY model making,soft metal processing
Features:
1.Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.
Some parts are electroplated to make the machine more beautiful and practical.
2.Main parts: headstock, tail stock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover. All of the parts are made of metal except drive belt cover.
3.Center height- 50mm, distance between center-135mm, motor speed normally will drop to 2000rpm/min when it machines metal.
4. Lathe tool is made of high speed steel quality material and it can machine soft metal, nonferrous metal and precious metal. By using central block, diameter can be expanded to 50mm.
Technical parameters:
- 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
- 2.Input voltage/current/power:12VDC/5A/60W
- 3.Maximum working material diameter:135mm
- 4.Working material length:135mm
- 5. Working material: lignin plastic, soft metal( gold, silver, copper, aluminum etc.), acrylic, plastic etc.
- 6.With 0.02mm scale line ,the hand wheel increases the precision when processing.
- 7.Motor power :144W
- 8.Axis Z travel 145mm, Axis X travel 32mm
- 9. Acuracy of process:0.05mm,working material: soft metal (gold, silver, copper, aluminum etc.)
Question 1 : What Can These Mini Machines Do ?
—— You can use it as DIY modelmaking tools ,to process some little crafts ,which able to works on Hard wood ,soft metal ,alloy etc...
Question 2 : What else comes with this item in the package ?
—— Some necessary accessories such as screws ,cutting tools ,connect pieces are in good packed ,also the warranty card .
Question 3 : How to assemble this machine ?
—— Do't worry ! The machine is under 90 % installed when you grt it ,also we have assemble videos on YouTube ,please check :/channel/UCu2E1kV5TrDf8EvNbciF4SA/videos
Question 4 : Is it safe and reliable to use ???
—— Sure ,we have in this filed for more than 9 years , the products have acquired CE ,RoHS FCC , ISO9001 certificate .
