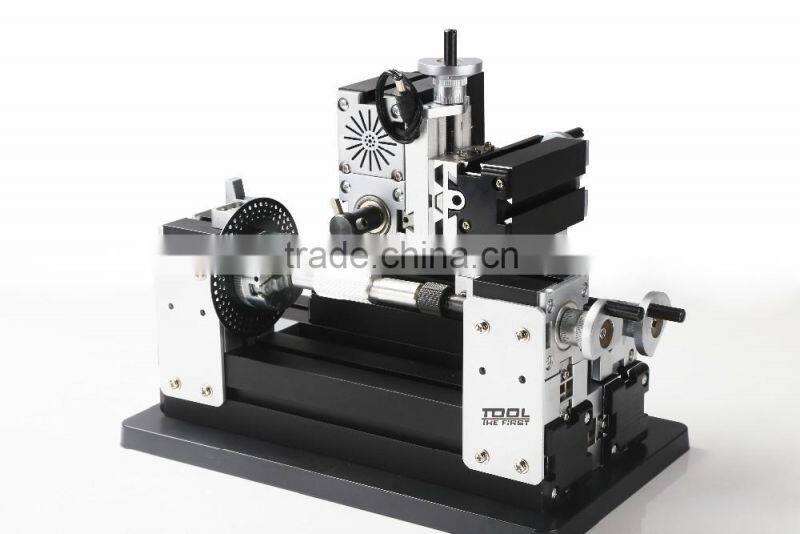

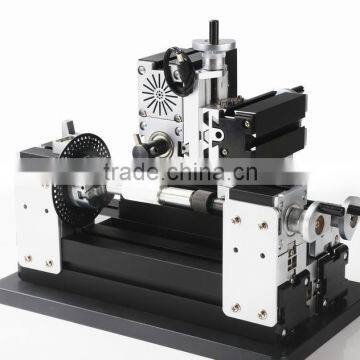

Powerful 60W Electroplated Metal Gear Milling Machine A for soft metal process , wood working ,hobby model making
Feature:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. It can machine gears.
Some parts are electroplated to make the machine more beautiful and practical.
2.Main parts: headstock, long machine bed, short machine bed ,big slider, small slider, motor blade, connection piece, dividing positioner ,gear etc. All of the parts above are made of metal.
3.By using dividing plate, we can drill the round workpiece equally.
4. There are three circles of holes on the dividing plate and each circle with the same ratio holes. The number of the holes on each circle is respectively 36,40,48. We can choose them as needed.
Technical parameters:
- 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
- 2.Input voltage/current/power:12VDC/5A/60W
- 3.Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.)
- 4.Maximum working material diameter clamped by three-jaw chuck:50mm
- 5.The transformer has over-current protection , over-voltage protection, over-heating protection .
- 6.With 0.02mm scale line ,the handwheel increases the precision when processing.
- 7.Motor power :144W
- 8.Module :0.5, accuracy:0.03-0.05mm, formula : diameter D=module0.5*number of teeth+1
- 9. Center height :50mm
- 10.Axis Z travel:32mm, Axis Y /X travel :145mm.
- 11. Working material: wood, plastic, acrylic, soft metal(gold, silver, copper, aluminum etc.)
Question 1 : What Can These Mini Machines Do ?
—— You can use it as DIY modelmaking tools ,to process some little crafts ,which able to works on Hard wood ,soft metal ,alloy etc...
Question 2 : What else comes with this item in the package ?
—— Some necessary accessories such as screws ,cutting tools ,connect pieces are in good packed ,also the warranty card .
Question 3 : How to assemble this machine ?
—— Do't worry ! The machine is under 90 % installed when you grt it ,also we have assemble videos on YouTube ,please check :/channel/UCu2E1kV5TrDf8EvNbciF4SA/videos
Question 4 : Is it safe and reliable to use ???
—— Sure ,we have in this filed for more than 9 years , the products have acquired CE ,RoHS FCC , ISO9001 certificate .
