Factory Price Square Led Light Panel for Home and Office
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| LED Light Source | SMD 2835 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC 90-264V | Lamp Power(W) | 36 | |
| Lamp Luminous Flux(lm) | 2700 | Lamp Luminous Efficiency(lm/w) | 75 | |
| Color Temperature(CCT) | Other, CW 6000-6500K | Working Temperature(℃) | 20, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP40 | Certification | CE, SAA | |
| Place of Origin | Guangdong, China | Brand Name | TTF | |
| Model Number | TTF-PL3030 |
Product Description
Factory price square led light panel for home and office
Features of Led Panel Light:
- Use high brightness LED SMD 2835/SMD5630.
- Adopt the Light Guide Plate, light transmission rate more than 80%, photosynthetic efficiency > 75 lm/W.
- Environment protecting:Without infrared, ultraviolet, no thermal effect, not contain harmful toxic substances.
- Brightness: bright light plane output, wider light Angle, light without dark space.
- Ultra-thin ultra-light:Professional structure and appearance design.
- 6063 aluminum alloy frame, brighten silver processing, good heat dissipation, look more upscale.
- 50000 hours long life.

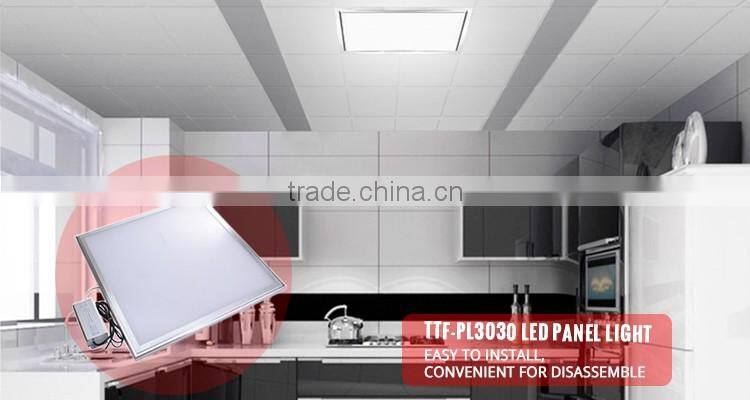

Show of Led Panel Light

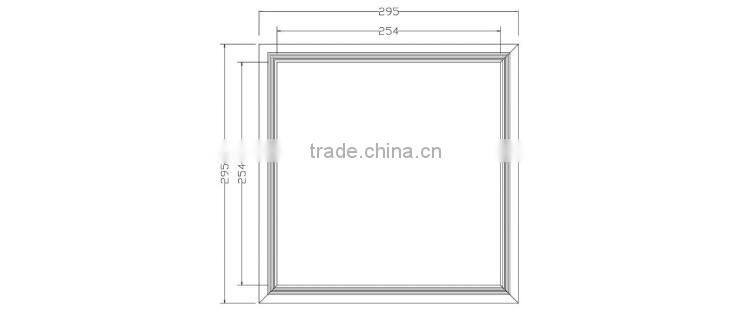

Product Size of Led Panel Light
Note:Size of the unit:mm
Electrical / Photometry Characteristics of Led Panel Light:
Parameter | The feature description | |
Input Voltage: | AC 90-264V | |
Input Power: | 12W 18W 24W 36W | |
Lumen Output | 12W 840 lm 18W 1260 lm 24W 1728 lm 36W 2700 lm | |
lighting efficiency | 12W 70 lm/w 18W 70 lm/w 24W 72 lm/w 36W 75 lm/w | |
color | White ,RGB, Other colors | |
Color temperature | WW 2800-3200K NW 4000-4500K PW 5000-5500K CW 6000-6500K | |
Color Rendering Index | ≥75 | |
LED Quantity | 2835 | 18W 96 PCS 36W 192 PCS |
5630 | 12W 24 PCS 18W 48 PCS 24W 48 PCS 36W 96 PCS | |
LED Type | Lumenmax 5630 Lumenmax 2835 | |
Life time | >50000 Hours | |
Operating Temperature | -20ºC — 45ºC | |
Storage Temperature | -20ºC — 60ºC | |
Net Weight | 1.35KG | |
Gross Weight: | 1.65KG | |
IP | IP40 | |

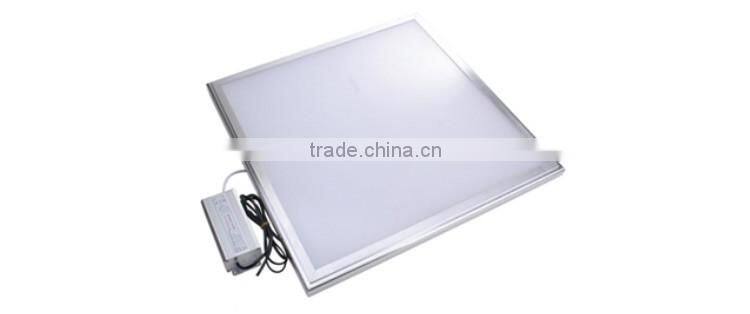

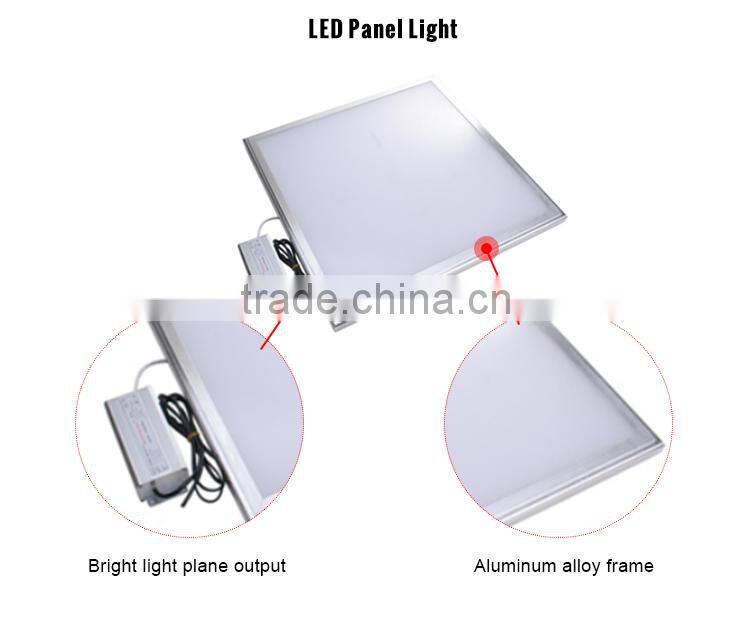

Details of Led Panel Light

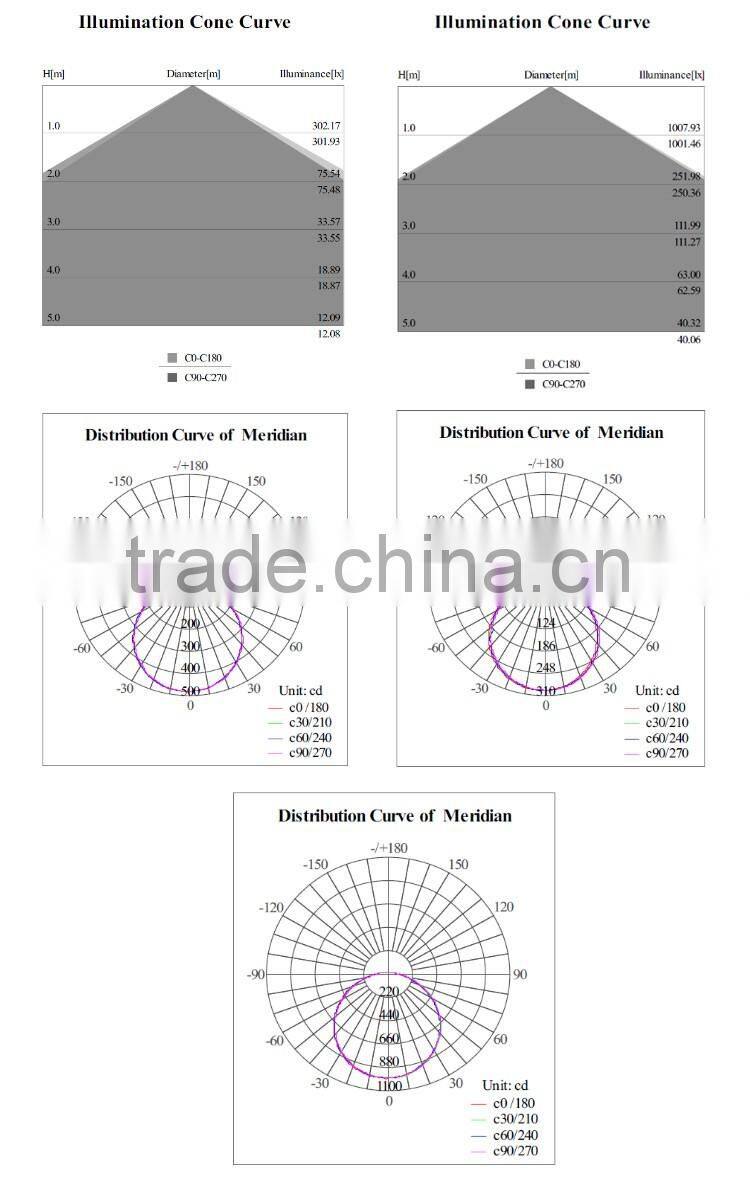

Light distribution curve and Lux of Led Panel Light
Certificates of Led Panel Light

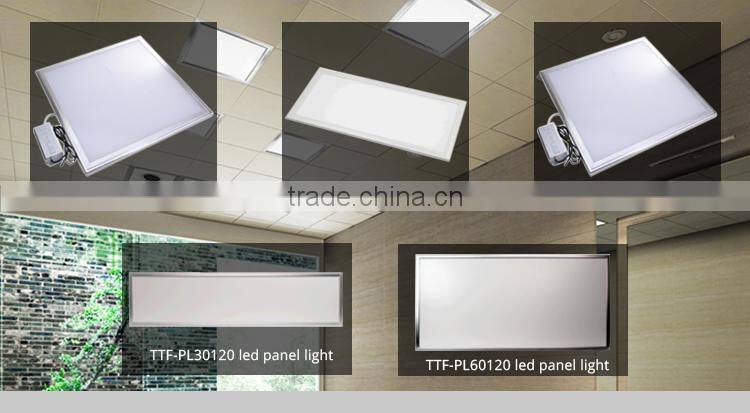

Application of Led Panel Light
Commonly used in hotel, meeting room, factory or office commercial, residential or public facilities, schools, hospitals and other lighting.

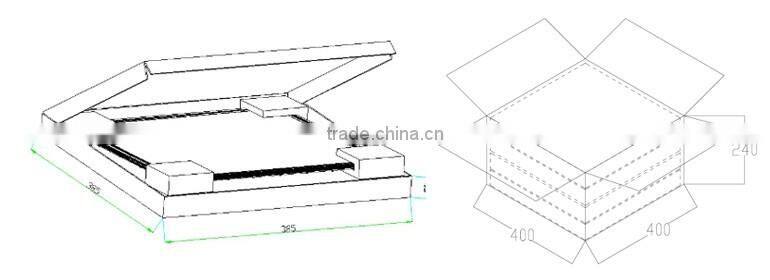

Packing of Led Panel Light
- Inner carton packing: 385×385×55mm 1pcs
- Net Weight: 1.35KG Gross Weight: 1.65KG
- Carton packaging: 400×400×240mm 4pcs
- Net Weight: 6.6KG Gross Weight: 7.35 KG
- 4 PCS/carton

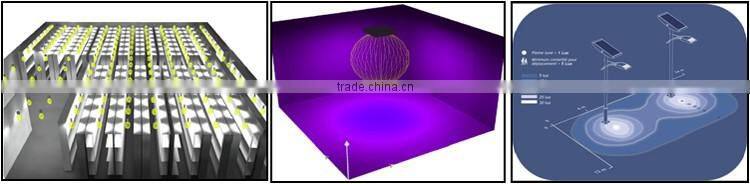

We can run Dialux program to design the lighting for the projects as client's requirement.
Shenzhen titanfu industrial co., Ltd. is a trading company which is specialized in selling series of LED lighting products, such as LED flood light, LED high bay light, LED down light, LED panel light, LED tube light etc., and the partners we are cooperating with have ten to twenty years’ industrial experience. We have passed ISO9001 quality management system standard in 2000 and our products passed certification of CE, RoHS, FCC, SAA and UL.
