Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > RoHS SAA CE Ultra Thin High Brightness 72W Led Ceiling Panel Light

RoHS SAA CE Ultra Thin High Brightness 72W Led Ceiling Panel Light

RoHS SAA CE Ultra Thin High Brightness 72W Led Ceiling Panel Light thumbnail-1
RoHS SAA CE Ultra Thin High Brightness 72W Led Ceiling Panel Light photo-1
US$ 20 - 70 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD 2835
Warranty(Years):
3
Input Voltage(V):
AC 90-264V
Contact Supplier Request Quote Chat Now
Shenzhen Titanfu Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 2835
Warranty(Years) 3
Input Voltage(V) AC 90-264V
Lamp Power(W) 72
Lamp Luminous Flux(lm) 5700
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, CW 6000-6500K
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating Other, IP40
Certification CE, SAA
Place of Origin Guangdong, China
Brand Name TTF
Model Number TTF-PL30120

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

Product Description

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

Features of Led Panel Light:

  1. Use high brightness LED SMD 2835/SMD5630.
  2. Adopt the Light Guide Plate, light transmission rate more than 80%, photosynthetic efficiency > 75 lm/W.
  3. Environment protecting:Without infrared, ultraviolet, no thermal effect, not contain harmful toxic substances.
  4. Brightness: bright light plane output, wider light Angle, light without dark space.
  5. Ultra-thin ultra-light:Professional structure and appearance design.
  6. 6063 aluminum alloy frame, brighten silver processing, good heat dissipation, look more upscale.
  7. 50000 hours long life.

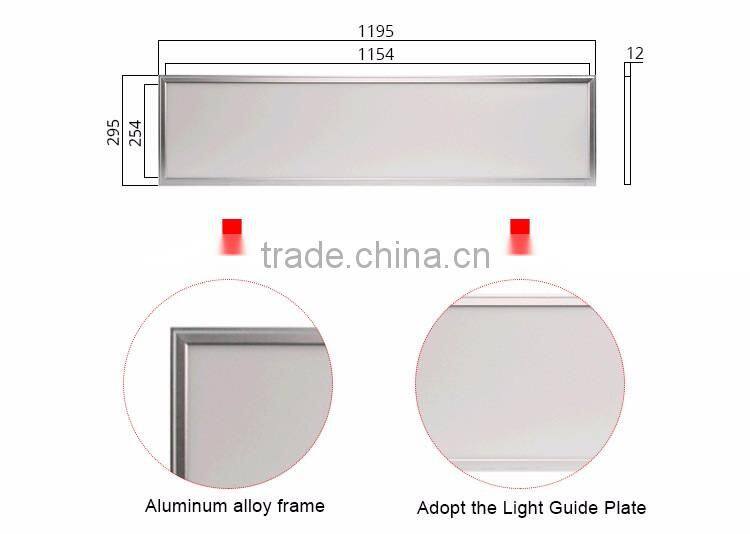

Show of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

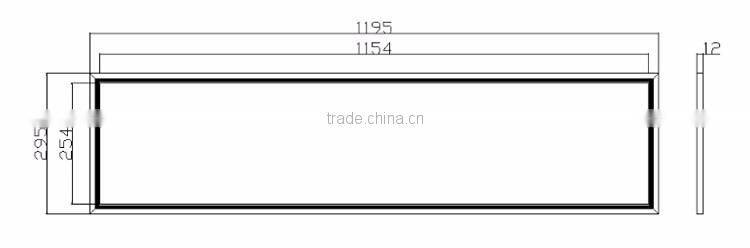

Product Size of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

Note:Size of the unit:mm

Electrical / Photometry Characteristics of Led Panel Light:

 Parameter

The feature description

Input Voltage:

AC 90-264V

Input Power:

36W          48W         54W          72W

Lumen Output

36W 2880 lm            48W 3800 lm

54W 4300 lm            72W 5700 lm

lighting efficiency

36W 80 lm/w            48W 80 lm/w

54W 80 lm/w            72W 80 lm/w

color

White ,RGB, Other colors

Color temperature

WW 2800-3200K       NW 4000-4500K

PW 5000-5500K       CW 6000-6500K

Color Rendering Index

≥75

LED Quantity

2835

36W 192 PCS      48W 242 PCS     54W  288 PCS

72W 384 PCS



5630

36W 88 PCS       48W 110 PCS     54W 120 PCS

72W 176 PCS

LED Type

Lumenmax 5630        Lumenmax 2835

Life time

>50000 Hours

Operating Temperature

-20ºC —  45ºC

Storage Temperature

-20ºC —  60ºC

Net Weight

3.9 KG

Gross Weight:

4.5 KG

 IP

IP40

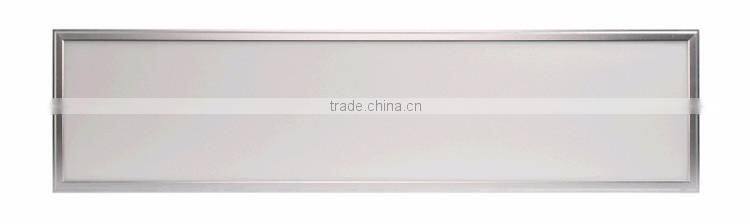

Details of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

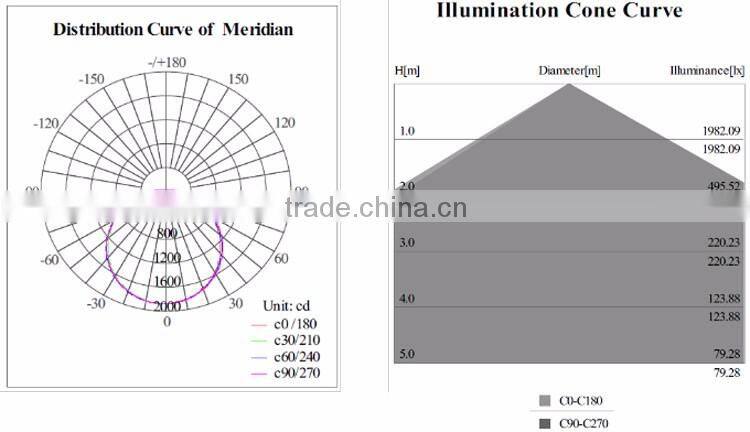

Light distribution curve and Lux of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

Certificates of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

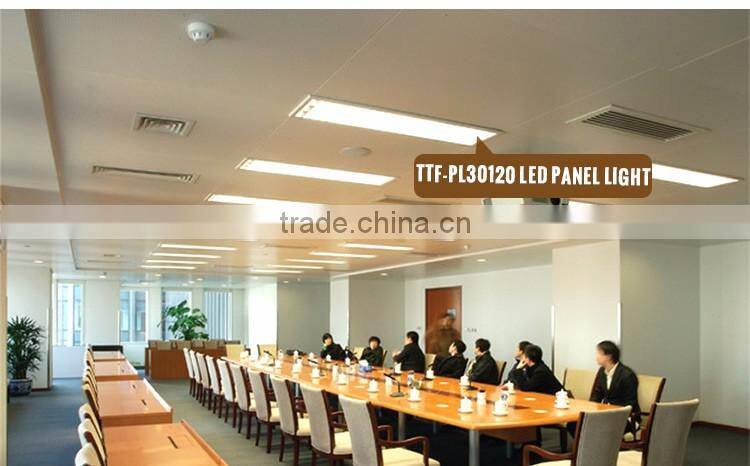

Application of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

Commonly used in hotel, meeting room, factory or office commercial, residential or public facilities, schools, hospitals and other lighting.

Packaging & Shipping

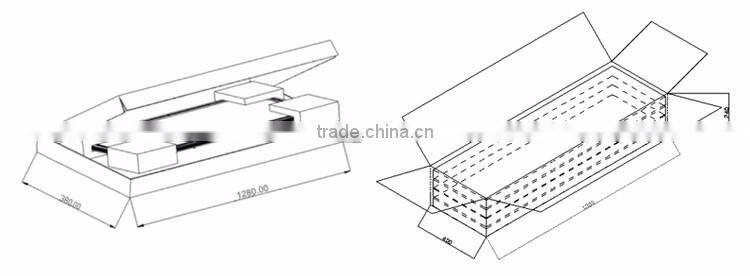

Packing of Led Panel Light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

  • Inner carton packing: 1280×380×55mm 1pcs
  • Net Weight: 3.5KG Gross Weight: 4.9KG
  • Carton packaging: 1300×400×240mm mm 4pcs
  • Net Weight: 19.6KG Gross Weight: 21.8 KG
  • 4 PCS/carton
Our Services

We can run Dialux program to design the lighting for the projects as client's requirement.

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

Company Information

        Shenzhen titanfu industrial co., Ltd. is a trading company which is specialized in selling series of LED lighting products, such as LED flood light, LED high bay light, LED down light, LED panel light, LED tube light etc., and the partners we are cooperating with have ten to twenty years’ industrial experience. We have passed ISO9001 quality management system standard in 2000 and our products passed certification of CE, RoHS, FCC, SAA and UL.

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light

RoHS SAA CE ultra thin high brightness 72W led ceiling panel light
