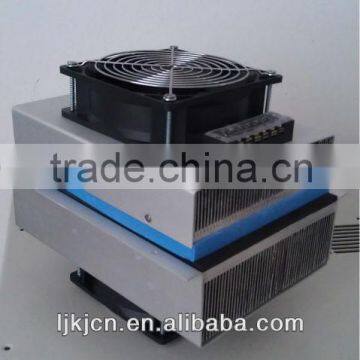

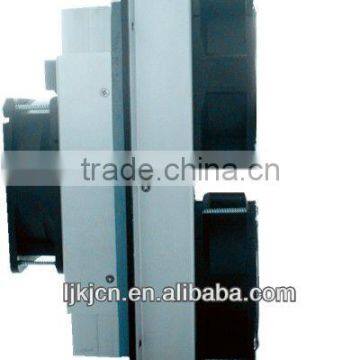

200W 48VDC IP55 Mini Outdoor Telecom Cabinet Peltier Thermoelectric Cooler

Thermoelectric cooler

Scope:

Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet,battery cabinet,industry control cabinet,precision instrument,telecommunication parts,medicine equipment,military equipment,etc.

Working principle:

Thermoelectric cooler is cooling equipment consists of semi-conductor.The inner sealed circuit is composed of the two different metal traverses X and Y.

After it is powered,heat on cool end is transferred to hot end,which leads to the temperature drop of cool end and temperature rise of hot end.And switch between hot end and cool end can be completed by changing electrode.

Characteristics:

1.Adopt semi-conductor to complete electronic cooling.

2.Mini-shape and light.

3.Without compressor and Freon.Environment-friendly,no vibration,no leak.

4.Use Environment-friendly materials,which meet RoHs requirements.

5.No installation direction limitation.Can be applied to many occasions.

6.Normal working ambient temperature is -10°C to + 50°C.

7.Use high density and thermal insulation foam to fill the cool end and hot end of the cooling equipment.

8.The temperature of Overheat protector of radiator at hot end is set at +75°C±5°C.

9.Applicable to the sealed, vibrant, and rotary occasions on which compressor cannot work.

10.Heating and cooling can be changed automatically.

11.Except for fan, since there are no fatiguing or breaking machine parts,it is the most long-lasting,reliable method of cooling.

12.Alarm output to monitoring system.

13.Interchangeable and visual display service adapter.

14.Automatic self start after power recovery.

Radiation way:

This equipment adopts high density Aluminum fin and forced convection of blower to transfer heat.The red is hot air circulation (outside circulation),and the blue is cold air circulation (inside circulation).And the two circulation systems are isolated by high density and thermal insulation foam.

Performance curve:

Different environmental temperature makes obvious impacts on cooling capacity of thermoelectric cooler.

The following is performance curve of four different models of thermoelectric cooler:

Technique Data Sheet:

Related products:

Side mount industrial cabinet air conditioner

 Door mount industrial cabinet air conditioner

Top mount industrial cabinet air conditioner

Suzhou Langji Technology Co.,Ltd,the manufacturer of precision air conditioner provides competitive price,high-quality products and best service for you.

              More details,pls contact us without hesitation!
