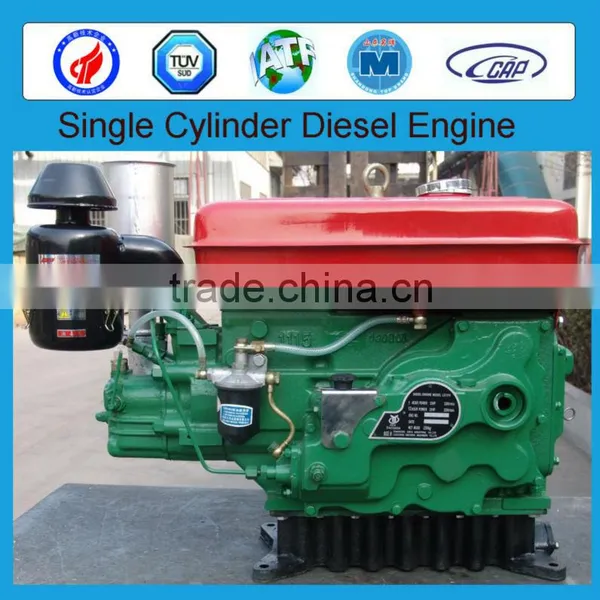

Xinya Diesel Engine Single Cylinder SD1110 SD1100B

Name: Xinya Diesel Engine Single Cylinder SD1110 SD1100B
Brand: XINYA
SKU: 101748489
Availability: InStock

US$ 185 - 265 MOQ: 84 Sets

Key Specifications

Type:

Other, diesel engine

Use:

Other, farm machinery

Place of Origin:

Shandong, China

Shandong Liaocheng Yitong Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Type Other, diesel engine

Use Other, farm machinery

Place of Origin Shandong, China

Brand Name XINYA

Model Number SD1110 SD1100B

Specifications

1 specialization in production
2 short delivery
3 quality guarancee
4 competitive price

Model Specification		Unit	SD195	SD1100	SD1100B	SD1105	SD1110	SD1110L	SD1115
Type		Horizontal type, single, cylinder, four-stork, water-cooling
Cylinder diameter × stroke		mm	95×115	100×115	100×115	105×115	110×115	110×125	115×125
Displacement		L	0.815	0.903	0.093	0.996	1.093	1.18	1.298
Model of combustion chamber			Swirl chamber			Direct-injection
Compressure chamber			19~20	20	20	16.5	16.5	17.5	17.5
Power	1 Hour Power	kw/r(min)	9.7/2200	12.1/2200	12.1/2200	13/2200	14.7/2200	16.17/2200	17.6/2200
Power	12 Hour Power	kw/r(min)	8.8/2200	11/2200	11/2200	11.76/2200	13.2/2200	14.66/2200	16.2/2200
Specific fuel consumption		g/kw.h	≤262.5	≤262.5	≤262.5	≤250.2	≤250.2	≤250.2	≤250.2
Specific oil consumption		kg/h	≤0.024	≤0.030	≤0.030	≤0.032	≤0.036	≤0.040	≤0.044
Max torque		N.m	≥47.06	≥53.4	≥53.4	≥57.1	≥64.1	≥71.4	≥78.7
Lubricating method		Combined pressure and splashing
Cooling method		Water-cooling or hopper cooling
Starting method		Hand Cranking or electric starting
Net weight		Kg	195	200	200	215	220	225	230
Overall dimension length×width×height		mm	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820x530x750
Overall dimension length×width×height		mm	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	880x530x750
