Specifications
1.SD type/ LD type/ KM type diesel engine2.single cylinder diesel engine
3.low price
4.best service
5.fast delivery
| Diesel Engine Specification |
1. single cylinder diesel engine for agriculture
2.195kg to 230kg net weight
able goods
4.stable performance
5.low price with high quality
6.welcome to our factory buy diesel engine
Yt diesel spare parts
Shandong liaocheng Yitong Import&Export Trading Co.,Ltd is located in the beautiful Chinese water city-Liaocheng. It has a 43 years history in manufacturing fuel injection parts.We specialise in developing and producing fuel injection pumps, fuel injectors, precision parts of fuel systems, such as nozzles , plungers , delivery valves, rotor heads used on passenger buses, trucks, tractors, agricultural and earthmoving machines, stationary and marine engines.
We have advanced equipments and technique, full testing machines, very strong technical capabilities. And we have large production scale and morden management.
Our products enjoy good sales in the USA, Europe, Africa,the Middle east and Souhteast Asia and East Asia. What’s more we have a good reputation with our clients.
Moreover we have many kinds of packing, such as wax,plastic nylon,color boxes and other materials to meet clients’ demands.
Any question please don’t hesitate to contact me.
We welcome all the customers and will give you the best price, best quality and best service.
| Diesel Engine Details |
| The Model of SD Diesel Engine | |||||||||
| Model specification | Unit | ||||||||
| SD195 | SD1100 | SD1100B | SD1105 | SD1110 | SD1110L | SD1115 | |||
| Type | Horizontal type, single, cylinder, four-stork, water-cooling | ||||||||
| Cylinder diameter × stroke | mm | 95×115 | 100×115 | 100×115 | 105×115 | 110×115 | 110×125 | 115×125 | |
| Displacement | L | 0.815 | 0.903 | 0.093 | 0.996 | 1.093 | 1.18 | 1.298 | |
| Model of combustion chamber | Swirl chamber | Direct-injection | |||||||
| Compressure chamber | 19~20 | 20 | 20 | 16.5 | 16.5 | 17.5 | 17.5 | ||
| Power | 1 Hour Power | kw/r(min) | 9.7/2200 | 12.1/2200 | 12.1/2200 | 13/2200 | 14.7/2200 | 16.17/2200 | 17.6/2200 |
| 12 Hour Power | kw/r(min) | 8.8/2200 | 11/2200 | 11/2200 | 11.76/2200 | 13.2/2200 | 14.66/2200 | 16.2/2200 | |
| Specific fuel consumption | g/kw.h | ≤262.5 | ≤262.5 | ≤262.5 | ≤250.2 | ≤250.2 | ≤250.2 | ≤250.2 | |
| Specific oil consumption | kg/h | ≤0.024 | ≤0.030 | ≤0.030 | ≤0.032 | ≤0.036 | ≤0.040 | ≤0.044 | |
| Max torque | N.m | ≥47.06 | ≥53.4 | ≥53.4 | ≥57.1 | ≥64.1 | ≥71.4 | ≥78.7 | |
| Lubricating method | Combined pressure and splashing | ||||||||
| Cooling method | Water-cooling or hopper cooling | ||||||||
| Starting method | Hand Cranking or electric starting | ||||||||
| Net weight | Kg | 195 | 200 | 200 | 215 | 220 | 225 | 230 | |
| Overall dimension | mm | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820x530x750 | |
| length×width×height | 880x530x750 | ||||||||
| FOB price | USD | 228 | 218 | 225 | 240 | 250 | 255 | ||
Eletric starting:price add 54.5 dollars

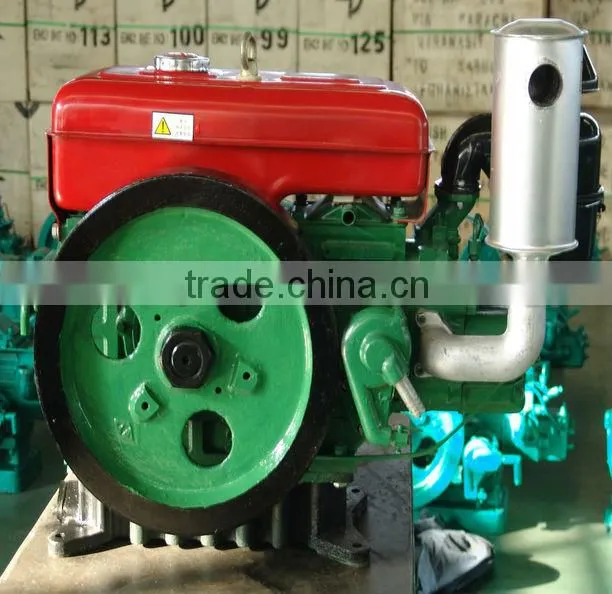

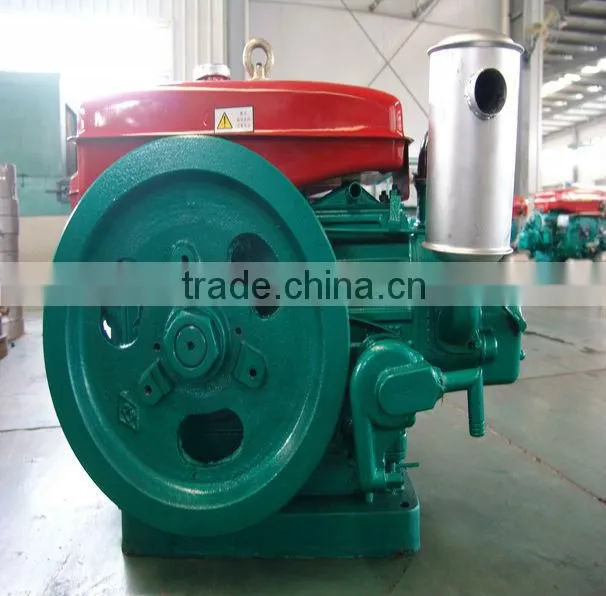

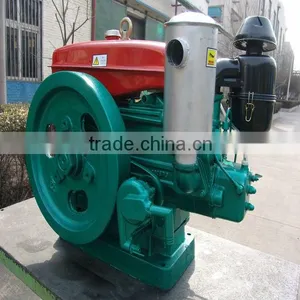

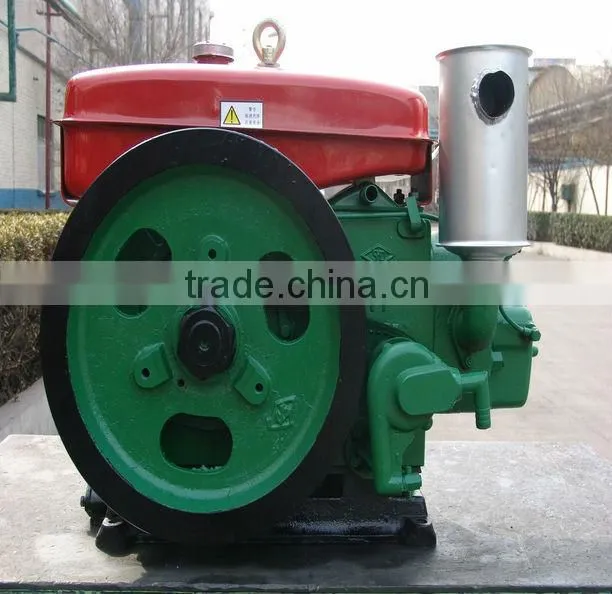

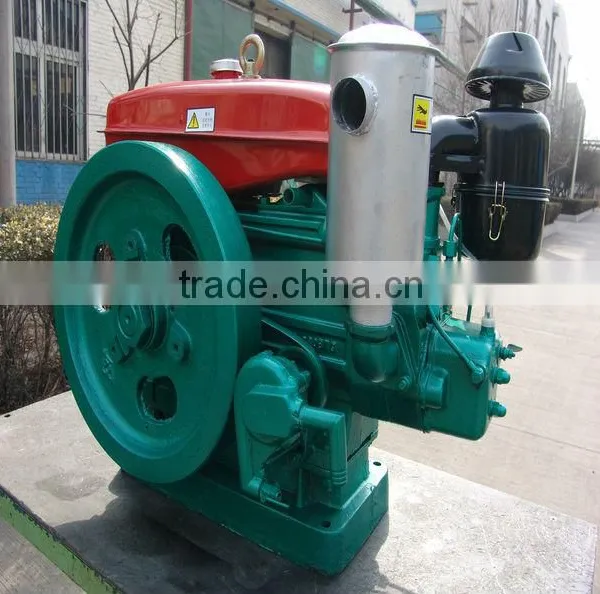

| Photo Shows for Reference |
Product Payment&Delivery Terms |
1.Sample order and min order is accepted.
2.Delivery:by TNT DHL or EMS after received payment
3.Payment terms:Westion Union, T/T,L/C.
4.Delivery time:stocked within 5 days, out of stocks within 14 days.
5.Large order depends on the production plan and will be arranged ASAP.
| Our Certification |
1.ISO9001
2.ISO9002
3.Certification of ISO/TS16949 Quality Management System.
4.Certification of Vehicle Products of CCAP.
| Order Process |
| Mission & Objective of Yitong |
1.Zero Defect Quality,Zero Customer Complaints
2.To be a best professional supplier in the line of diesel engine parts.
| Our Promises |
1.Reply to your inquiries in 3 working hours
2.Your detail requirement will be responded within 24 hours.
3.Your needs will always be treated as our our top priority.
4.Keep contacting until the goods arrived safely.
5.You can contact me any time while you have questions and demands.
More details please refer our web:
