Wafer Type Butterfly Valve With Rubber Seat
US$ 10 - 40,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BS5163 Resilient Seated NRS Gate ValveUS$ 50 - 1,000MOQ: 10 Pieces -
Standard Silencing Check ValveUS$ 35 - 2,000MOQ: 10 Pieces
-
ANSI 125/150 Resilient Seated NRS Gate ValveUS$ 50 - 1,000MOQ: 10 Pieces
-
BS5163 Rising Stem Gate ValveUS$ 50 - 1,000MOQ: 10 Pieces
-
AWWA C509 Resilient Seated NRS Gate ValveUS$ 50 - 1,000MOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Medium Pressure
Power
Other, manual/pneumatic/hydraulic
Material
Casting
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN50-1500mm
Place of Origin
Shanxi, China
Model Number
allwin
Brand Name
Allwin
Application
Other, water
Handle Lever Butterfly Valve
Specification:
Standard:
design standard: DIN 3394/EN 593
flange: DIN2501
top flange: ISO 5211
face to face dimension: ISO 5752-2 SERIES20
test standard: DIN3230

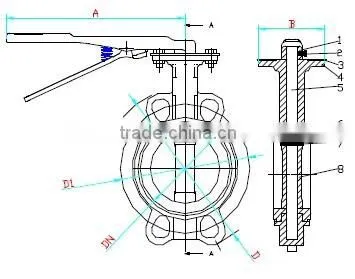

Material List:
| No. | part name | material |
| 1 | hand wheel | cast iron |
| 2 | screw | carbon steel |
| 3 | indicator | carbon steel |
| 4 | body | ductile iron |
| 5 | stem | steel /ss 416 |
| 6 | O ring | NBR |
| 7 | pin | steel |
| 8 | disc | ductile iron |
Dimensions:
large sizes can also be supplied.
Power: Manual/Hydraulic/Pneumatic
Painting: epoxy coating or as per your requirements
Color: blue,red,black or as per your requirements
Suitable temperature: -10~121°C
Applicable Medium: water, sewage, sea water, air, medicine, oil, acid,etc.
If you are intrested i our products, please contact me at any time.
