Cooking Oil Filter Machine,oil Filter Machine With Professional Manufacturer

Cooking Oil Filter Machine,oil Filter Machine With Professional Manufacturer photo-1
US$ 99 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Other, oil filter, Vertical type
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Type Other, oil filter, Vertical type
Place of Origin Henan, China
Brand Name Huahong
Model Number YTLY50
Power(W) 1.5kw
Dimension(L*W*H) Refer to specificatiuon
Weight Due to model
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.High capacity
2.Easy operation
3.Electricity saving,low noise

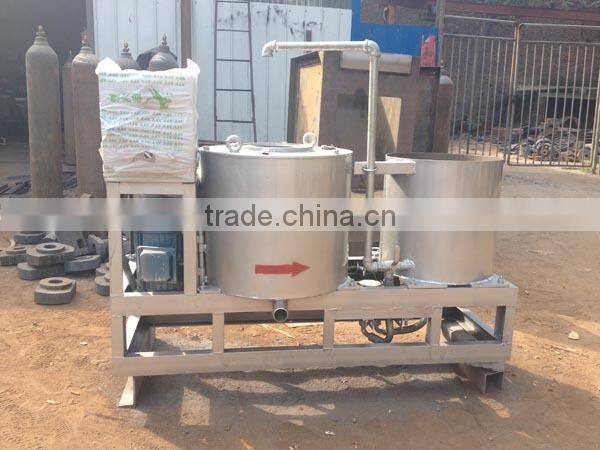

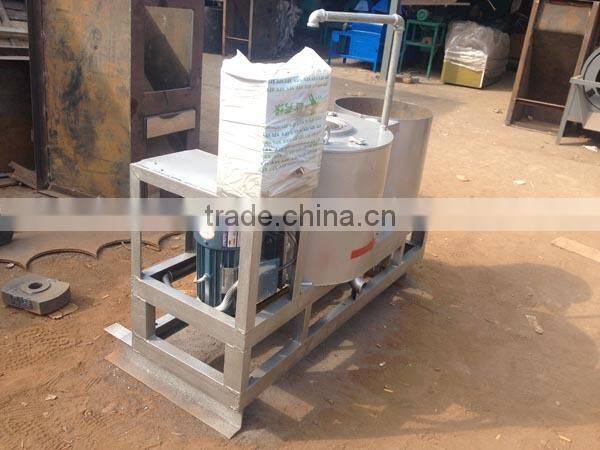

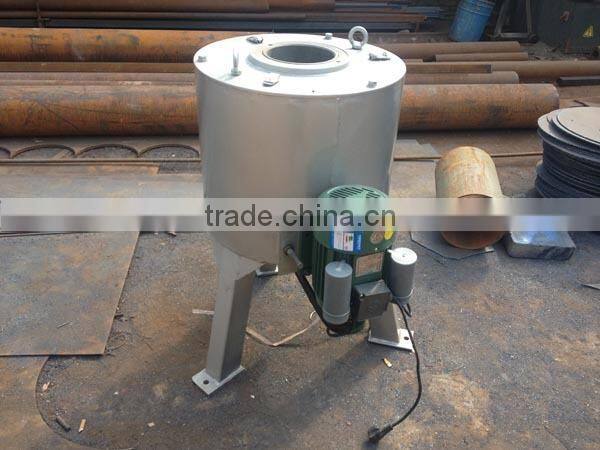

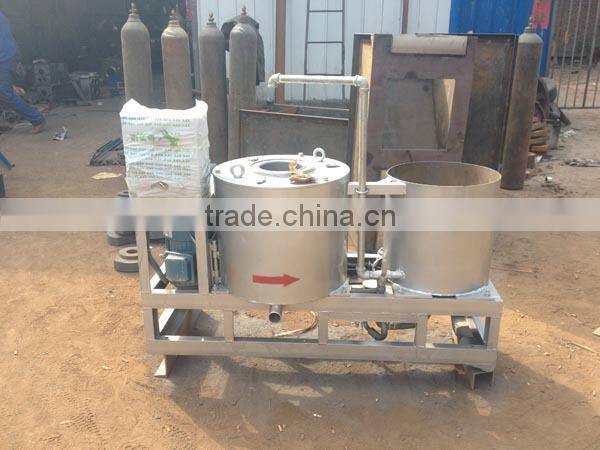

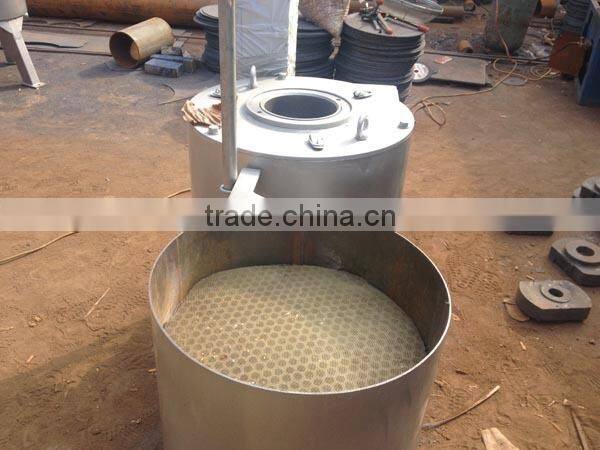

Introduction of cooking oil filter machine



This centrifugal filter oil machine separates oil from liquid and solidity,through centrifugal force of rotor drum by high speed revolution,thus the oil will be filterd in the precision filter.At the same time,the dreg in oil which needs a hydrophobization processing will put on weight by absorbing moisture,hte quality of moisture is next only to dreg,oil is the lightest.So oil,water and dreg will be separated naturally by three layers in the high speed of rotating drum wall.When the rotor drum was stopping in rotation,oil was slipped out of the surface from micro water molecules.Can be up to the purpose of filter,pure oil and directly canned for sale or direct edible.

Characteristic of cooking oil filter machine

1.high filtration speed,filter 10-15kgs oil for 425 Model in 2-4 minutes (25-35kgs oil for 500 model in same time ),just you need to clean the residue when the oil handling volume reached to 500kgs

2.no consumption of spare parts , no need washing the filter cloth

3.electricity saving,stop the power once barrate rotating speed goes into regular ,then use the centrifugal force to separate

Technical parameters

Model

Power(kw)

Speed(r/min)

      Drum

      diameter(mm)

Capacity(kg/h)

YTLY50-a type

1.5

1800

430

200

YTLY50-b type

1.5

1800

430

200

YTLY60-a type

2.2

1800

500

300

YTLY60-b type

2.2

1800

500

300



Cooking oil filter machine,oil filter machine with professional manufacturerCooking oil filter machine,oil filter machine with professional manufacturerCooking oil filter machine,oil filter machine with professional manufacturerCooking oil filter machine,oil filter machine with professional manufacturerCooking oil filter machine,oil filter machine with professional manufacturerCooking oil filter machine,oil filter machine with professional manufacturer

Cooking oil filter machine,oil filter machine with professional manufacturer



1.We provide perfect and convenient after sales service,such as technical support and training, send exports t



o install and adjust machines till them work properly,etc.



2.If you have any problems, we would do our best to solve them as soon as possible,or even send our enginee



rs to your work site.



3.Welcome to send us e-mails to get more information about our company and products.

 Cooking oil filter machine,oil filter machine with professional manufacturer
