Home > Construction & Decoration > Prefabricated Building > Home Garage > Carport Canopy

Carport Canopy

Name: Carport Canopy
Brand: SHIDAI
SKU: 101710137
Availability: InStock

US$ 1 - 20 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SHIDAI

Model Number:

FCS

Contact Supplier Request Quote Chat Now

Guangzhou Curtain Times Decoration Materials Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SHIDAI

Model Number FCS

Frame Material Metal

Metal Type Aluminum

Frame Finishing PVC Coated

Pressure Treated Wood Type Heat Treated

Sail Material PVC

Sail Finishing PVC Coated

Specifications

1)fabric circulation traction system
2)small tension,ordinary fabrics
3)fashion and attractive

Principle Introduction

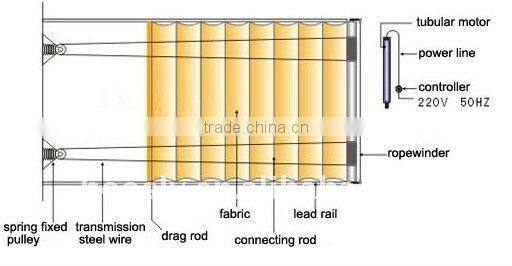

FCS canopy is the abbreviation of Fabric Circle System, the meaning is fabric circulation traction system, made up of the transmission mechanism, fabric system and control system. One side of the transmission part for power, tubular motor rotate the reel pipe and ropewinder to release the wire rope. The other side of the transmission parts is fixed pulley, transmission wire rope through the pulley for reversing, make the two ends of a piece of wire rope fixed on ropewinder together and stay tight. The upper part of fabric fixed and tighten two or more wire rope (change for lead rail when big span). Fabric is installed transverse connecting rod from top end, equant spacing. Connecting rod is installed the pulley, pulley is rolling on the fixed steel wire, fabrics drag rod connects with transmission wire rope, driven by the pipe(motor) ,fabric is opening and closing along fixed rope wire. Because the tension of this system is small, you can choose the ordinary fabrics.

System Control

According to the different situations, can choose different manual switch control,infrared remote control, wireless remote control and intelligent control. Control mode can single control and group control.
