Specifications
high retention and long time service life.designed for medium and high speed writing and printing paper machine
Huading Net Industry Co., Ltd. is a modern enterprise specializing in the manufacture of papermaking screens and stainless steel screens. Through many years' hard work, our company has grown into a well-known enterprise, covering an area of 20, 000sqm, equipped with a modern facility of 5000sqm. We have over 100 sets of art equipment and a team of well-qualified senior technical and managerial personnel.
technical parameter

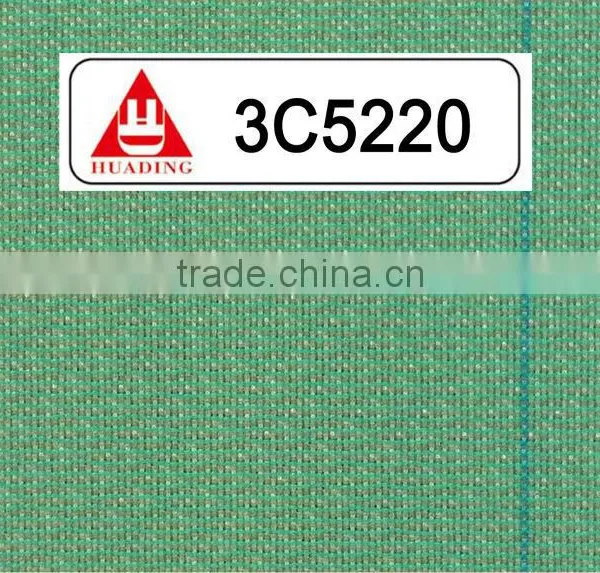

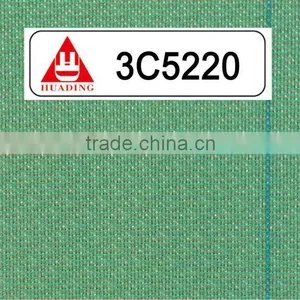

| Name | 3C5220 |
| Material&Diameter |
Warp:polyester monofilament yarn(0.13mm) |
|
Weft:polyester monofilament yarn(0.13mm/0.30mm) | |
| Density(counts/cm) | Warp:52 |
| Weft:72 | |
| Tensile strength(N/cm) | Farric:≥900 |
| Seam:≥540 | |
| Elogation(%)@50N | ≤0.5 |
| Air permeability(CFM@127pa) | 350 |
Usage and character:
Applicable for forming of paper making, include writing paper; printing paper; board paper; kraft paper and tissue etc.
Type 3C5220 is used for low gram weight writing paper; printing paper; newspaper; chrome paper; offset paper and tissue paper forming, it's specially design for high speed paper machine.
Our multi layers forming fabric have character of smooth surface; stable structure; good abrasion resistance; perfect freeness; high retention and long time service life. it's design for medium and high speed writing and printing paper machine.
Polyster forming fabric's Processing
Warping--Buckling--Weaving--Once heat set--Twice heat set--Edge reinforcement--Packing--Finish
Treatment
We make endless seam and resin edge reinforcement for our polyester forming fabric.
Inspection
We use air permeability test apparatus for air permeability testing, and breaking force test apparatus is use for tensile strength testing.

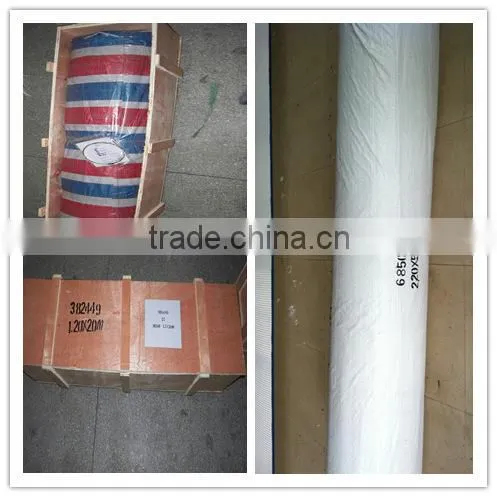

We have three types of packing, poly bag; wooden box and carton, our customers can select either one according to their request.
