Specifications
Applicable for hot air nonwoven fabric forming with good quality.

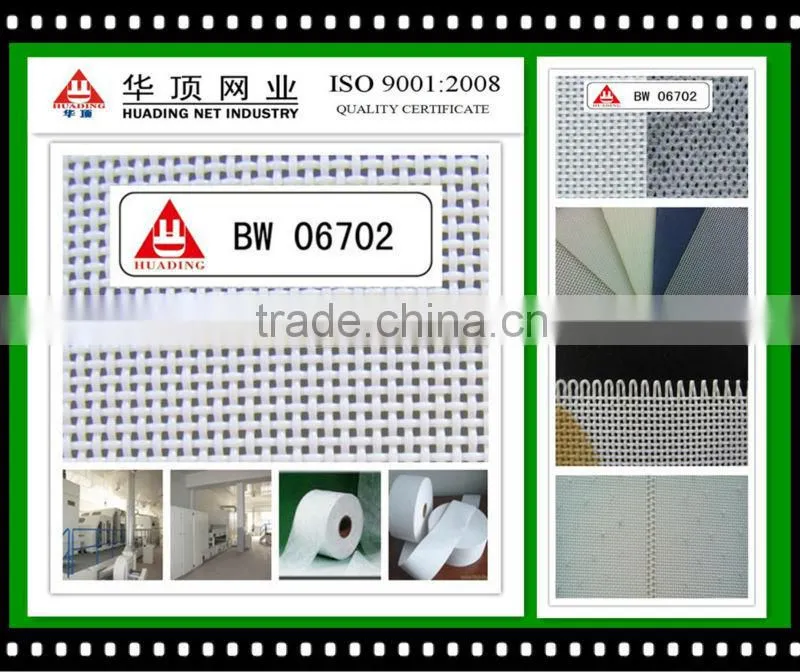

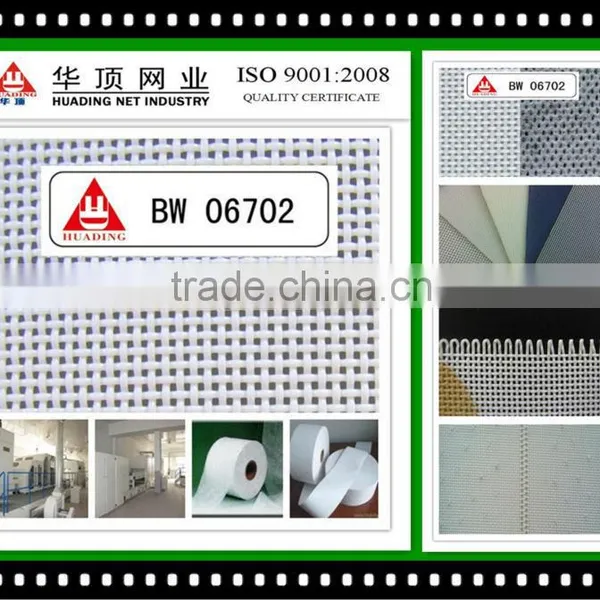

Product picture
Technical data
| Name | BW06702 |
| Material&Diameter |
Warp:polyester monofilament yarn(0.70mm) |
|
Weft:polyester monofilament yarn(0.70mm) | |
| Weight(g/m2) | 830 |
| Thickness(mm) | 1.3 |
| Density(counts/cm) | Warp:6.5 |
| Weft:6.5 | |
| Tensile strength(N/5X20cm) | Warp:4839.25 |
| Weft:5522.5 | |
| Elogation(%) | 24.43 |
| 35.4 | |
| Air permeability(L/m2.S) | 5680 |
Where to use?
Applicable for hot air nonwoven cloth forming.
Advantage
1.The diaper and hygienic material widely used in our life is made by hot air nonwoven cloth, our hot air nonwoven belt is design for hot air nonwoven cloth forming.
2.In hot air nonwoven cloth productive process, it will cause static, we will do anti-static treatment for our hot air nonwoven belt, so the fiber will not adhere to our belt. can increase of service life.
3.We make self pin joint for our hot air nonwoven belt, it's easy to install in hot air nonwoven machine and the joint is very strong.
Processing
Warping--Buckling--Weaving--Once heat set--Twice heat set--Edge reinforcement--Packing--Finish
Treatment

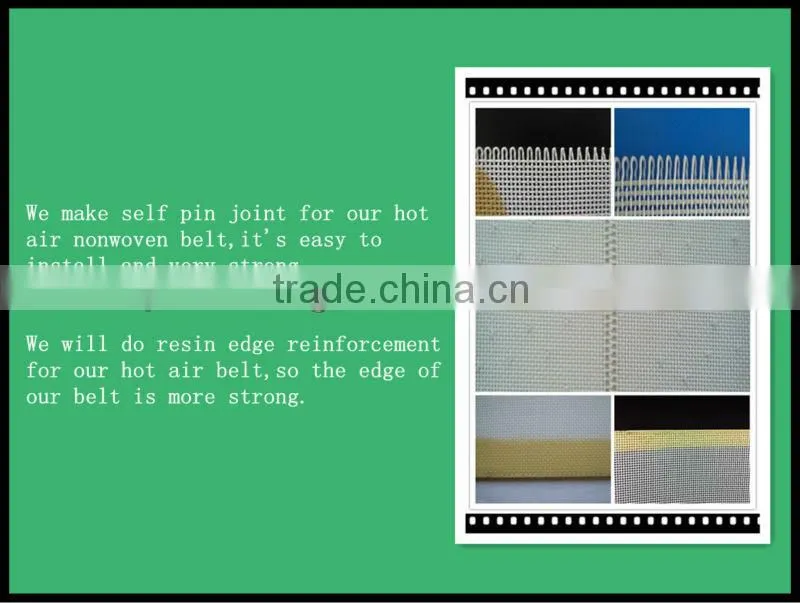

We make self pin joint and resin edge reinforcement for our hot air nonwoven belt.
Inspection
We use air permeability test apparatus for air permeability testing, and breaking force test apparatus is use for tensile strength testing.
Packing
We have three types of packing, poly bag; wooden box and carton, our customers can select either one according to their request.
Do you need a price? if yes,please tell us these information as below:
1.Your detailed technical requirement.
2.Your usage or application of our products.
3.Your width and length,detailed measurement.
4.Terms of shipment.
5.The packing you need for shipping.
6.Which joint you want.
7.Do you need any treatment.
Any questions, pls feel free to contact with us.
