Specifications
Applicate for spunbond nonwoven cloth forming with different air permeability
Product picture
Technical data
| Name | GW22508 |
| Material&Diameter |
Warp:polyester monofilament yarn(0.50mm) |
|
Weft:polyester monofilament yarn(0.50mm) | |
| Weight(g/m2) | 870 |
| Thickness(mm) | 1.60 |
| Density(counts/cm) | Warp:22 |
| Weft:10 | |
| Tensile strength(N/5X20cm) | Warp:6352.5 |
| Weft:5732 | |
| Elogation(%) | 29.3 |
| 43.5 | |
| Air permeability(m3/m2.h) | 12500 |
Where to use?
Applicable for spunbond nonwoven forming.

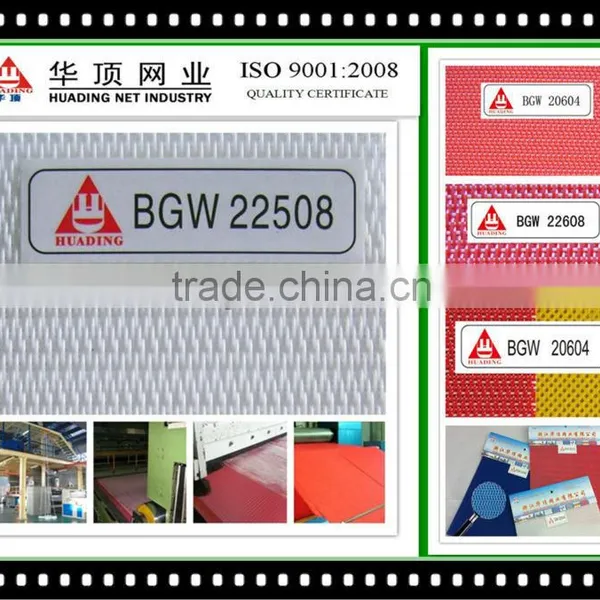

We have following types of spunbond belt, include
BGW20604;BGW22608 and GW22508.
our customer can select different types according to their different requirement about the air permeability.
Advantage
1.The reusable bags widely used is made by spunbond nonwoven cloth, our spunbond belt BGW20604; BGW22608 and GW22508 is use for spunbond nonwoven forming. it design for customer's different requirement about air permeability.
2.The raw material of spunbond nonwoven cloth is PE or PP, it will cause static during production, so we'll do anti-static treatment for our spunbond belt. we'll use anti-static wires for our belt, or do anti-static dipping for our belt. so our spunbond belt is best for our customer's selection.

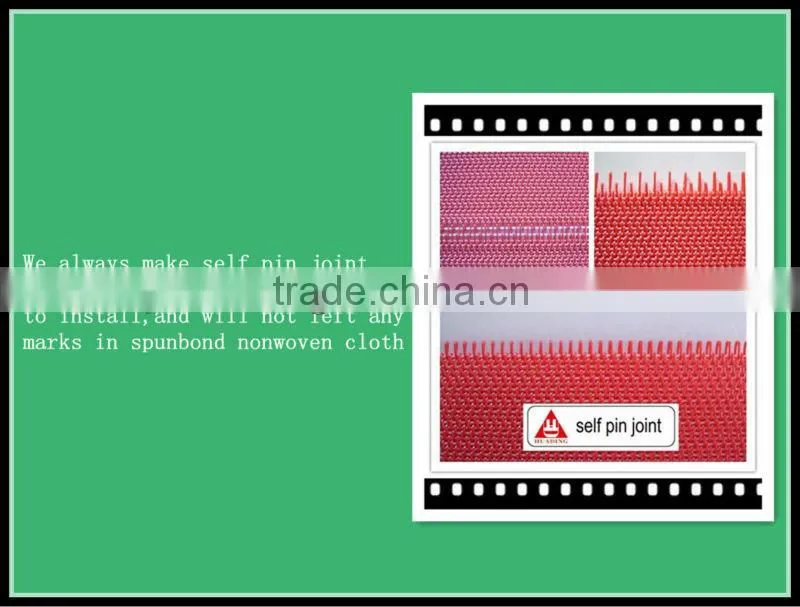

3.We make self pin joint for our spunbond belt, it's easy to install, not left any seam marks in the nonwoven cloth. the intensity can reach 100% of the fabrics.
Processing
Warping--Buckling--Weaving--Once heat set--Twice heat set--Edge reinforcement--Packing--Finish
Treatment
We make self pin joint and resin edge reinforcement for our spunbond belt.
Inspection
We use air permeability test apparatus for air permeability testing, and breaking force test apparatus is use for tensile strength testing.
Packing
We have three types of packing, poly bag; wooden box and carton, our customers can select either one according to their request.
Do you need a price? if yes,please tell us these information as below:
1.Your detailed technical requirement.
2.Your usage or application of our products.
3.Your width and length,detailed measurement.
4.Terms of shipment.
5.The packing you need for shipping.
6.Which joint you want.
7.Do you need any treatment.
Any questions, pls feel free to contact with us.
