Specifications
High quality; competitive price and long service life.Specialized in SMS(spunbond-meltbrown-spunbond)production line.
Technical data
| Name | BGW20604 |
| Material&Diameter |
Warp:polyester monofilament yarn(0.38mmx0.58mm) |
|
Weft:polyestermonofilament yarn(0.60mm) | |
| Weight(g/m2) | 760 |
| Thickness(mm) | 1.33 |
| Density(counts/10cm) | Warp:204 |
| Weft:70 | |
| Air permeability(L/m2.S) | 3230 |
| Bursting strength(N/5x20cm) | Warp:5889.25 |
| Weft:4815 | |
| Elogation(%) | Warp:22.6 |
| Weft:34.2 |
Usage
BGW20604:specialized in forming of SMS(spunbond-meltbrown-spunbond)production line.
Advantage
Our polyester forming fabric BGW22604 made by red flat polyester yarn, it can increase the contact surface of our fabric and spunbond nonwoven cloth. so the nonwoven cloth formed by our cloth will be more smoothly. our polyester forming fabric use the hydrolysis resistance polyester yarn, so it can increase our service life and improve our customer's economic returns.
we always use self pin joint and endless joint for our polyester forming fabric, it's easy to install in all kinds of nonwoven production line, we also do resin edge reinforcement for our fabric, so our quality is perfect. and win good reputation from our customer all over the world.
Product picture

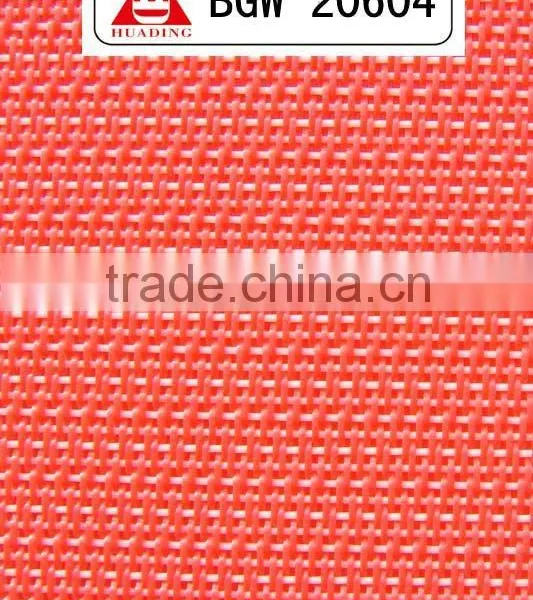

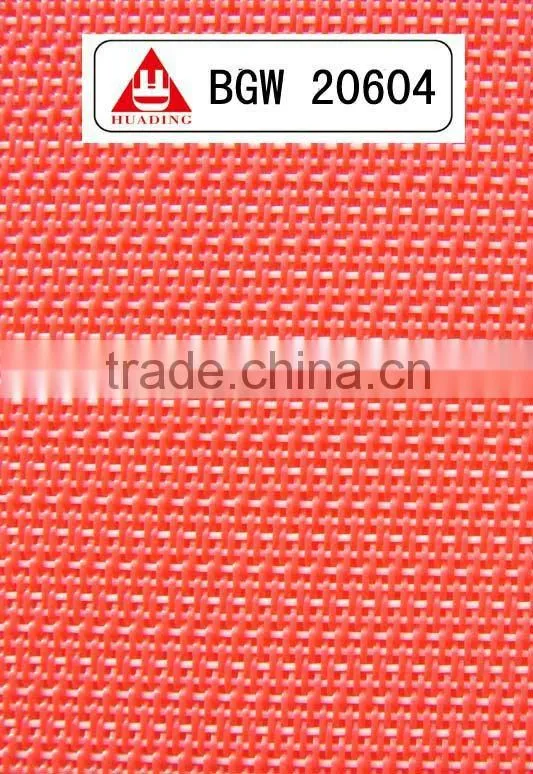

1.our polyester forming fabric BGW20604

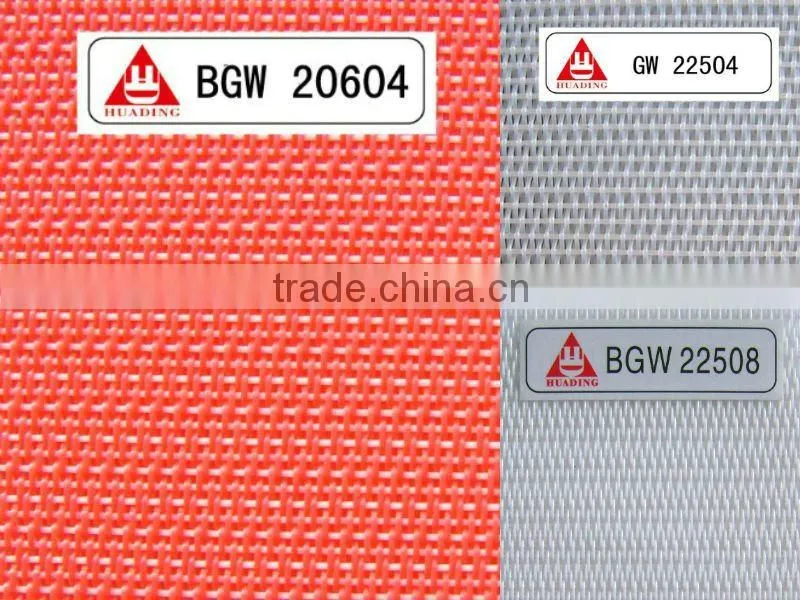

2.our BGW20604 and other polyester fabric which also can use for spunbond production line

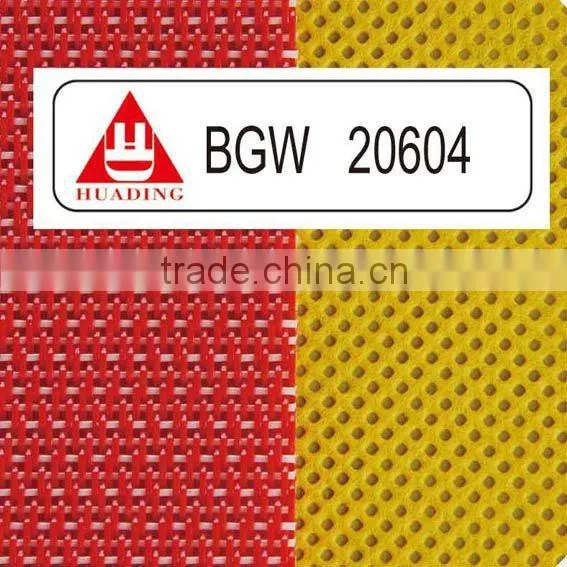

3.spunbond nonwoven cloth(the right one)which formed by our BGW20604

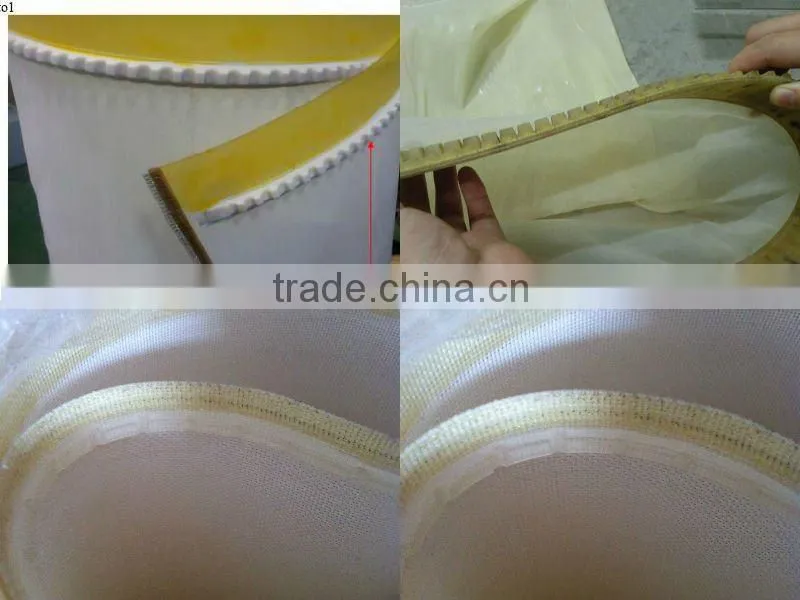

Our joint and seam

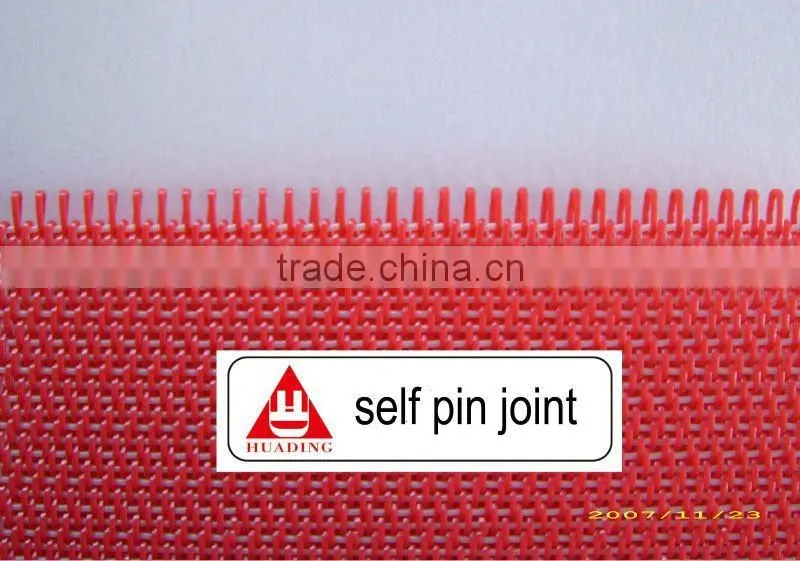

1.self pin joint(self pin joint is autofit for our BGW20604)

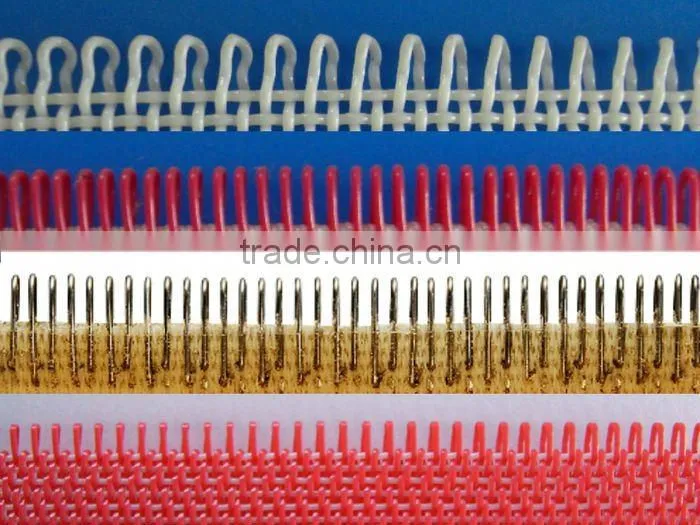

2.we have four kinds of joint
(endless joint--self pin joint--clipper joint--spiral joint)

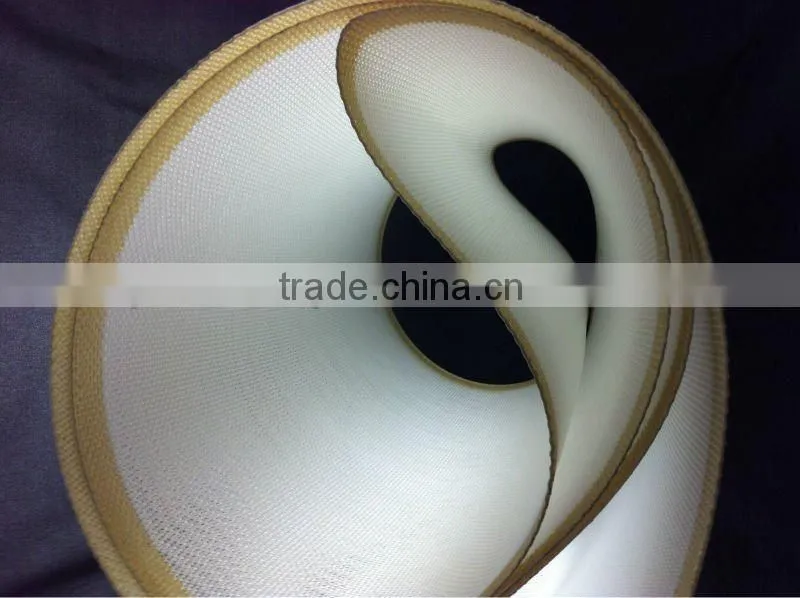

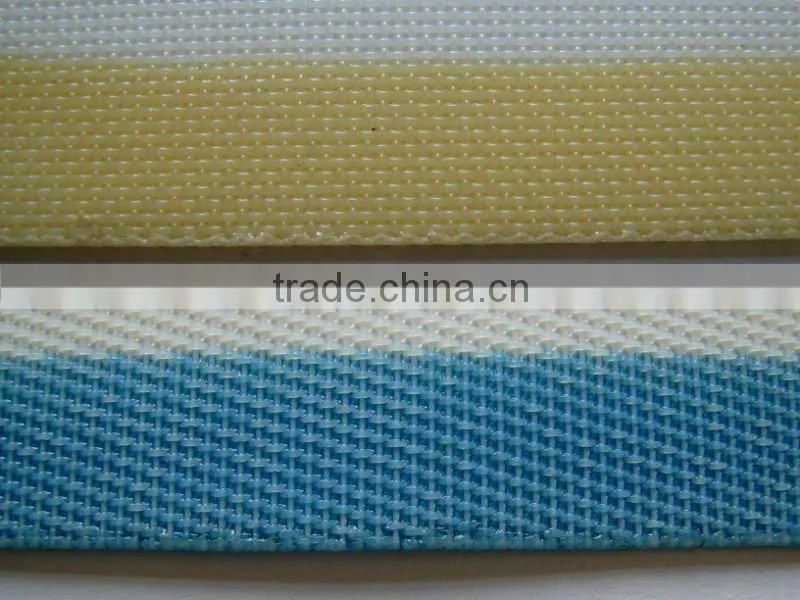

Resin edge reinforcement
(our customer can select yellow or blue color glue for their edge reinforcement)
Conducting bar reinforcement
(sometimes, our customer will request us making conducting bar to adjustment belt in their machine)

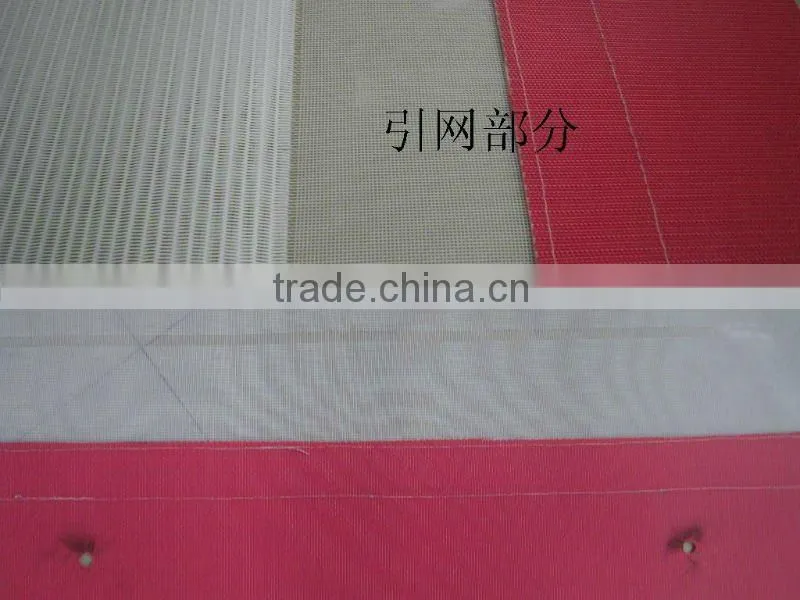

Network primer
(when our customer install our belt in their production line, they use our network primer to traction equipment)

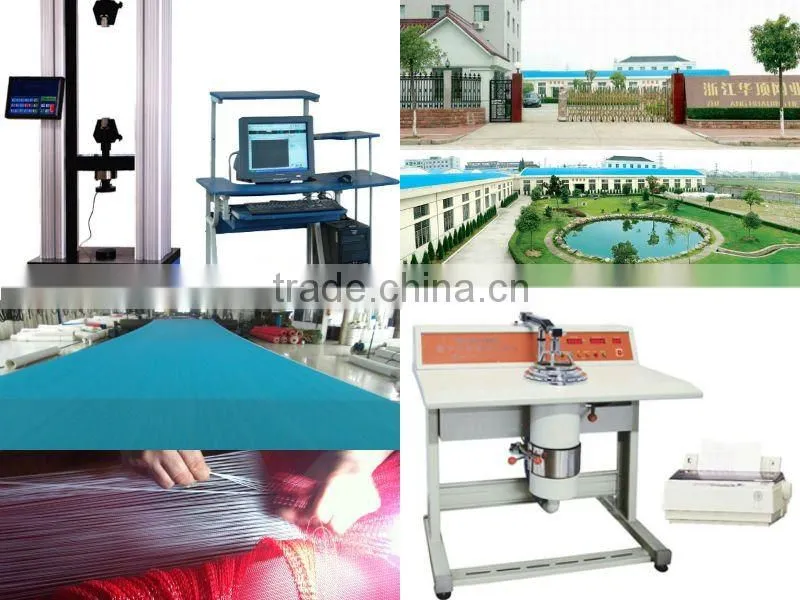

Our workshop and equipment
(we have advanced equipment and many professional engineers)

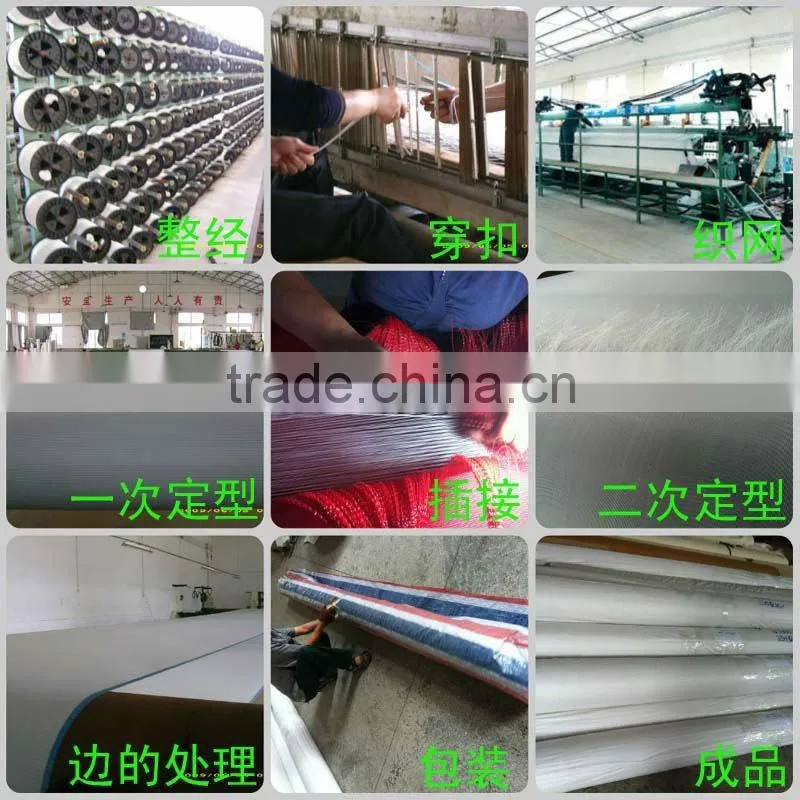

Our production processing
(warping--wear buckle--knitmesh--once heat setting--seaming--twice heat setting--edge treatment--package--finish)

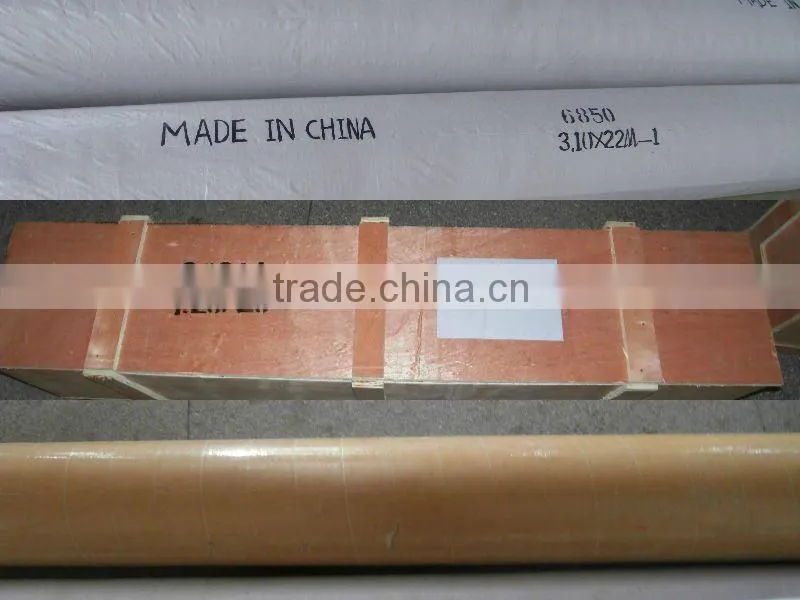

Our package
(we always use wooden box for export )

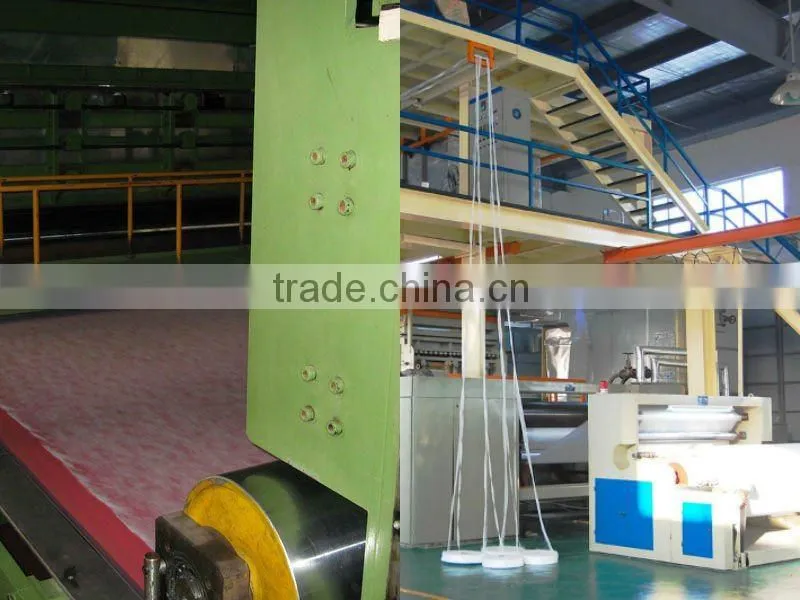

Job site and production line
(our customer use our polyester forming fabric for their production line)
Our certificate
(our products have passed the quality system authentication of ISO9001:2008)
