Instruction

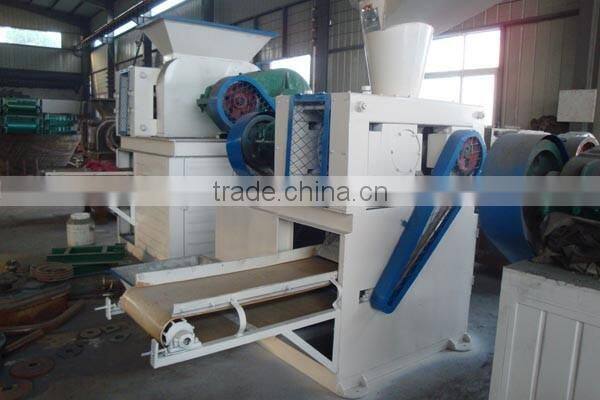

Double-roll type press is made of all kinds of agro-wastes and forest residues. If there are abundant biomass resource available, you can consider starting a charcoal briquette plant. Briquette machine have wide application both in industrial and home use featured with high density, small volume & good combustibility. Our professional salesman can give you suggestions to choose the most suitable type.
Application
Double-roll type press is mainly used for no water portion of the material made of ball pressure. Such as: quick lime powder, magnesium oxide powder, copper fine powder, lead, zinc waste, aluminum vanadium and soil, nonferrous metal powder, refractory material, ceramic material through the high strength high capacity of high ball made of eggs. Widely used on metallurgical, chemical, refractories, etc.
Working Principle

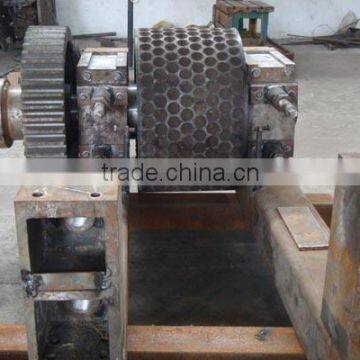

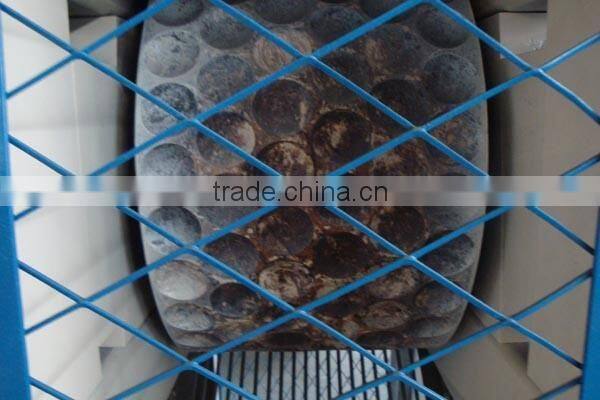

This series of Double-roll type press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball
Features
A. Raise Added Value coal briquette machine
B. High briquette ratio coal briquette machine
C. Low energy consumption coal briquette machine
D. High pressure coal briquette machine
E. Strong structure coal briquette machine
F. Long life span coal briquette machine
Main technical parameters
Model |
Roll diameter(mm) |
Capacity(t/h) |
Power(kw) |
290 |
290 |
1-3 |
5.5 |
360 |
360 |
4-6 |
11/15 |
430 |
430 |
6-8 |
18.5 |
500 |
500 |
8-12 |
18.5/37/55 |
500-1 |
500 |
5-8 |
37 |
500-2 |
500 |
8-12 |
55 |
650 |
650 |
10-15 |
37/45 |
750 |
750 |
15-20 |
75/90/110 |
850 |
850 |
20-25 |
90/110 |
1000 |
1000 |
25-30 |
90/110/132 |
Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Welcome to visit our factory anytime !!!
