steel coils cutter to pieces
1.Technical parameter:
a. Motor power:hydraulic motor 5.5kw

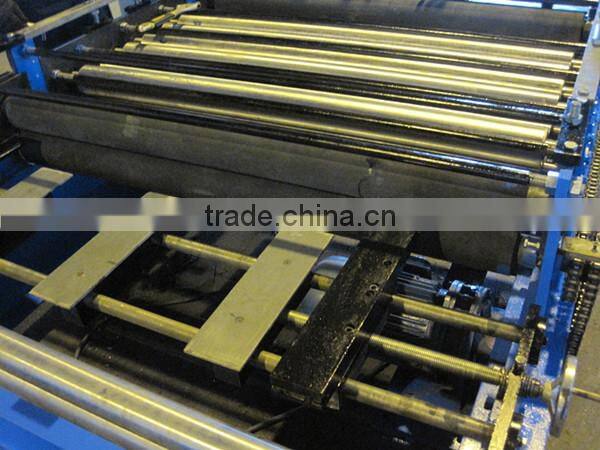

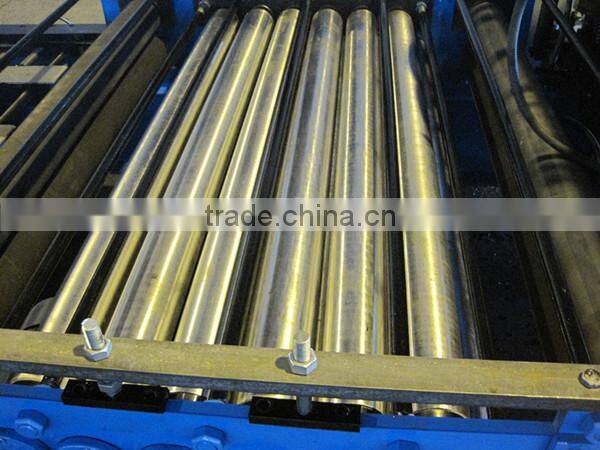

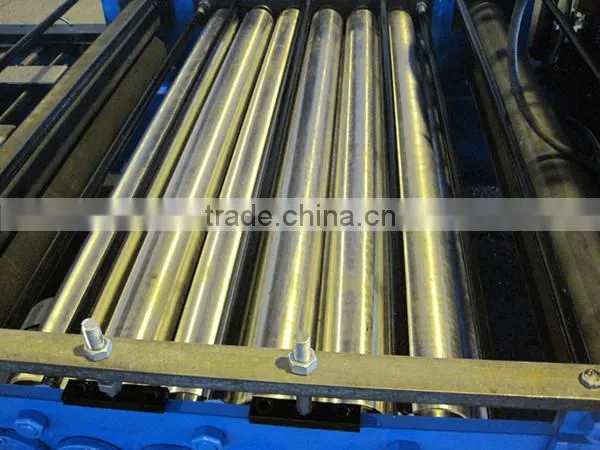

b. Two rollers for clamping and feeding, 13 rollers for leveling
c. Thickness of steel coil:0.3mm-2.0mm (stainless steel up to 1mm)
d. Inner diameter of steel coil:Φ508mm,Φ610mm
e. Outer diameter of steel coil:≤Φ1500mm
f. Width of steel coil:1250mm
g. Tolerance of cutting length:±2mm
h. Pressure of hydraulic system:12Mpa
i. Uncoiler: hydraulic expanding, motorized uncoiling
j. Weight capacity of uncoiler: 5T
k. Transducer:Yaskawa
l. Computer adopts PLC, Mitsubishi
m. Operation board adopts MCGS
2.Technical process:
uncoiling~clamping & feeding~length fixing~hydraulic cutting~output

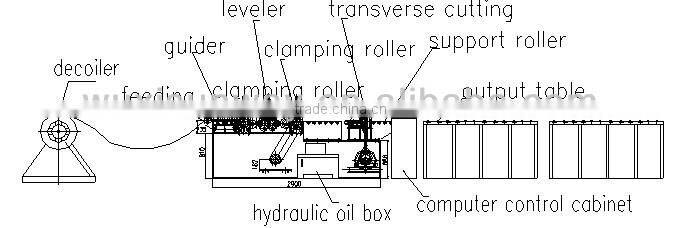

3. Flow chart:
4.Main components and function:

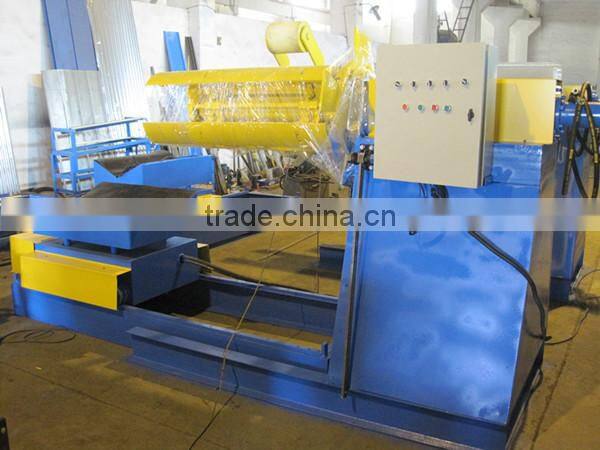

a. Uncoiler:load steel coil, uncoiling when machine running;
b. Encoder:measure length and send the signal to computer for shearing;

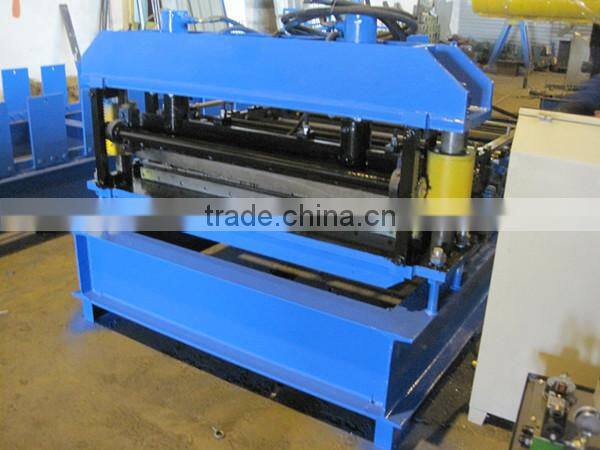

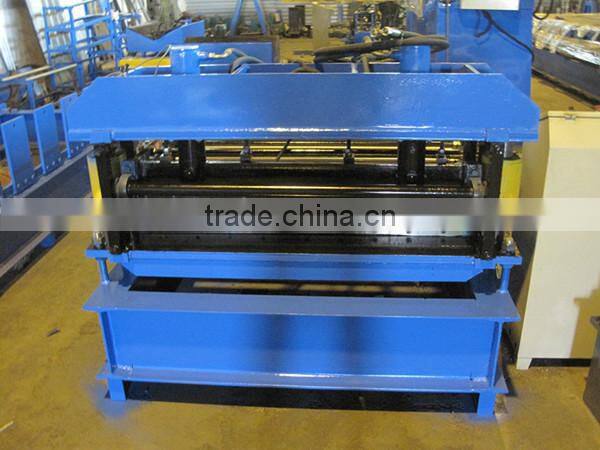

c. Hydraulic shearing:shear the material into required length;
d. Hydraulic station:provide the hydraulic power to shearing;
e. Controlling cabinet:send the instruction for all the action;
f. Output table:load the finished steel panel
Payment Term and condition:
* Payment Term: 30 T/T in advance, 70% T/T before delivery
* Delivery Time: Within 30 Days after receipt of the down payment
* Warranty: 1 year and life-long maintainance
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5 days

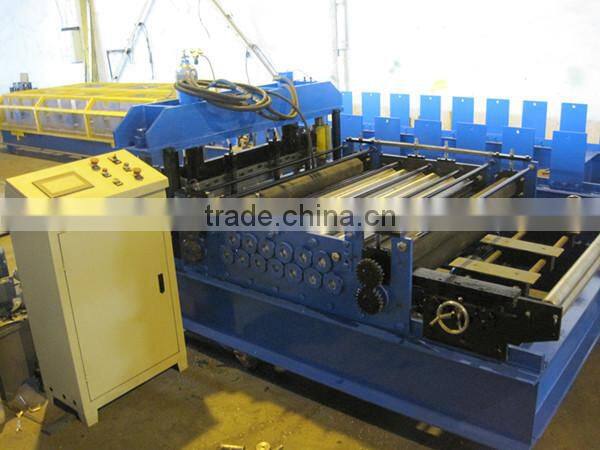

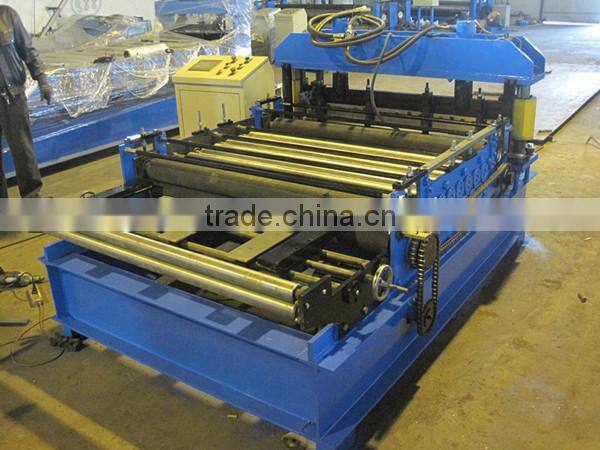

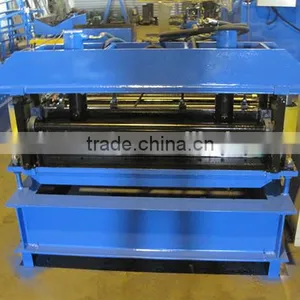

simple cut to length machine photo
