Specifications
1. Wheat pellet chips Machines2. Square Screw Barrel Suitable to long time using
3. Finished Gear Box
4. Multi-function used

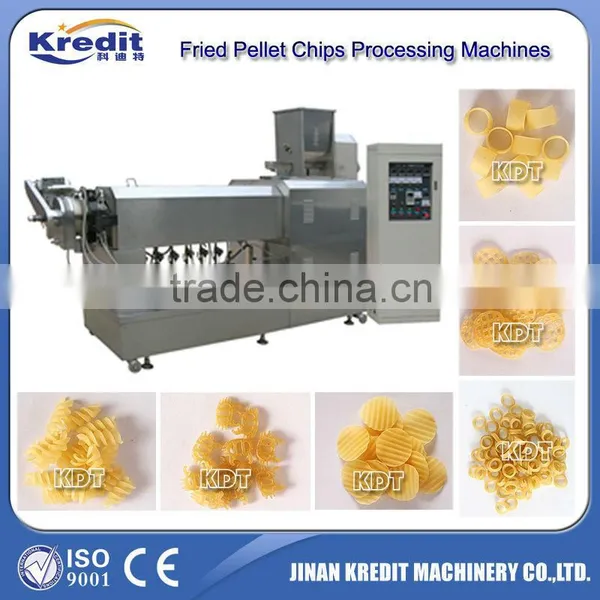

Fried Wheat Pellet Chips Processing Machines Introduction
Wheat Pellet chips Processing Line is multi-function used automatic production line. Its raw material is wide; it can take wheat flour, corn starch, potato starch, cassava starch, Rice powder etc. as the raw materials, through the Single screw Extruder or Twin screw Extruder high pressure extruding, high temperature heating finally through the Mould to form different shapes of un-puffed Pellets. The shape is like Round, Triangle, Square, Star, Flower, Ring, S, Net, Heart, Squid, Shrimp etc. according to change the Mould on the Extruder head.
The Snack Pellet is second puffed Snacks, first, through Extruder forms the pellet, after low temperature long time drying to get the final pellets. Such semi-finished products can be directly sold to the retails market, amount is very large. Or frying, flavoring and packing to get the final puffed crispy Chips. It is suitable to eat as snacks and tourist leisure food.
Fried Wheat Pellet Chips Processing Machine Function
this processing line can be used to produce many kinds of potato pellets, pasta, artificial rice, fried flour snacks etc. various snack food.
1) Capacity: 100-300kg/h
2) Raw material: such as Potato starch, Corn starch, Cassava starch, Wheat flour, Rice powder etc.
Fried Wheat Pellet Chips Processing Machine Main Features
1) Stable performance: adopting imported frequency or electromagnetic controlling system, high automation and smooth operation.
2) Permanent working life: with special material and technology, the screw and nut
involved can work continuously for 1 year under conditions of high wear and pressure
Technical Panameter
| Model | KDT100 | KDT150 | KDT75-II |
| Installed Powder | 75kw | 100kw | 200kw |
| Powder Consumption | 53kw | 70kw | 140kw |
| Output | 100-120kg/h | 200-250kg/h | 200-250kg/h |
| Dimension | 22000x2000x2200mm | 25000x2500x3500mm | 25000x3000x3500mm |
Fried Wheat Pellet Processing Flow Chart
Flour Mixing - Extruding – Cutting - Cooling - Drying – Cooling – Packing
Fried Wheat Pellet Chips Equipments List
1)Mixer→ 2) Screw conveyor→3) Extruder→ 4) Cooling Conveyor →5) Cutter →6) Dryer→ 7) Hoister→ 8) Automatic fryer→ 9) Flavor Roller

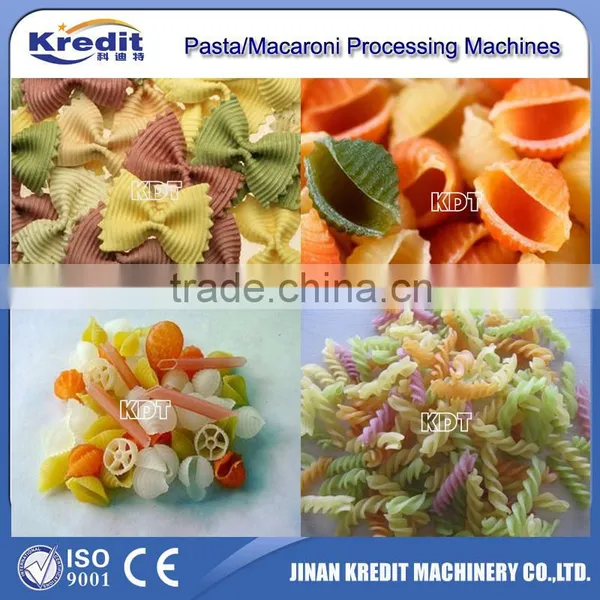

Final Products Pictures
Voltage/Freqequency
380V 50Hz (It can also make according to your area requirement.)
1). We will provide consultation service before, during, and after sales;
2). The project planning and design services;
3). New production techniques and formulas;
After-Sale Service
1.) When the machines reach your factory, we will dispatch our skilled engineer to do installation for you on time. The installation time will take 7 days.
2.) We will provide you the food processing recipe for free.
3.) Teach your staff how to operate and maintain the machines.
4.) We can also take Video chat to show the operation and maintains.
Guarantee Time
1). The whole line guarantee for One year after installation.
2). During this period we will provide free spare parts for one year using and guarantee the main parts.
Srong Seaworthy Wooden Paking Suitable For Long Distannce Transport
Welcome to contact and visit us, you will get more information !
