Specifications
1Core filling snack extruder is processing line2.Cheetos can be Fried and Baked.
3.Large capacity: 150 kg/h
Twin Screw Extruder For Filling Snacks
Cheeots Snacks/Corn Curls /Kurkure/Nik Nak Snacks Process Line adopts American Extrusion technology, it takes corn grits(not powder) as raw materials , through single screw rotary head extruder direclty expanding out twist corn curls. After this it will be processed with dryer or fryer to get final crispy cheetos snacks.
The processing line is foodstuff equipment researched and developed on the basis of international advanced technology. The performance and quality have reached the highest international level of the same line. From feeding materials, extruding and inflating, roasting, spraying to finished products are done once time with automation. We fill the gap of the first-class food produced with extruded and inflated technology.
Twin Screw Extruder For Filling Snacks Function
This processing mchine can be used to produce different sizes of cheetos snacks, the size and thickness can be adjusted .
1) Capacity: 150kg/h
2) Raw material: Corn Grits.
Main Features
1) Stable performance: adopting imported frequency or electromagnetic controlling
system, high automation and smooth operation
2) Permanent working life: with special material and technology, the screw and nut
involved can work continuously for 1 year under conditions of high wear and pressure
Technical Panameter
| Model | KDT65-III | KDT70-II | KDT75-II | KDT85-II |
| Installed Powder | 75kw | 100kw | 165kw | 165kw |
| Powder Consumption | 53kw | 70kw | 116kw | 116kw |
| Output | 120-150kg/h | 200-250kg/h | 250-400kg/h | 500kg/h |
| Dimension | 21000x1200x2200mm | 23000x1500x2200mm | 28000x3000x4300mm | 28000x3000x4300mm |
Processing Flow Chart
Flour Mixing - Extruding and inflating - Conveyor - Drying –Conveyor - Flavoring -Cooling

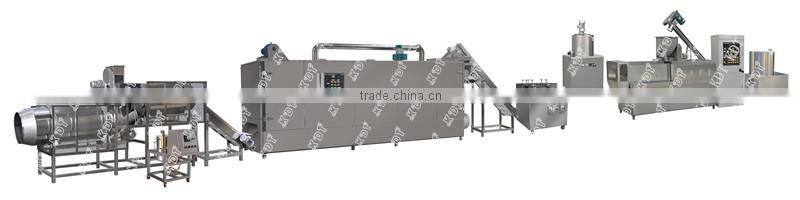

Equipment List
Mixer—— Screw conveyor—— Rotary Extruder—— Hoister——Dryer -- Hoister ——Favor Roller - - Cooling Conveyor
Finl Products Pictures
Voltage/Frequency
380V 50Hz (It can also make according to your area requirement.)
After Sales Service
1.) When the machines reach your factory, we will dispatch our skilled engineer to do installation for you on time. The installation time will take 7 days.
2.) We will provide you the food processing recipe for free.
3.) Teach your staff how to operate and maintain the machines.
4.) We can also take Video chat to show the operation and maintains.
Guarantee Time
1). The whole line guarantee for One year after installation.
2). During this period we will provide free spare parts for one year using and guarantee the main parts.
Stronge Seaworthy Wooden Paking Suitable For Long Distance Transport
Customers Visit Our Company
Welcome to contact and visit us, you will get more information !
