Product Name: VANCH fast uhf rfid reader for cars
Item Code: VI-86E
Category: Access Control Card Reader Card Add to Favorite Categories
Short Description: 306(L)*306(W)*25(H)mm, 865-868/902-928Mhz, CE/FCC, 6-10m read disance, customer's logo imprint available
Quantity: 1 Piece
Gross Weight/Package: 2.6( kg )
Model# |
VI-86E |
| |
Performance Index | |
Frequency range |
902-928MHZ/865-868MHz(or customized) |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable;50Ω load |
Communication interface |
LAN,RS232,RS485,Wiegand26/34,IEEE 802.11 |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface |
12 pin + 4 pin |
Power dissipation |
average<10W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
6~10m equipped with 9dbi antenna(tag dependent) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension |
306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring) |
Power supply |
Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight |
2.6Kg |
Installation |
Embrace rod mounting |
Diameter of support rod |
40-50mm |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP65 |
Operation temperature |
-20 ºC to +60 ºC |

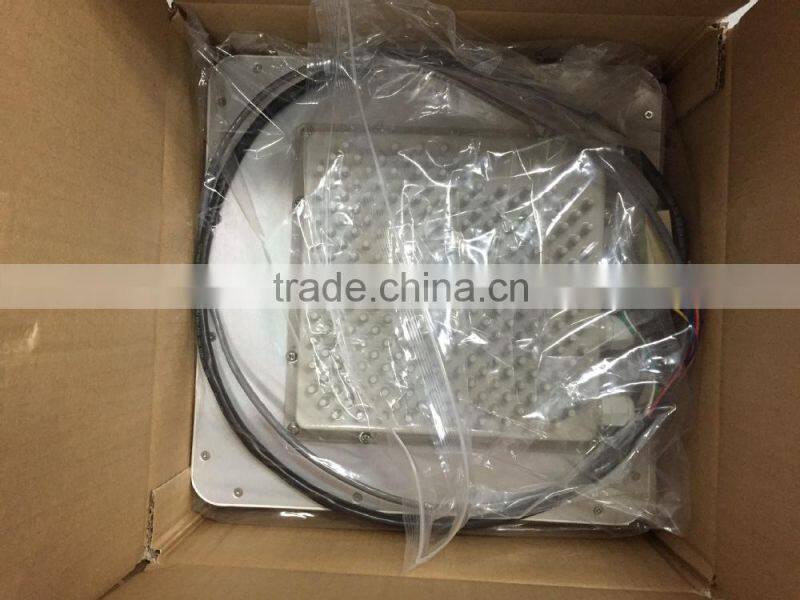

Standard carton box with protecting material for each reader.
Goods will be shipped to you by express, such as DHL, FEDEX, UPS, TNT and EMS etc.
Animal tracking, asset tracking, parking system etc.
- We accept Paypal, T/T , Western Union as payment method.
- We will be happy to Combine shipping for more than 1 item ship to the same address
- Please make the payment in 3-5 days after you place the order to arrange the production.
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
