VANCH UHF Wiegand RFID Based Parking Management System
reading distance about 8-15m rs232, rs485, tcp/ip, wiegand26/34

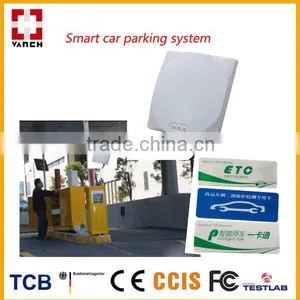

Application: logistic, access control systems, automatic parking management system and production process control and other RFID system.

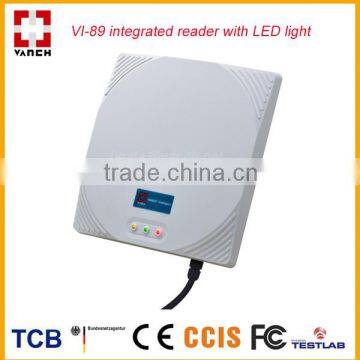

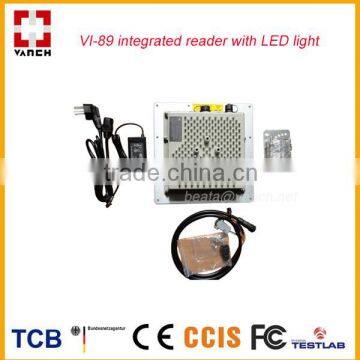

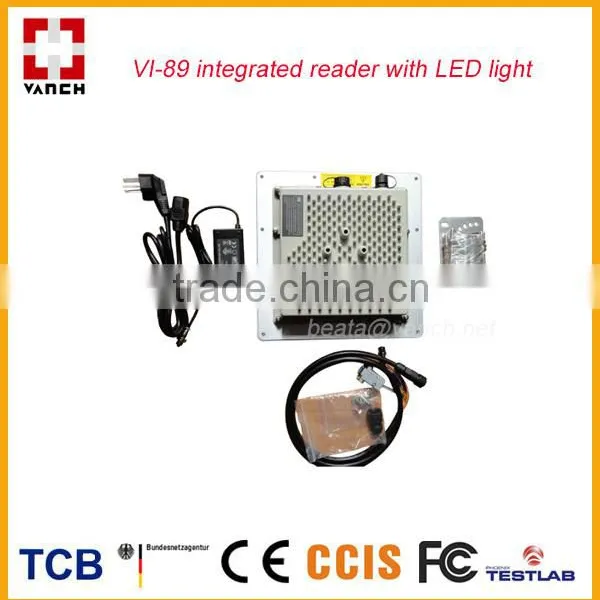

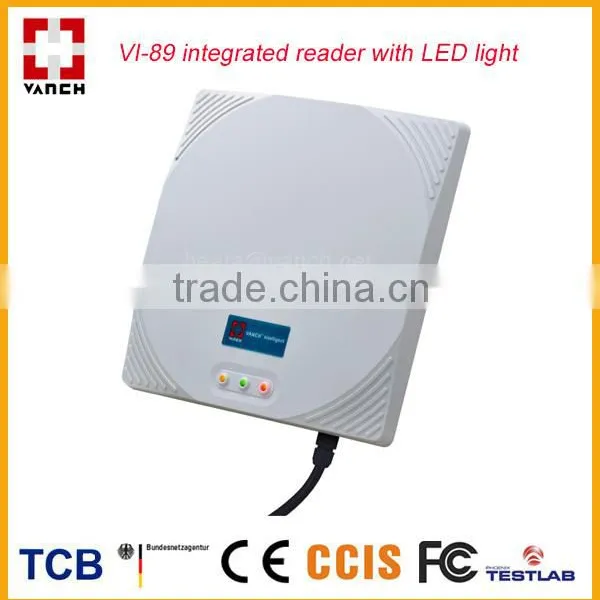

Model# |
VI-89F |
Performance Index | |
Frequency range |
902-928MHZ/865-868MHZ(or customized) |
polarization |
right-handed circularly polarized |
Half-power beamwidth (°) |
Horizontal polarization:65 Vertical:60 |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable;50Ω load |
Communication interface |
LAN,RS232,RS485,Wiegand26/34,IEEE 802.11 |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface |
I/O 12 pin + 4 pin |
Power dissipation |
average<10W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
6~10m equipped with 9dbi antenna(depends on the tag) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension |
260*260*65mm(excluding mounting bracket and external wiring) |
Power supply |
Equipped with power convertor 220V AC input, +9V/3A DC output |
Working instruction |
LED light indicator |
Radome material |
ABS Engineering Plastics |
Radome Colour |
White or grey |
Weight |
3kg |
Installation |
Embrace rod mounting |
Diameter of support rod |
35-50mm |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP65 |
Operation temperature |
-20 ºC to +60 ºC |
Lightning protection |
DC Ground |
Connector interface |
IP67 Grade waterproof quick connector |
- We accept Paypal, T/T , Western Union as payment method.
- We will be happy to Combine shipping for more than 1 item ship to the same address
- Please make the payment in 3-5 days after you place the order to arrange the production.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
If you want to know more details, please kindly contact me as the following:
