RFID UHF RFID Tyre Tag/Truck Tire Patch Tag for Anti-theft South America

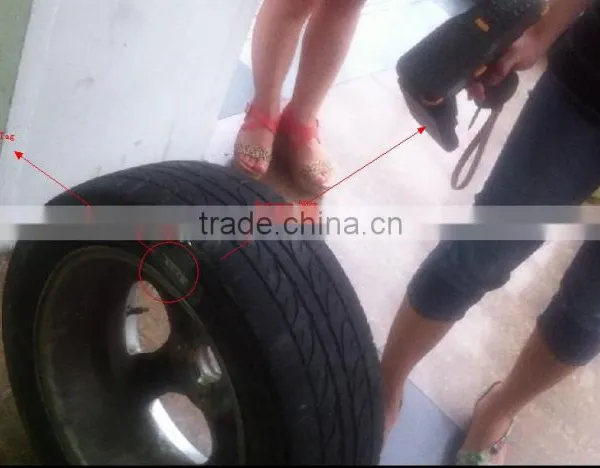

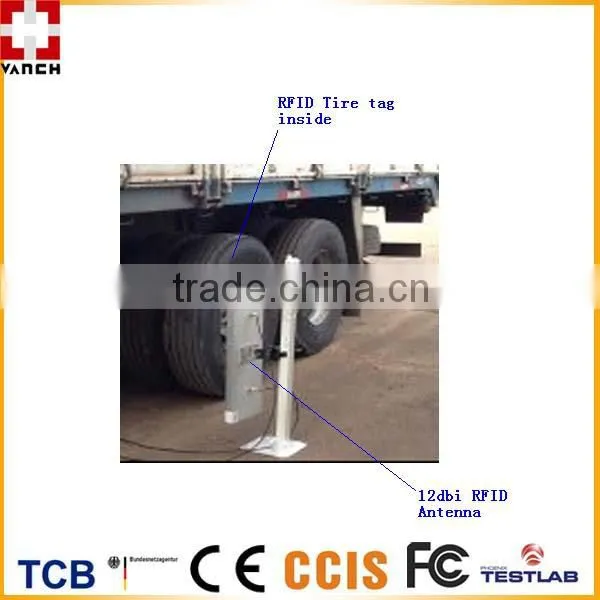

Vanch RFID Equipment to be installed as follows:
VH-770 UHF RFID Handheld reader

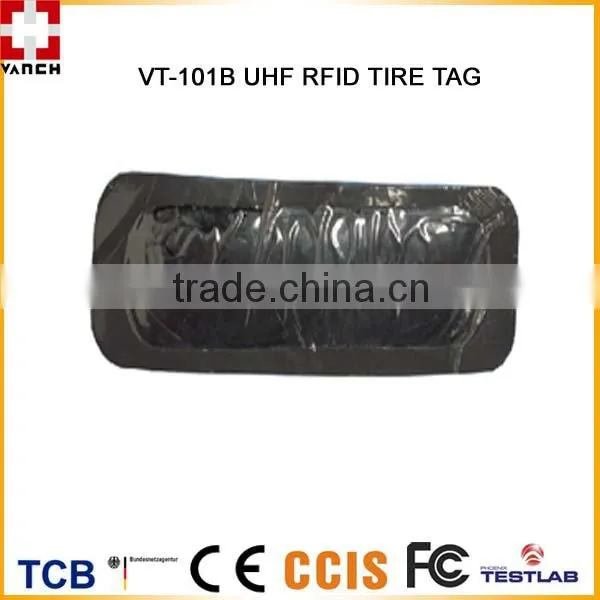

VT-101B Tire Tag
Specification |
|
Model |
VT-T101B |
| |
Performance Index | |
Protocol |
EPC class 1 generation 2/ISO 18000-6C |
Frequency |
860—960MHZ |
Read distance |
0-2m |
Memory |
96bits EPC,512bits user memory |
Read/write |
Can read/write data into the tag |
Unique ID |
The factory programmed tag identification number is unique to prevent cloning. |
Installation |
mounted inner side of the tire |
Dimension |
110mm*55mm*3mm |
Weight |
8.5g |
Installation method
1. Check the general area where the patch will stick.
2. Cleaning the surface of the inner liner in the area where the patch will stick.
3. Removing molded-in features such as ridges (strias) or texture (“alligator skin”)
4. Marking the exact location where the patch will stick
5. The distance between the patch center and the lip of the bead will be 105 – 115 mm
6. Applying Vulcanizing Cement and allowing the solvent to dry
7. Applying the patch to the prepared inner liner and applying pressure (“stitching it down”) to assure intimate contact.
8. There will be no bubbles under neath the patch
9. The patch will be tightly adhered to the tire all the way around its periphery.
10.Waiting for appropriate time and make the adhesive system vulcanization (depending on temperature).
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields
