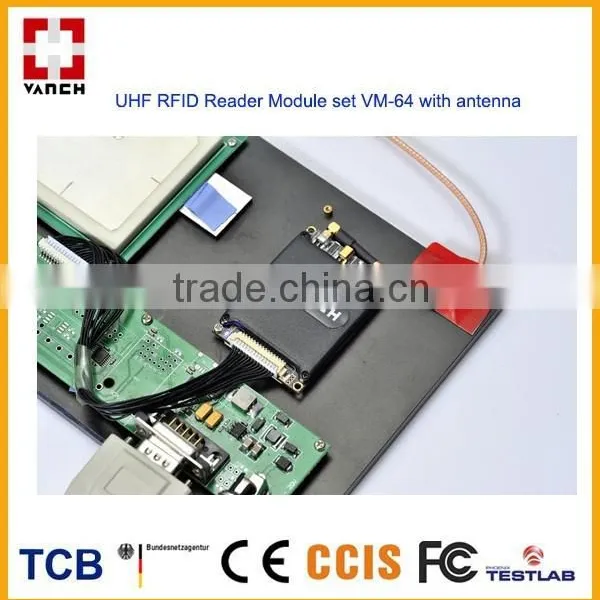

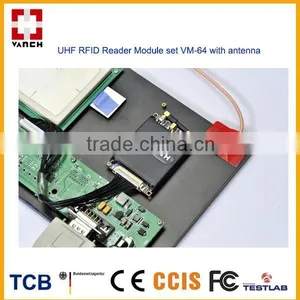

oem rfid reader module,rfid reader uhf oem

Name: oem rfid reader module,rfid reader uhf oem
Brand: VANCH
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VM-64

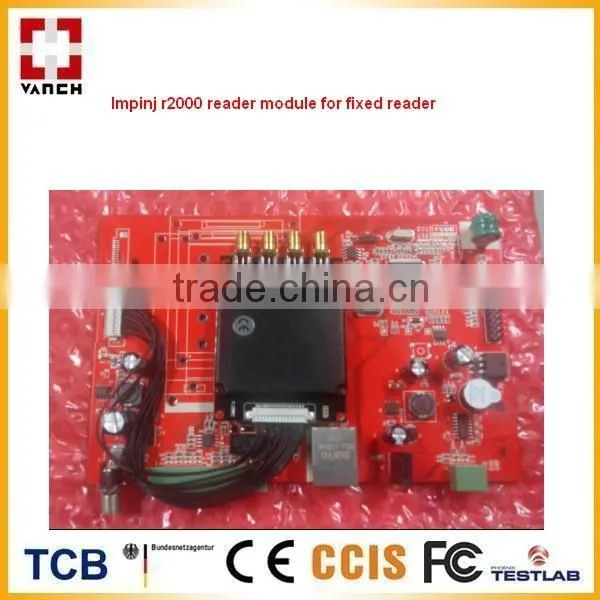

l Adopt high performance Impinj UHF Reader chip IndyR2000

l Small dimension, low power, convenient to integrate into internal of handheld reader

Features

1, Full support protocols of ISO-18000-6B,ISO-18000-6C(EPC G2)

2, operating frequency: 865-868MH /902-928MHZ (can be adjusted according to different countries or regions)

3, Reading distance can reach 4 meters above, is best choice to apply RFID reader integration and development

Physical parameters:

Length (PCB length) mm	55.5 mm
Length (Including the RF connector) mm	60 mm
Width mm	39.5 mm
Height mm	7.5 mm
Operating Temp.	-20°C– +60 °C
Storage Temp.	-20°C– +85 °C
Operating Humidity	< 95% ( + 25 °C)

Antenna connector

MMCX connector	50Ohm
SMA connector	50Ohm	options

Electrical parameters

	minimum	typical	Maximum
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Frequency	860MHz		960MHz
Voltage	3.7V	4.2V	5V
Operating Current (30dBm output)	1.1A	1.2A	1.3A
Standby current	50mA	60mA	70mA
Maximum output power		33dBm
Minimum output power		20dBm
Output power accuracy		+/-1DB
Output power flatness		+/-0.2DB
Antenna connector protection		Support
Tag RSSI		Support
Antenna impedance matching measurement		Support
Dense reader mode (DRM)		Support
Ambient temperature measurements		Support
ESD protection		Multiple

Connector PIN definition:

Connector Model : Molex 53261-1571
PIN	Definition	Description
1	GND	Grounding at the same time
2	GND	Grounding at the same time
3	3.7V – 5V DC	Connect to power at the same time
4	3.7V – 5V DC	Connect to power at the same time
5	GPIO 1	Universal IO interface
6	GPIO 2	Universal IO interface
7	GPIO 3	Universal IO interface
8	Buzzer	driven
9	UART_RXD	TTL Level
10	UART_TXD	TTL Level
11	USB_DM	USB interface
12	USB_DP	USB interface
13	GPIO 4	Universa IO interface
14	EN	High TTL Level enabled module
15	GPIO 5	Universal IO interface
