Vanch VM-64 Rhif Uhf Reader Module

Name: Vanch VM-64 Rhif Uhf Reader Module
Brand: VANCH
SKU: 101692115
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VM-64

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VM-64

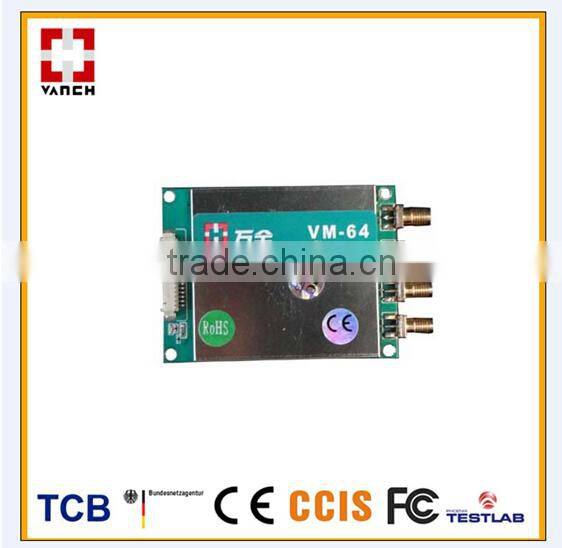

Vanch VM-64 rhif uhf reader module

l Adopt high performance Impinj UHF Reader chip IndyR2000

l Small dimension, low power, convenient to integrate into internal of handheld reader

Features

1, Full support protocols of ISO-18000-6B,ISO-18000-6C(EPC G2)

2, working frequency: 865-868MH /902-928MHZ (can be customized)

3, Reading distance can reach 4 meters above, is best choice to apply RFID reader integration and development

Length (PCB length) mm	55.5 mm
Length (Including the RF connector) mm	60 mm
Width mm	39.5 mm
Height mm	7.5 mm
Operating Temp.	-20°C– +60 °C
Storage Temp.	-20°C– +85 °C
Operating Humidity	< 95% ( + 25 °C)

Antenna connector

MMCX connector	50Ohm
SMA connector	50Ohm	options

Electrical parameters

	minimum	typical	Maximum
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Frequency	860MHz		960MHz
Voltage	3.7V	4.2V	5V
Operating Current (30dBm output)	1.1A	1.2A	1.3A
Standby current	50mA	60mA	70mA
Maximum output power		33dBm
Minimum output power		20dBm
Output power accuracy		+/-1DB
Output power flatness		+/-0.2DB
Antenna connector protection		Support
Tag RSSI		Support
Antenna impedance matching measurement		Support
Dense reader mode (DRM)		Support
Ambient temperature measurements		Support
ESD protection		Multiple

Connector PIN definition:

Connector Model : Molex 53261-1571
PIN	Definition	Description
1	GND	Grounding at the same time
2	GND	Grounding at the same time
3	3.7V – 5V DC	Connect to power at the same time
4	3.7V – 5V DC	Connect to power at the same time
5	GPIO 1	Universal IO interface
6	GPIO 2	Universal IO interface
7	GPIO 3	Universal IO interface
8	Buzzer	driven
9	UART_RXD	TTL Level
10	UART_TXD	TTL Level
11	USB_DM	USB interface
12	USB_DP	USB interface
13	GPIO 4	Universa IO interface
14	EN	High TTL Level enabled module
15	GPIO 5	Universal IO interface
