3m detection distance Eas mono am alarm system WT9500AM5DA2
What's Eas system ?
Electronic Article Surveillance ( EAS ) is a kind of electronic anti shoplifting system that can decrease shoplifting when retailing enterprise implement open-shelf sale ,so increase sales and profit .EAS system consists of electronic sensors , deactivator system and label or tag .Electronic sensor that are located at store exits , a transmitter sends a unique signal at certain frequencies to a receiver , which creates a “surveillance area “ at a stire exit when a product with an active label or hard tags is moved past a sensor , the sensor sets off an alarm .
Technical specifications :
Specifications | ||
|
|
Model Name |
eas am system 58Khz |
Frame |
Acrylic |
|
Frequency |
58Khz |
|
INPUT POWER |
220VAC/110VAC |
|
ALARM INDICATOR |
Sound & Flash |
|
SIGNAL PROCESSING MODE |
DSP |
|
Detection range | ||
Soft label |
≤140CM |
|
25-39mm Magnetic Bar |
≤260cm |
|
39-50mm Magnetic Bar |
≤320cm |
|
Introductions :
- Imported Acrylic design , strong wear resistance ,crystal clear ;
- With stable Sound & Flash alarm performance ;
- Advanced DSP technology ;
- Easy installation ,unlimited online ;
- Designing for the large and medium-sized clothing store ,shoes & hats store , cosmetics store , package store etc ;
- With CE standard and selling well in overseas market .
The model is our newest 58Khz eas mono alarm system , which compatible with Eas am label , magnetic tag , eas am deactivator , eas detacher etc.
Eas am classification in Witoea Technology :
1 series : WT9500AM1 Rx + Tx , no installation quantity limitation in the same door ;
3 series : WT9500AM3 Rx & Tx intergrated , 1 main antenna + 2 subset antenna ;
5 series : WT9500AM5 Rx & Tx intergrated , independent CPU processing system .

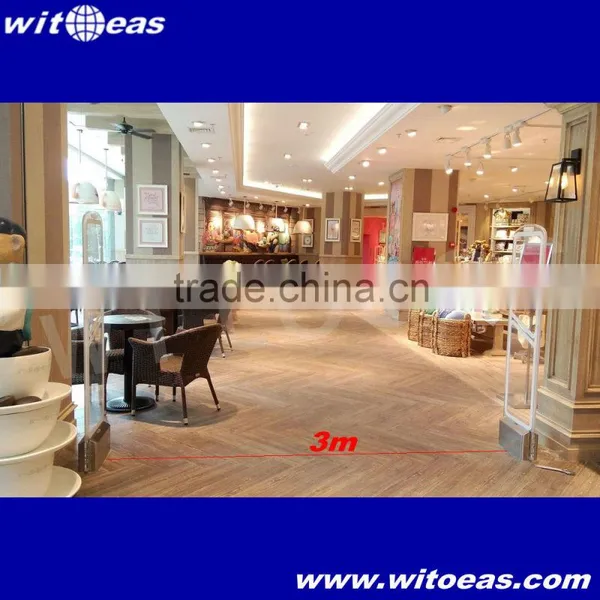

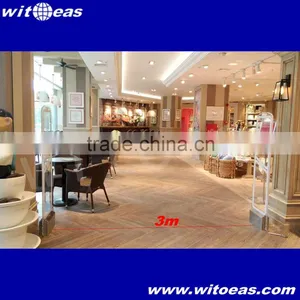

Recommended install distance :

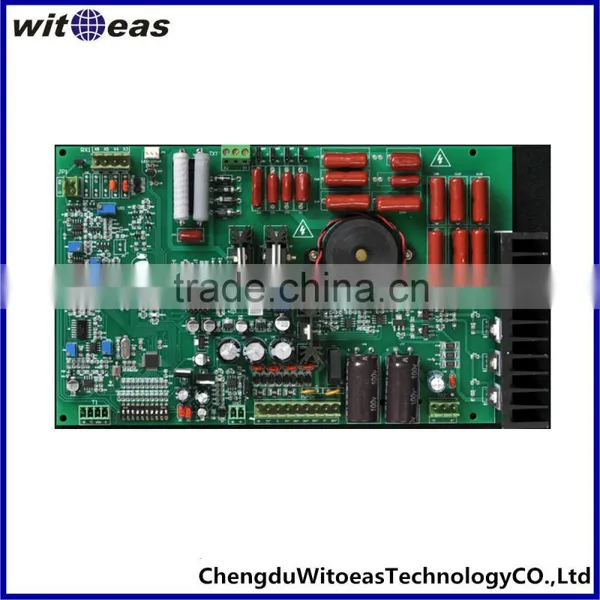

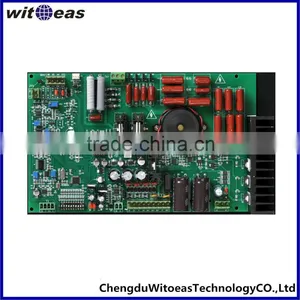

Electric Circuit board :
The model is our Eas am system , MONO type . For this model :
1-Pnp and plug , easy installation ;
2-Acrylic material , beauty ;
3-No need extra battery .
4-Manual debugging , simple and conveient .
Function performance :
- Aesthetics : Adopt imported acrylic material , crystal clear ;
- Hidden : Installed on the door , can be integrated with Glass door ;
- Stability : Adopt DSP technology , high alarm rate ,low rate of false alarm;
- Advancements : Patent design and with independent Intellectual property rights;
- Operability: manual adjustment , convenient and fast , computer and remote control are no need ;
- Convenience : No need hosts and battery box , Pnp plug and play ;
- Independence: Transceiver , mono can be work
- Install method : Embedded parts, cutting, trunking
Packaging :
Packing:1 antennas +1 panel
Size : 160*43*11cm ( 1 pcs Antenna )
G.W:20KG
Shipping :
Delivery terms : FOB ( Over 100pcs ) EXW ( sample )
Delivery Time: 2-5 working days for sample, 5-20 working days for bulk.
Payment: T/T
Shipping: By sea ( For Big order )
By air, DHL, FEDEX, TNT, UPS, etc. ( For sample order )
1. MOQ——Sample order is acceptable.
2.Quickly Delivery Time:
2-5 working days for sample, 5-20 working days for bulk.
3.Quickly reply :
All inquiries will be replied within 24 hours ;
4.We are professional manufacturer , welcome to visit our website .
5. Warranty: 1 years warranty. ( From EXW date ) ;
6.After sales service :
1)All products will have benn strictly Quality inspection before packing ;
2)All products will be well packed before shipping ;
7. Payment terms : T/T
8.Shipping: By sea, by air, DHL, FEDEX, TNT, UPS, etc.
Chengdu Witoeas Technology Co.,Ltd have been focused on EAS ( Electronic Article Surveillance ) systems since the first domestic EAS systems MG2000 born in Chengdu , China , 1995.
We manufactures a complete line of Radio Frequency (RF) systems, Acousto-Magnetic (AM) systems that are compatible with all industry standard security tags , labels , and label deactivators , detacher.
Our technologies utilize the latest in digital signal processing (DSP) to assure high detection rate and virtually trouble free operation. The loss prevention and theft detection solutions under Acusto-Magnetic (AM) and Radio Frequency (RF) technologies help reduce shoplifting in retail stores and supermarket.
Our Certifications :
In May 2006,We won the patent certification of EAS Appearance design ;
In July , 2006 , We won the patent certification of Commodity inspection signal receiver;
In August , 2006 , We won the patent certification of Commodity electronic detection synchronization;
In July , 2007 , We won the patent of Self-help type Commodity Anti-theft system and using method ;
In 2010 , we become the member of CHINA SECURITY & PROTECTION INDUSTRY ASSOCIATION ;
IN 2013, we got the patent certification of AM inspection systems ;
