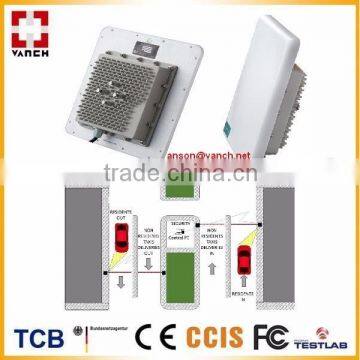

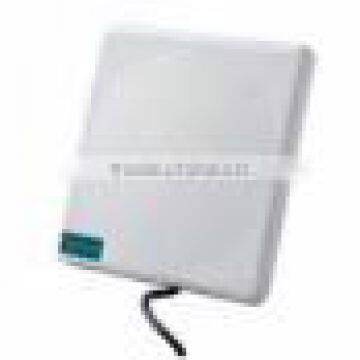

UHF long read range RFID reader for parking lot/ETC/access control system
Application
logistics, access control, ETC, electronic security, manufacturing automation and etc.
Features
Reliable industry structure design, workable in varied severe environment.
Specification
Specification |
| |
Model# | VI-86F | |
Performance Index | ||
Frequency range | 902-928MHZ(or customized) | |
FM mode | FHSS or fixed frequency, set by the software | |
RF output | 30dBm adjustable;50Ω load | |
Communication interface | LAN,RS232,RS485,Wiegand26/34 | |
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps | |
GP I/O interface | 12 pin + 4 pin | |
Power dissipation | average<10W | |
Application software | Provide with API SDK and VC, VB application routines | |
Tag Operation Performance | ||
Reading distance | 6~8m equipped with 9dbi antenna(tag dependent) | |
Air interface | EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B | |
Mechanical and Electrical Performance | ||
Dimension | 306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring) | |
Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output | |
Weight | 2.6Kg | |
Installation | Embrace rod mounting | |
Diameter of support rod | 40-50mm | |
Humidity | 5% to 95%, non-condensing | |
Protection grade | IEC IP65 | |
Operation temperature | -20 ºC to +60 ºC | |
Project case
Underground Parking lot System
1. You are manufacturer or trading company?
We are original equipment manufacturer in RFID UHF reader for over 10 years.
2. How is your QC?
We have strict QC process and all the products will be 100% testing before shipping.
3. What is your payment term?
100% payment should be paid before shipping.
4. What is your payment way?
T/T, Western Union,Paypal, MoneyGram
5. What is your warranty?
Wthin 1 year.
6. Can I get technical support from you?
Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
If you wanna know more specific about our RFID products,Please contact us for free :
