Specifications

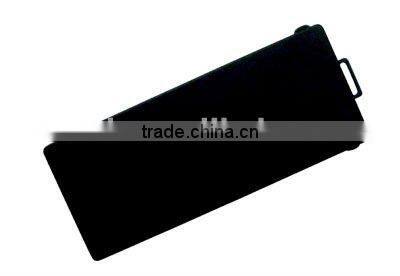

RFID 2.45G Active small tagStudent Accountability
Hospitality Management
People tracking
RFID 2.45G Active tag card With alarm button
Student Accountability
Hospitality Management
People tracking
l Based on independent intellectual property development
l With strong anti-collision capability, able to read cards >2000pcs at the same time;
l Highly reliable design for the industrial structure to meet harsh working environment.
- Tag ID number 8 bytes;
- Has read-only type;
- battery non-replaceable
- Waterproof level: IP65
- long life tag
- wide range Operating temperature
- Long Read distance
Specification | |
Model | VT3002 |
Performance Index | |
Work Frequency | 2.4GHz-2.5GHz |
Work mode | Active |
Transmit power | Less than 1mW |
Reading mode | Read only |
Distance | 0-150 meter |
Battery replacement | Can replace battery |
Life cycle | 5 years |
Quiescent current | <1uA |
The maximum operating current | <12mA |
Operating voltage | 3V(CR2450 Button batteries) |
Queries time | 0.25–0.375s; 0.5–0.75s; 1.0–1.5s; 2–3s; |
Collision capability | a strong anti-collision capability |
Read cards at same time | >200pcs |
Working temp. | -40°C - 75°C |
