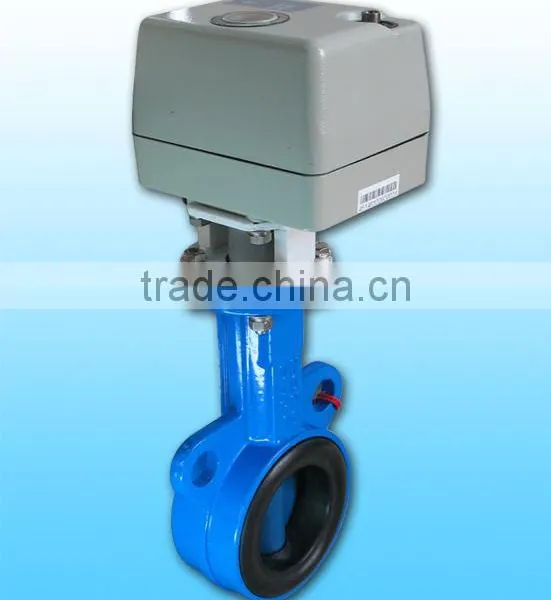

KLD400 Motorized butterfly Valve for automatic control,water treatment, process control, industrial automation
Negotiable
1 (Min.Order)
- 0 per Month
- Tianjin
- T/T Credit Card
You May Like
Product Details
Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Low Pressure |
Power: | Other, electric | Material: | Other | Temperature of Media: | Normal Temperature |
Media: | Water | Place of Origin: | Tianjin, China | Model Number: | KLD400 |
Brand Name: | KLD |
Product Description
Specifications
motorized butterfly Valve for automatic control, IP67, 1-1/2" to 2-1/2", 1.0Mpa, ac/dc 12V,24V,110V, 220V, different material
- KLD 400 motorized butterfly valve for automatic control (ball or butterfly valve)
- Size: butterfly valve(1-1/2 to 2-1/2")
- Technical parameters:
- Voltage: 12, 24, 110 and 220V AC/DC
- Working pressure: 1.0 mPa
- Operating time: 12s
- Humidity: less than 98%
- Actuator rotation: 90 degrees
- Enclosure: IP67
- Input power: 36W
- Torque of actuator: 40Nm
- Rotation direction: double acting
- Material of main parts:
- Actuator: aluminum-alloy
- Coupling: die-casting metal
- Bracket: stainless steel
- Valve Body: Die-casting aluminium
- Disc material: stainless steel(304, 316), Nylon
- Sealing: EPDM, FPM, PTFE,etc
- flanged connecting
actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, hydraulic valve, electric valve, electronic valve
