KLD1500 3-way Control Ball Valve(stainless Steel) for Water Treatment, Process Control, Industrial Automation
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KLD1500 3-way Electric Operated Ball Valve(stainless Steel) for Water Treatment, Process Control, Industrial AutomationNegotiableMOQ: 1 Piece -
KLD1500 3-way Motorised Ball Valve(stainless Steel) for Water Treatment, Process Control, Industrial AutomationNegotiableMOQ: 1 Piece
-
KLD1500 3-way Motorized Ball Valve(stainless Steel) for Water Treatment, Process Control, Industrial AutomationNegotiableMOQ: 1
-
KLD1500 3-way Electronic Ball Valve(stainless Steel) for Water Treatment, Process Control, Industrial AutomationNegotiableMOQ: 1 Piece
-
KLD1500 3-way Electric Ball Valve(stainless Steel) for Water Treatment, Process Control, Industrial AutomationNegotiableMOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Other, electric
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Water
Port Size
2''(DN50)
Place of Origin
Taiwan, China
Model Number
KLD1500
Brand Name
KLD
Specifications

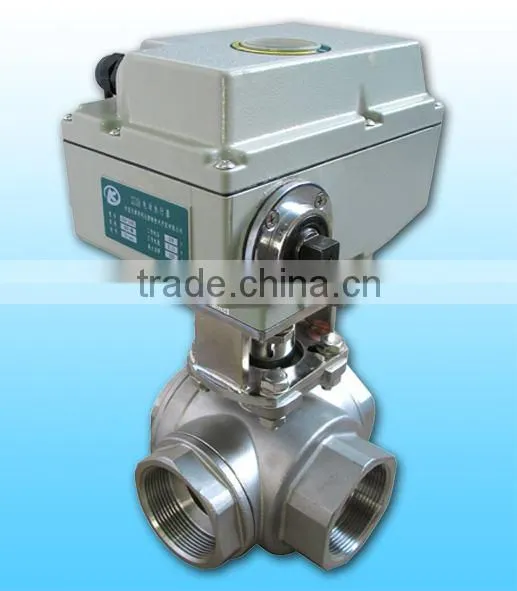

3-way control ball Valve for automatic control, IP67, stainless steel, 2", 6.0Mpa, ac/dc 24V,110V, 220V, 25s operating time.
- KLD 1500 3-way control ball valve for automatic control (ball or butterfly valve)
- Size: ball valve(2 inches)
- Technical parameters:
- Voltage: 24, 110 and 220V AC/DC
- Working pressure: 1.0 to 6.0mPa
- Operating time: 25s
- Humidity: less than 98%
- Actuator rotation: 90 degrees
- Enclosure: IP67
- Input power: 220W
- Torque of actuator: 300Nm
- Rotation direction: double acting
- Material of main parts:
- Actuator: aluminum-alloy
- Coupling: die-casting metal
- Bracket: stainless steel
- Body: stainless steel (316)
- Ball seat: PTFE
- Sealing: EPDM
- threading, welded connecting
actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, hydraulic valve, electric valve, electronic valve
