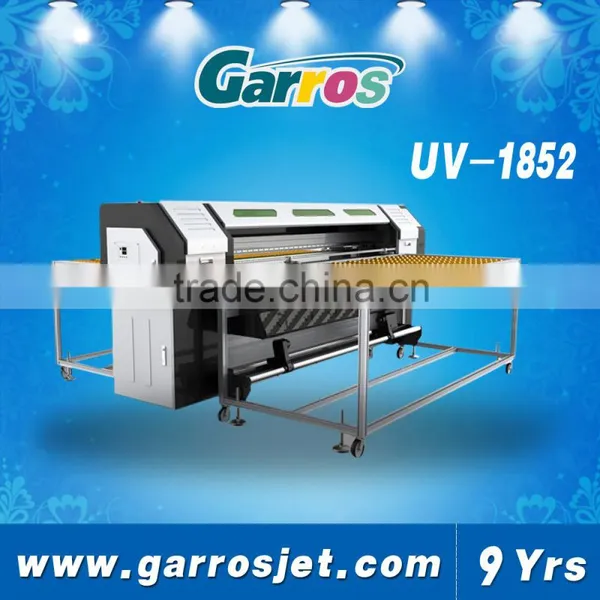

1.8m Roll To Roll Flatbed Inkjet Printer UV 1852
Why choose Roll To Roll Flatbed Inkjet Printer ?
1.it combined flatbed printer & inkjet printer in one machine.
2.it combined Flatbed & Roll To Roll in One machine.
3.The price is very cheap compare with the other UV printer.
4.its easy to install,after you get the UV ,you just need to install the head then you can use in the packing box.
5.its very stable, Our Garros factory have test so many years then sale .
Print head |
Piezo electric print head DX5 |
| Number of print head | Two heads |
| Print resolution | 360x720, 360x1080, 720x720dpi |
| Print speed | 4PASS: 30m²/hr, 6PASS: 20m²/hr, 8PASS: 15m²/hr,16PASS: 8m²/hr |
| Print height | 30mm |
| Ink | Eco solvent ink & UV ink |
| Color | C M Y K W |
| Ink capacity | 0.25L |
| Ink supply system | Ink chamber |
| Rip software | Maintop, PhotoPRINT, Wasatch |
| Maximum print width | 1800mm (71”) |
| Auto print head cleaning system | Auto cleaning system with anti clogged flash spray & moisturiaing function |

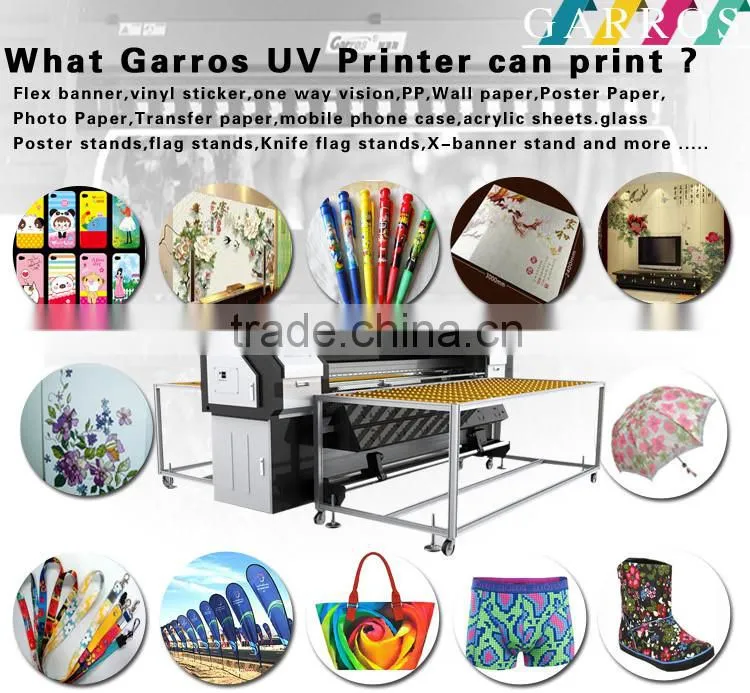

| Media | PVC, PP, Soft materials, PVC Board, Hollow board, Metal, Wall paper, Leather, Glass, Fabric, Acrylic, KT board, Chevron board etc. |
| Media adsorption | Independent intelligent air suction system with 3 sections control |
| Date transmission connector | HI-USB2.0/3.0 |
| Dimension | 3160x1130x1130mm(LxWxH) |
| Packing size | 3300x1045x1500mm (LxWxH) / 600kg |
| Power | AC220V, 50HZ/60HZ |
| Operation environment | Temperature 18-31℃ Humidity: 46-65%Rh |

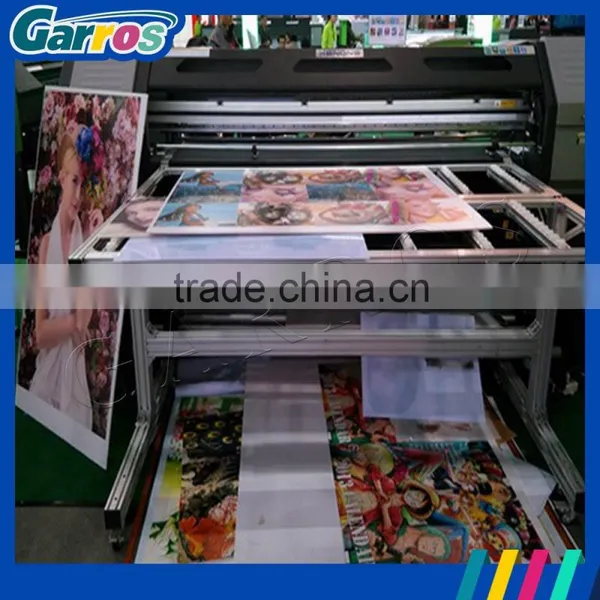

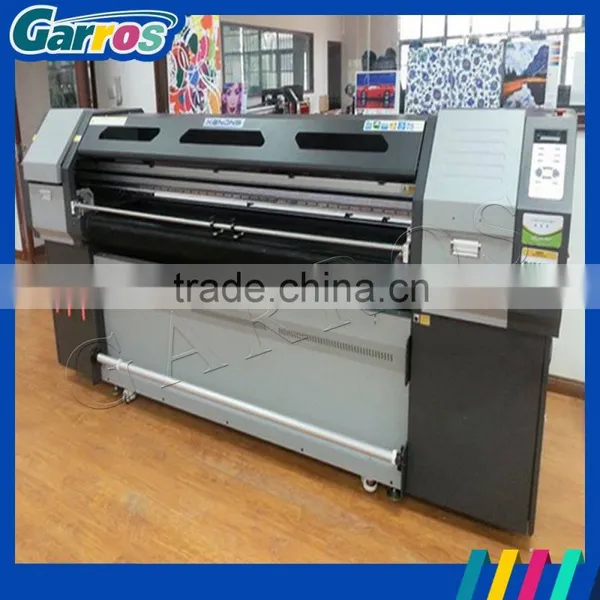

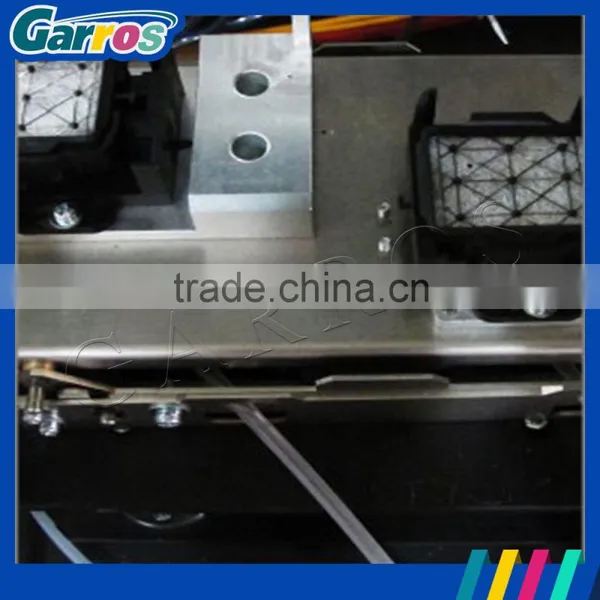

Detail of Roll To Roll Flatbed Inkjet Printer
6.Efficient on-line material drying system, fast drying the materials.

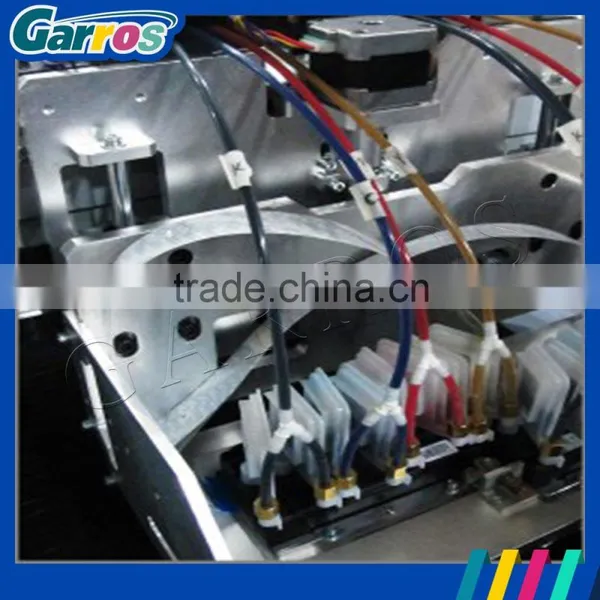

7. Perfect design of ink system, ensure the continuity and quality of printing.
8.High resolution and high speed to satisfy different customers with different orders, realizing the rapid production of the batch,varieties and more personalized.
9. Support a variety of image formats and software, such as JPG/TIFF/AI/EPS/PS.
10.High speed data processing and transmission.
11. Adopt professional RIP, enhance production efficiency greatly.
12.Adopt advanced band conveyor device and printhead adjustable device; It can adjust the height ofcleaning system and carriage at the same time, it could fit all kinds of cloth thickness, Flat board material.
13. Max printing thickness is 30mm.
14.Standard tension rail take-up system, Auto take-up system.
15. Intelligent vertical location in the front and back.
16.Special anti-collision mechanism for carriage, lengthen the lifetime of printhead.
Roll To Roll Flatbed Inkjet Printer
Roll To Roll Flatbed Inkjet Printer
1. Digital Inkjet Printers of Flatbed Inkjet Printer
1) Eco solvent Printer :SE-1301/ SE-1601/HE-1801
2) Sublimation Printer :SE-1301S/SE-1601S/HE-1801S
3) Textile Direct Printer:HBE-1801/HCE3202
And also supply Infinity/Phaeton/Galaxy printer,printer cutter, heat press printer,etc.
2. Printer Boards of Flatbed Inkjet Printer
Mainboards: SPT 510 Print-head Board, SPT Interface Board, Power Convert Board,
Printhead Board
3. INK of Flatbed Inkjet Printer
Infiniti sk-4 ink, eco solvent ink, ink-mate sublimation ink, ink-mate water based ink, xaar solvent ink, Icontek ink, Phae ton ink etc.
4. Printheads of Flatbed Inkjet Printer
1)Xaar 126/40PL,126/80PL,128/200,128/360
2)KM512/42PL/14PL, KM1024
3)SPT510 35PL/50PL, SPT255 80PL,SPT1020/35PL
4)Skywalker-128, Polaris 512/15PL
5)Skywalker-128, Polaris 512/15PL
5. Spare parts(normal & special accessories):
Ink pumps, Filters, Ink cartridge, Cleaning valves, Solenoid valves, Dust-free products, Rasters(encoder strip), Data cables, Belts, Damper, Wiper, Blade, Capping station, Motors, motor gear, pulley,etc
2011-7-11 The 19th Shanghai International AD and Sign Technology Equipment Exhibition
2012-7-11 The 20th Shanghai International EXPO
2012-9-3 Guangzhou International AD & Sign Technology Equipment Exhibition
2012-11-7 Indonesia International AD & Sign EXPO
2013-3-7 Guangzhou International AD&SIGN EXPO
2013-7-10 2013 Guangzhou Construction EXPO
2013-7-13 The 21st Shanghai Int’l Ad & Sign Technology & Equipment EXPO
2013-9-2 2013 D-PES Sign EXPO Autumn Guangzhou
2014-2-25 DEPS exhibition
2014.21-24 2014-7-3 Shanghai Int’l Ad & Sign Technology & Equipment EXPO
2014-9-3 Guangzhou D'PES Exhibition
2014-11-1 Guangzhou Leather Exibition
2014-11-19 Guangzhou FESPA Exibition
Our Techicians' Visa ,they go though the world for our sole agents and other clients' machine training and service.
Roll To Roll Flatbed Inkjet Printer
Roll To Roll Flatbed Inkjet Printer

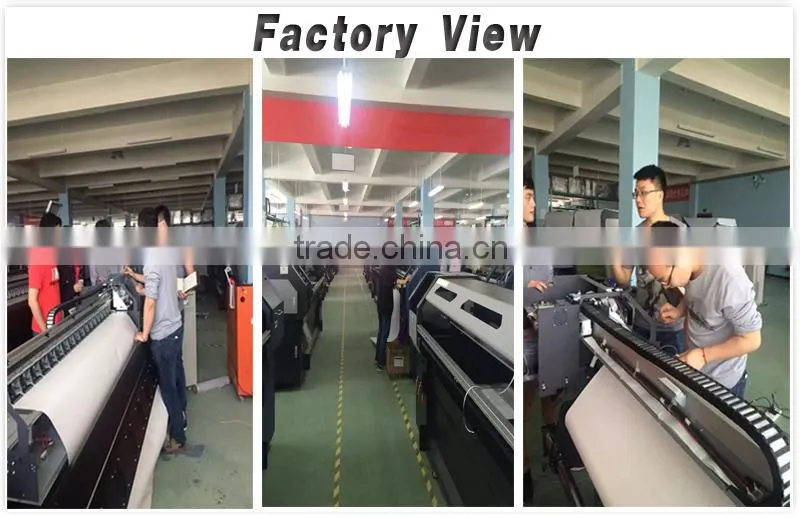

We have our own company office,Factory and warehouse,Welcome to visit.Also we can show you our clients factory,to check the usage condition of our Garros products.--
Roll To Roll Flatbed Inkjet Printer
Roll To Roll Flatbed Inkjet Printer
Flatbed Inkjet Printer/ Flatbed Inkjet Printer/ Flatbed Inkjet Printer/ Flatbed Inkjet Printer/ Flatbed Inkjet Printer
Warranty and After Service OF our printer
1) 12 months trouble-free warranty and online support, if it's hard to solve ,we can fly to your country for checking and repair.
2) There are complete English video and user manuals to guide you easily install, operate and maintain the screen printing machine prices.
3) We also warmly welcome you to visit us for free training (installation, operation, and maintenance).
Roll To Roll Flatbed Inkjet Printer
