Digital automatic roller konica solvent printing printer

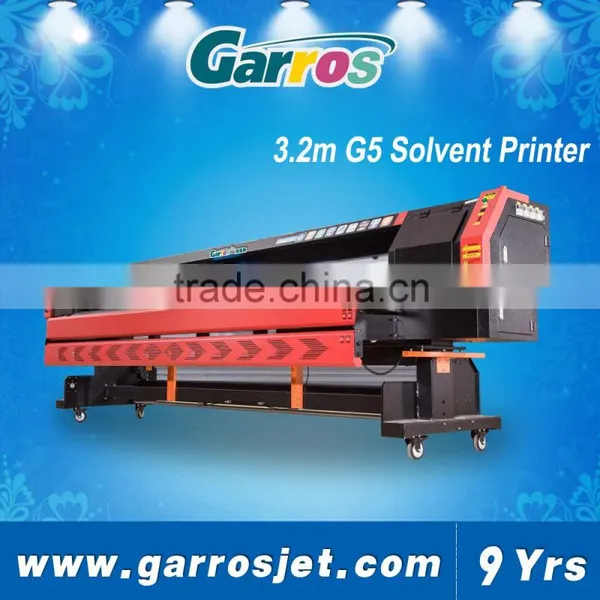

| Product Name | GARROS G5 SOLVENT PRINTER | ||||
| Maximum Print Width | 3200mm (10.5ft) | ||||
| Printing Resolution | 480DPI (Physical) | ||||
| Product Model | 4H | ||||
| KM512I-30PL Printhead (4 head) | 480X360dpi 2pass | 120sqm/h | |||
| 480X540dpi 3pass | 90sqm/h | ||||
| 480X720dpi 4pass | 60sqm/h | ||||
| KM512 Printhead(4head or 8head) | KM512-42PL-8H | KM512-42PL-4H | |||
| 180X720dpi 2pass | 80smq/h | 360X1080dpi 3pass | 56sqm/h | ||
| 240X720dpi 2pass | 60sqm/h | 360X1440dpi 4pass | 42sqm/h | ||
| 240X1080dpi 3pass | 40qm/h | 720X1440dpi 4pass | 22sqm/h | ||
| Ink | Type | Low Solvent Ink | |||
| Color | 4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM) | ||||
| Capacity | 5L Per Main Tank of Each Color | ||||
| Ink Supply System | Low Ink Detector, Auto or Manual Ink Supply System | ||||
| Media | Width | 3300mm (10.8ft) | |||
| Type | Vinyl, Flex, Back-lit Film, Window Film, etc | ||||
| Media Feeding System | Equipped (Max. Media Weight 120kg ) | ||||
| Auto Cleaning System | Positive Pressure Cleaning Anti-clogged Flash Function & Capping System | ||||
| Heating & Drying System | Equipped (Drying System Optional) | ||||
| Clamp | Equipped | ||||
| Print Interface | USB2.0 | ||||
| Printhead Height | 2 to 4 mm Above Media Adjustable | ||||
| RIP Software | PhotoPRINT10.5 or Maintop V5.30 | ||||
| Input Power | AC 220V, 50Hz | ||||
| Operation Environment | Temperature: 20~28℃ Humidity: 40%~60% | ||||
| Machine Dimension | L4,360x W790 x H1,170 mm; Net Weight: 700Kgs | ||||
| Package Dimension | Dismantle package: L4820 x W1000 x H1050mm | ||||
| Normal Package: L4820 x W1000 x H1570mm; | |||||
Gross Weight: 820Kgs; Four units in one 20 feet container. | |||||
solvent printing printer
1- Accept 4/ 8 pcs Konica 512/ 512i print head.
2- Fast Speed: 120sqm/h or 240sqm/h
3- Brighter color than SPT printhead printer
4- Specially designed left and right steel side boards. It enable machine body bear for maximum 2tons weight.
5- The latest carbon fiber technology three-stage heating system.
6- Standard leadshine 200W servo motor.
Are you first time to buy online abroad ?
Don't worry !
SEND INQUIRY
We will help you to close the order without any trouble !
What main products we can supply you?
A) Eco Solvent Printer from 1.6m(5 ft ) to 3.2m ( 10ft) wide . SEND INQUIRY
B) Large Solvent Printer with Infinity/ Challenger/ Phaeton/FY-Union brands. SEND INQUIRY
C) Printing Ink of UV / Eco Solvent / Sublimation / SK-4 solvent / Pigment / Water based . SEND INQUIRY
D) Printer head of Dx4/Dx5/Dx7 / spt510 /spt 255/ km512 .SEND INQUIRY
E) Printing Materials of printing media, flex banner, vinyl sticker, PP paper, one way vision, mesh,transfer paper ,etc. SEND INQUIRY
ZhenFeng Technology Co., Ltd
1)Year of establishment:
Was established since 2006, with over 8 years experiences in manufacturing and supplying digital printers and consumables.
2)Exclusive distributors in globle:
Sole agents are located in UK, Madagascar, Indonesia, Philippine, Malaysia etc.
3)We attend every year's exhibition in China and abroad
From 2006 to 2015, every year's exhibition we attend for exhibiting digital inkjet printer, fabrics printer, UV printers, etc.
Solvent printing printer Packing Details:
Package size: L4820mm x 1000mm x 1570mm
Package weight: 820kgs
Solvent printing printer Shipping Way:
1. By Express: HKEMS, DHL, UPS, FEDEX, TNT, etc.
2. By Air: LOS BY TK/EK(Nigeria ), DHL, UPS, FEDEX,TNT, etc.
3. By Sea: MSC, OOCL, COSCO, CHINASHIPINGLNG, APL, CMACGM, etc.
Garros Engineers abroad for Garros printers installation, training and maintanence.
1) Technology support:
Home installation and training are available, to enhandce the abilities of printer opertation and improve the problems solving comprtence. solvent printing printer
2) Free Training Course:
We offer free technicial training for 7 working days once you buy our machines.
3) Long Warranty Guarantee:
13 months trouble -free warranty, to ensure the excellent machine and redue maintennance cost. If exceed the warranty,we still will offer the free service for you, on condition of all the spare parts expense should be bear by the buyers. solvent printing printer
4) Life - long maintenance:
To ensure the normal operation of the equipment, send the problems to sales representative, they will settle the non-technical problems firstly, then forward the technical problems to engineers. the solution will be provided within 2 working days.
solvent printing printer
