Home > Products > Nylon Hose > hot selling high level new design PA12 nylon tubing

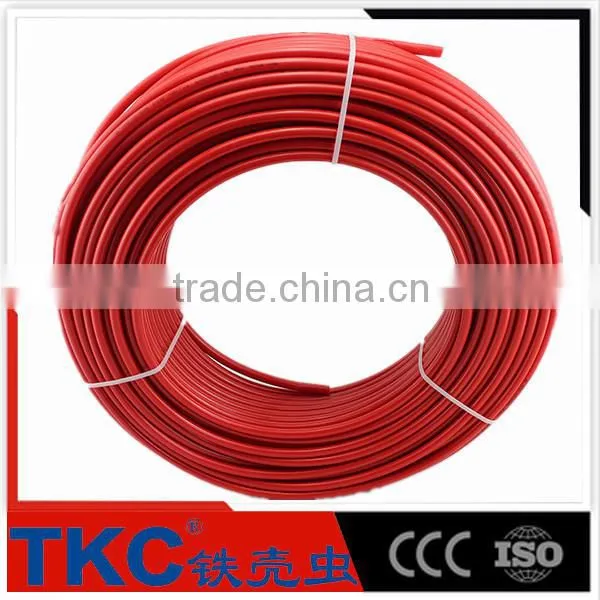

hot selling high level new design PA12 nylon tubing
- 200 Meter / Meters per Month
- Ningbo
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TKC nylon tubing | Model Number: | nylon tubing |
Material: | Other, Nylon, nylon | Specification: | 3mm-23mm | Thickness: | 0.5mm-2mm |
Standard: | 3c |
Product Description
Specifications
nylon tubing1,Material:nylon
2.High quality
3.Competitive price
4.Free samples
hot selling high level new design PA12 nylon tubing
Feature of nylon tubing
TKC nylon tube is the most stable chemical and physiical properties in normal nylon material. |
Product specification of nylon tubing
Size(OD.×Wall Thickness) | 14×1.5 | 12×1.5 | 10×1.25 | 10×1 | 8×1 | 6×1 | 5×1 | 4×0.75 |
Working Pressure | 20°c/2.2MPa/cm² | 20°c/1.9MPa/cm² | 20°c/1.9MPa/cm² | 20°c/1.6MPa/cm² | 20°c/1.9MPa/cm² | 20°c/2.7MPa/cm² | 20°c/2.9MPa/cm² | 20°c/2.7MPa/cm² |
Bursting Preesure | 20°c/5.6MPa/cm² | 20°c/5.7MPa/cm² | 20°c/5.7MPa/cm² | 20°c/4.5MPa/cm² | 20°c/5.7MPa/cm² | 20°c/8.1MPa/cm² | 20°c/8.7MPa/cm² | 20°c/5.2MPa/cm² |
Abrasion | 42mg | 42mg | 42mg | 42mg | 42mg | 42mg | 42mg | 42mg |
Hardness | 75D±5 | 75D±5 | 75D±5 | 75D±5 | 75D±5 | 75D±5 | 75D±5 | 75D±5 |
Tensile Strength | 120KGF | 98KGF | 68KGF | 57KGF | 40KGF | 32KGF | 22KGF | 12KGF |
Bending Radius | 80mm | 67mm | 60mm | 62mm | 48mm | 37mm | 25mm | 18mm |
Packaging and Shipping
Delivery 10-15 days after the deposit |
TT 30% deposit in advance , 70% balance before delivery |
ESCROW, L/C , D/A , D/P , T/T ,Western Union , MoneyGram ,Paypal |
plastic bag , plastic film , cardboard reel , plastic reel , pallet , wooden case , carton |
We can supply free sample and freight collect.
If you need any information or have any question, please contact us.
Mobile: 0086-15957489936
Skype: Risa-TKC nylon tube
NingBo TCK Tube Industry Co., Ltd has been specializing in nylon tubing since 1998. For 10 years, we have grown to be a leader in the development and production of high-performance nylon products. Our products include nylon tubing, air brake coils and electrical coils. See our product pages for details and specifications.
We aim to provide customers with quality products and outstanding service that today's market demands. With highly experienced staff, we can understand your demands and provide the best solution.
Up to now, our products have been exported to USA, UK, Belgium, Japan, South Korea, UAE, Saudi Arabia, Iraq, Thailand and Malaysia.
workshop of nylon tubing
