Made in Ningbo Factory Super Quality PA11 Nylon Tubing

FOB Price

Negotiable / Meter

5000 Meters(Min. Order)

Port Ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	TKC nylon tubing
Model Number	nylon tubing	Material	Other, Nylon, nylon
Specification	3mm-23mm	Thickness	0.5mm-2mm
Standard	3c

Product Description

Specifications

nylon tubing
1,Material:nylon
2.High quality
3.Competitive price
4.Free samples

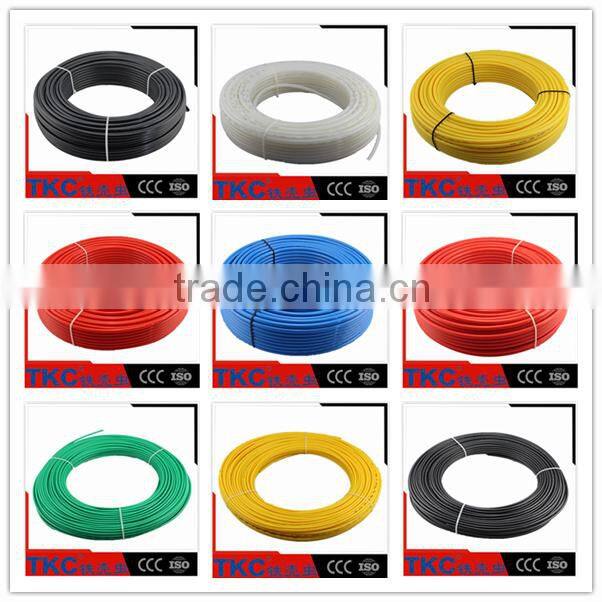

made in ningbo factory super quality PA11 nylon tubing

Product Description

Feature of nylon tubing

TKC nylon tube is the most stable chemical and physiical properties in normal nylon material.
Wear and Corrosion resistant,easy to bend and instal,
smooth surface,rust and fouling prevention,stable tensile and bending feature,dimensional stability,low permeability,
long service life and a wide range of application in air ,water,chemicals,lubricants,instrument lines,irrigation control systems,
textile mills,food plants,vehicles and ships fuel pipes,vacuum system,air-conditioning,brake systems of cars,trucks and talier,hydraulic system,the oscillationinsulators and other industries.
Maintain a flexible work properly in the temperature range of -40°c - 120°c

Product specification of nylon tubing

Size(OD.×Wall Thickness)	14×1.5	12×1.5	10×1.25	10×1	8×1	6×1	5×1	4×0.75
Working Pressure	20°c/2.2MPa/cm²	20°c/1.9MPa/cm²	20°c/1.9MPa/cm²	20°c/1.6MPa/cm²	20°c/1.9MPa/cm²	20°c/2.7MPa/cm²	20°c/2.9MPa/cm²	20°c/2.7MPa/cm²
Bursting Preesure	20°c/5.6MPa/cm²	20°c/5.7MPa/cm²	20°c/5.7MPa/cm²	20°c/4.5MPa/cm²	20°c/5.7MPa/cm²	20°c/8.1MPa/cm²	20°c/8.7MPa/cm²	20°c/5.2MPa/cm²
Abrasion	42mg	42mg	42mg	42mg	42mg	42mg	42mg	42mg
Hardness	75D±5	75D±5	75D±5	75D±5	75D±5	75D±5	75D±5	75D±5
Tensile Strength	120KGF	98KGF	68KGF	57KGF	40KGF	32KGF	22KGF	12KGF
Bending Radius	80mm	67mm	60mm	62mm	48mm	37mm	25mm	18mm

Packaging & Shipping

Packaging and Shipping

Delivery 10-15 days after the deposit

TT 30% deposit in advance , 70% balance before delivery

ESCROW, L/C , D/A , D/P , T/T ,Western Union , MoneyGram ,Paypal

plastic bag , plastic film , cardboard reel , plastic reel , pallet , wooden case , carton
