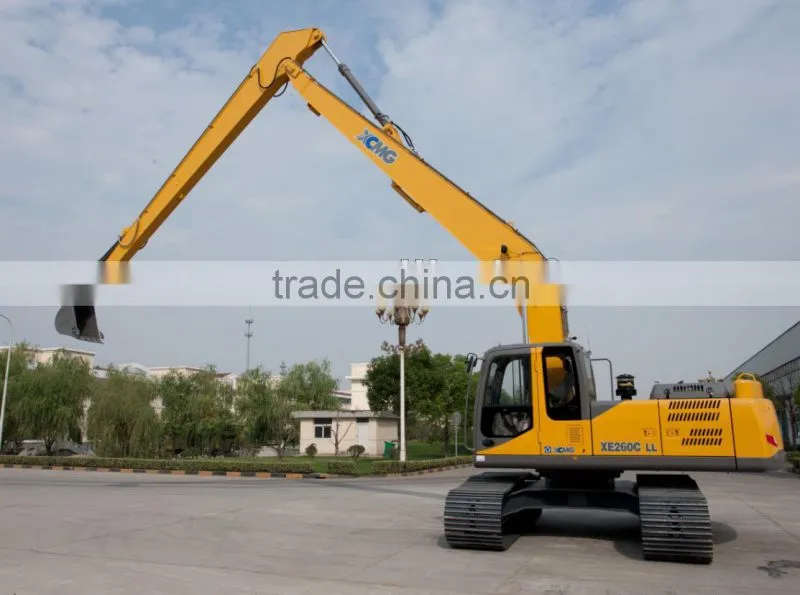

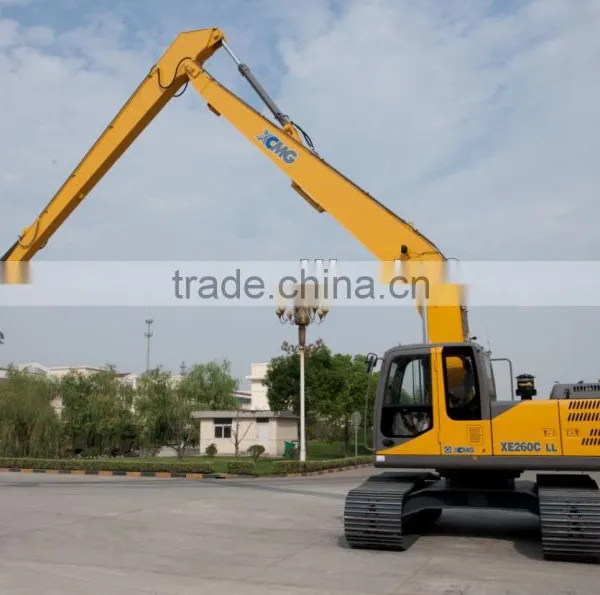

XCMG XE260CLL Crawler Excavator

Name: XCMG XE260CLL Crawler Excavator
Brand: XCMG
SKU: 101672375
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

XCMG

Model Number:

XE260CLL

Condition:

New

Jiangsu Sinma Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name XCMG

Model Number XE260CLL

Condition New

Moving Type Crawler Excavator

Operating Weight 27500kg

Bucket capacity 0.4

Maximum Digging Height 13800

Maximum Digging Depth 14915

Machine Weight 27500kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

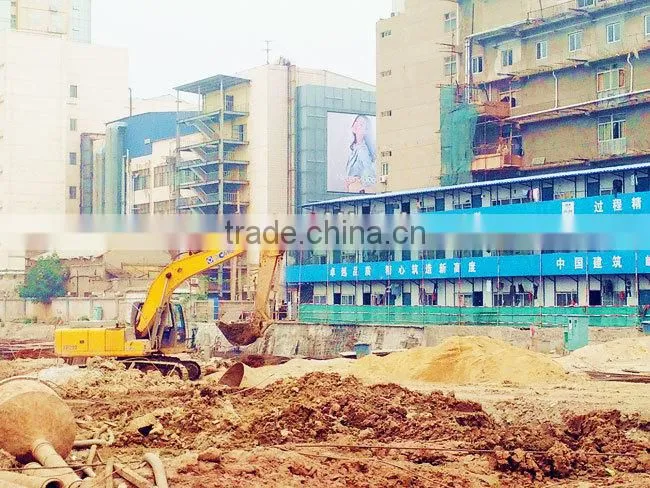

XCMG excavator is widely used in construction sites,mining,road construction and etc.

Model		Unit	XE260CLL
Operating weight		kg	27500
Standard bucket capacity		m³	0.4
Engine	Engine Model	/	ISUZU CC-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	128.5/2100
	Max. torque/speed	N.m	637/1800
	Displacement	L	6.494
The main performance	Travel speed	km/h	5.5/3.3
	Swing speed	r/min	12.1
	Max. gradeability	/	≥30
	Ground pressure	kPa	40.8
	Max.Bucket digging force	kN	70.7
	Max.arm crowd force	kN	41.3
	Max.traction force	kN	193
Hydraulic system	Main pump	/	2 plunger pumps
	Rate flow of main pump	L/min	2×231
	Max pressure of prime relief valve	MPa	32.3/34.4
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	23
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	240
	Engine lubrication	L	25
Overall dimensions	A Overall length	mm	13900
	B Overall width	mm	3390
	C Overall height	mm	3360
	D Overall width of upperstructure	mm	2830
	E Track length	mm	4640
	F Overall width of undercarriage	mm	3390
	G Crawer width	mm	800
	H Track length on ground	mm	3842
	I Crawer gauge	mm	2590
	J Clearance under counter weight	mm	1050
	K Ground clearance	mm	495
	L Min.tail swing radius	mm	2985
Working range	A Max. digging height	mm	13800
	B Max. dumping height	mm	11414
	C Max. digging depth	mm	14915
	D 8inch horizonal digging depth	mm	×
	E Max. vertical wall digging depth	mm	13917
	F Max. digging reach	mm	18258
	G Min. swing radius	mm	6740
	Angle of arm deflection	Degree
