Electric Privacy Film/self Adhesive Smart Glass Film/switchable Glass

Electric privacy film/self adhesive smart glass film/switchable glass

 Introduction:

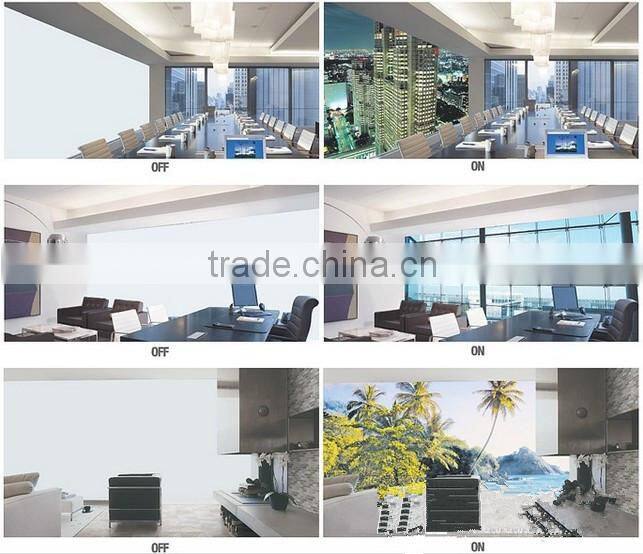

Smart glass is made with special technology by using decentralize micro-droplets polymerize substance to scatter light valve

thin time and clear glass. It uses the on-off feature of liquid crystal material to achieve a switch between clear and opaque

glasses, when power on it is clear, when power off is opaque.

Feature:


1. Security

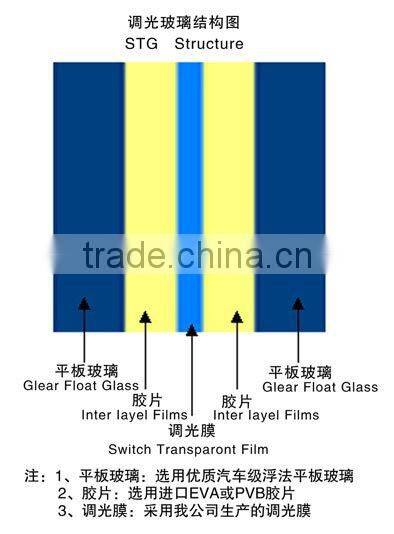

The using laminated film can tighly stick to the glass, even when it is struck and broken for the outer force, the glass frament

 will adhere firmly to the PVB film, thus to avoid the possibility of getting hurt.


2. Sound insulation

Middle laminated glass membrane have the sound insulation feature, which can effectively block out all kinds of noise.

3. Environmental protection


It can assist the air condition to economize energy and obstruct ultraviolet radiation.


4. It allows enough light even when opaque, tenders bright indoors.

Application:

Building windows, doors and skylights; Automobile, boat and windows; Appliance windows, screens and cell phone screens.

Technical Specification:

 Power Performance:

Operating voltage: AC60-75VFrequency: 50Hz ~ 60Hz

Amperage: In AC110V, 100mA/sqmElectric

Consumption: In A C110V, 5W/sqmswitching speed: Less than one second(from the opaque totransparent: 100ms; From

transparent to opaque: 400ms)

 Optical performance:

Operation mode: NO (transparent), OFF (opaque)

Visible light transmittance: Power on 75%, power off 10%

Light transmittance: ON 80%, OFF 60%

Haze coefficient: ON 3%, OFF 82%


UV Blocking: More than 98%

Visible angle: 130 degrees.

Working environment: - minus 20 to 65 Celsius degree

Working life: More than 10 years

Quality assurance: One year

 Package:

Export wooden package.
