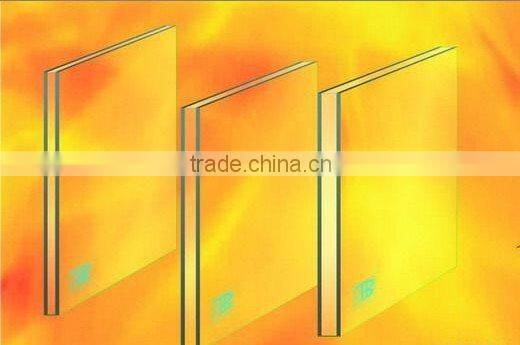

High quality 15mm Fire rated glass/ Fireproof glass/ Fire-resistant glass
We'll begin with some basic definitions. Just what is fire-rated glass? As the name implies, it is glass that has proven to offer a certain degree of protection in the face of fire. That may sound like a strange task for glass to perform. Obviously, glass can't extinguish a fire or warn a building's occupants that there's any danger. But fire-rated glass can help keep flames and smoke from spreading from one room to another. The official term for this is compartmentation, and it means that glass can play a vital role in restricting fire damage to a limited area.
1) Single layer/monolithic Fire Resistant Glass
It is type-C fire resistant glass of the fire-resistant integrity, which is characterized with high glass strength, good fireproof integrity, good smoke proof and weather resistance and so on. Specially, it’s mainly used in the outer walls of buildings. In the room it can prevent fire from spreading outward and outdoor fire spreading inward. Thickness is 5mm, 6mm, 8mm, 10mm, and 12mm etc.

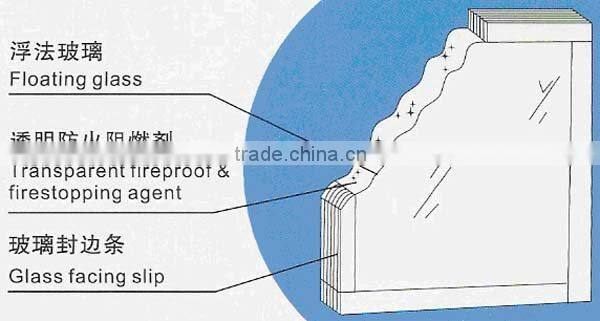

2) Complex fire resistant glass (Double/Multi-layers)
With the characteristics of heat-insulating type A fire resistant glass is highly transparent as well as fire-resistant and heat-insulating. Its thickness is 17mm(EI30), 22mm(EI60), 36mm(EI90), 42mm(EI120) and so on.
Technical parameters
|
British Standard BS 476 fire resistant glass doors (EI series)
According to British Standard BS476 Part22: 1987 request to manufacture doorframes, door leaves, the glass on door, fire-resistant seals on the door, hardware spare parts achieve even more than the British Standard requests, besides, it has already passed several items of 1987 Inspection of British Standard BS476 Part22! All products conform to the safe requirements of Hong Kong fire services department and buildings department. It is also suitable to be used in all countries and regions which permit BS476 the Part22: 1987 standard regulation.
E integrity of fire-resistant:
When the fire broke out at the time to maintain the integrity of fire, the fire does not cascade breathing Series
W Radiation:
Heat radiation intensity of the fire with glass
I insulation of fire-resistant:
It satisfies both fire resistance and heat insulation. Heat insulation means when there is a fire, the maximal elevating temperature of back fire surface is 180 degree C and its average elevating temperature isn’t more than 140 degree C.
Technical parameters
Type | Thickness (mm) | Fire-resistant and heat-insulting limit | Weight (m2) | Elevating temperature from the fire surface | Fire back surface max. average temperature |
EI120 | 42 ±2.0 | 120 mins | 52kgs | 1113 degree C | ≤ 129 degree C |
EI60 | 26 ±1.5 | 60 mins | 45kgs | 925.3 degree C | ≤ 60.5 degree C |
EI30 | 16 ±1.3 | 30 mins | 35kgs | 826.7 degree C | ≤ 74.6 degree C |
Payment Terms:L/C,D/P,T/T,Westem Union,MoneyGram,Cash
About sample:
delivery time:sample for 7~10 working days and order for 20~30 working days
1.with carton +poly foam packing
2.with wooden pallet packing
3.with export wooden case packing
4.other packing methods by customs‘requirement
1.Our factory is a professional manufacturer of gift and rich experience and technology.
2.Complete Hardware facilities.
3.Diversification of product range.
4.we are OEM, price should be cheap.
5.High quality with the best services.
Should you are interested in our products ,or any questions about the mirror ,pls kindly let me know .
You can call : 0086-20-37036163/65-610 or contact me by skype:lawlepond .Tks!
1.Q:Are you factory in China?
A:Yes,we are.
2.Q:What is your MOQ?
A:200 m² for the first order,then one 20 GP container at least.
3.Q:How to get a quotation?
A:We need some information,such as size,color ,thickness,quantity,edge, etc.
4.Q:What is your delivery time?
A:2~4 weeks after receiving the deposit.
Welcome to inquire our products-glass.
Please tell me your requirements about the tempered glass, such as Size, thickness,
and how many pieces you need.
Once received your inquiry, we will provide you with our quotation as soon as possible.
Guangzhou Lepond Glass Co.,Ltd is a company specialized in deep-processing glass and glass wholesale of various glass products. It locates in one of the most active economical area in Guangzhou, Guangdong Province. Our company is a well-equipped one and owns a number of years' experienced high-quality staff who engaged in glass technology R&D. With the newly developed products at home and abroad, we aim to provide products and services of good quality products, to deliver punctually and to fully make our customers satisfied. Because of our abundant financial resources, good quality equipments, advanced technology and the ability of strong innovation, our products has passed 3C (China Compulsory Certification) national certification as well as ISO9001:2000 quality system certification.
