Home > Lights & Lighting > Bulb & Lamp > Ultraviolet Lamp > LED UV Curing / Drying System

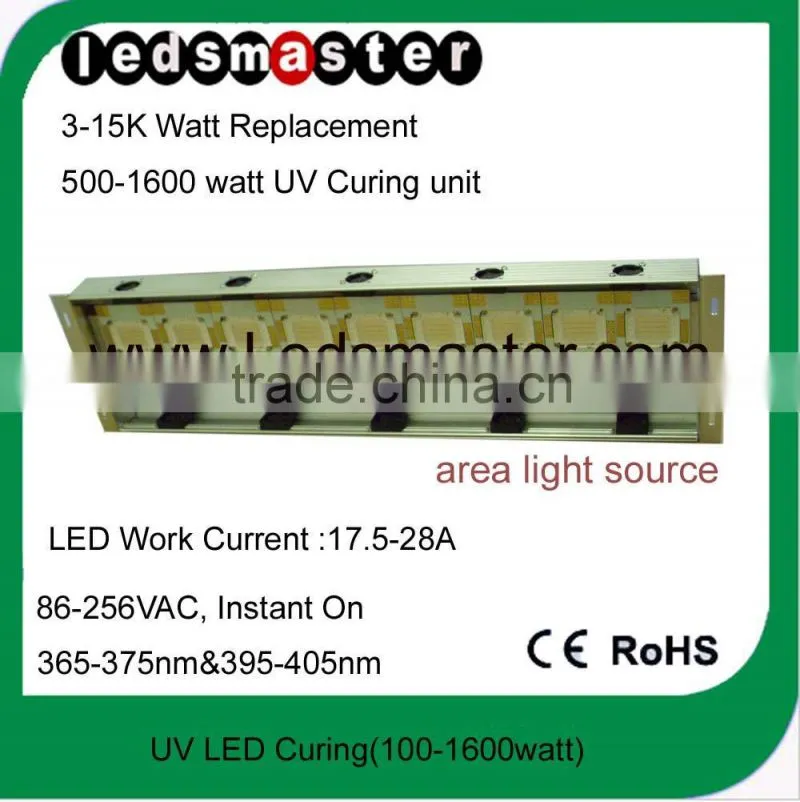

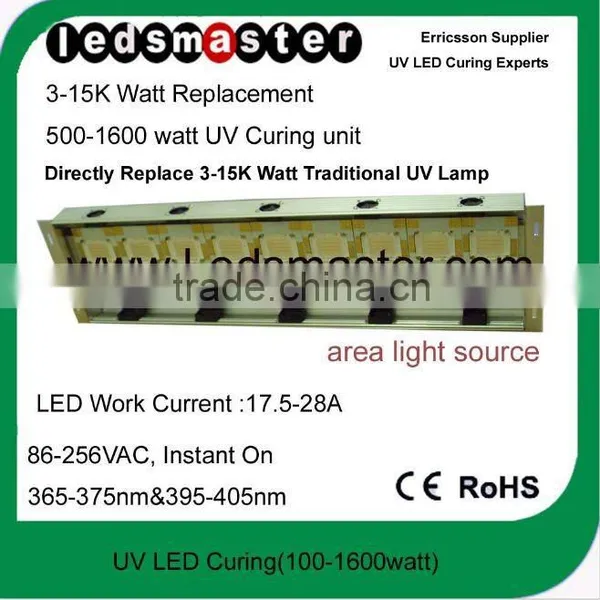

LED UV Curing / Drying System

Name: LED UV Curing / Drying System
Brand: Ledsmaster
SKU: 101660465
Availability: InStock

LED UV Curing / Drying System thumbnail-1

US$ 500 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ledsmaster

Model Number:

LS-UVC Series

Contact Supplier Request Quote Chat Now

Ledsmaster Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ledsmaster

Model Number LS-UVC Series

Rated Power LED UV curing

Voltage 220V

Specifications

LED UV curing,Save power, long life, green energy

The Highest Power UV LED curing Manufacturer in the world

100-2000WATT UV LED curing for your choose.

Foucs on Area light source.

365-375nm&395-405nm UV LED Curing.

UV LED area light source curing system

Unlike traditional UV lamps, which limits on heat sensitive materials and an external fan system is needed. This area light source offers industrial strength curing with a large illumination area for high process throughput, while ensuring uniform intensity from the center to the edge and enables printing on almost all kinds of substrates even on thin film, thin plastics, foam plastic (ceiling tile), paper, and leather.

Unique Features and Benefits:

Extra-long guaranteed life: 20000+ hours , provides lower cost of ownership
Instant on/off
Narrow UV output spectrum
High intensity, emits no heat- able to cure heat sensitive materials
Maximum UV intensity up to 4000mW/ cm2
Eco-friendly, mercury and ozone free
Compact - Easily embedded into automated manufacturing lines and equipment
No serious safety concerns associated with conventional UV curing lamps
Five working modes: constant current, PWM, step, intelligent optical and manual modes, which are specially designed for eliminating cementing stress of UV adhesives
Many kinds of circuit technique design (patented). The whole system will not be affected by the damage of one LED module.
Uniformly arrayed LED and optimal designed lens groups guarantees uniform and stable irradiation, the intensity change from the center to the edge is no more than 3%.
