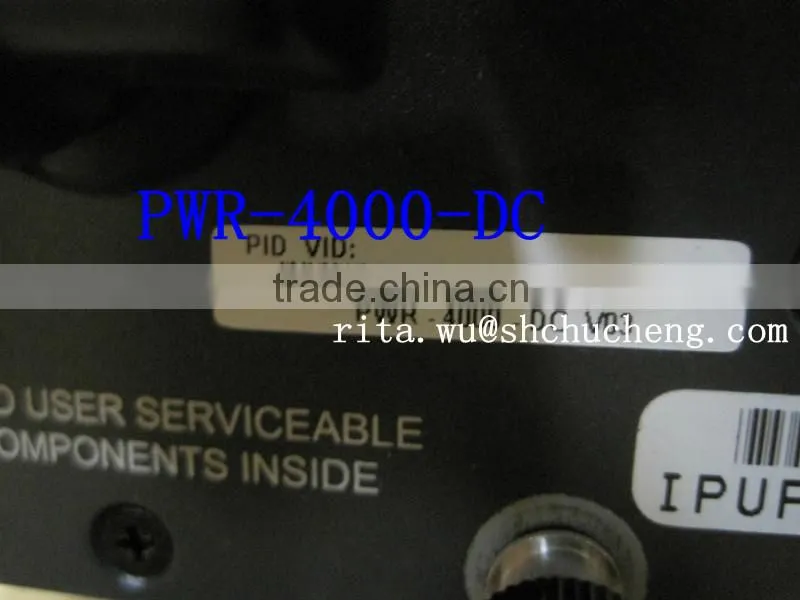

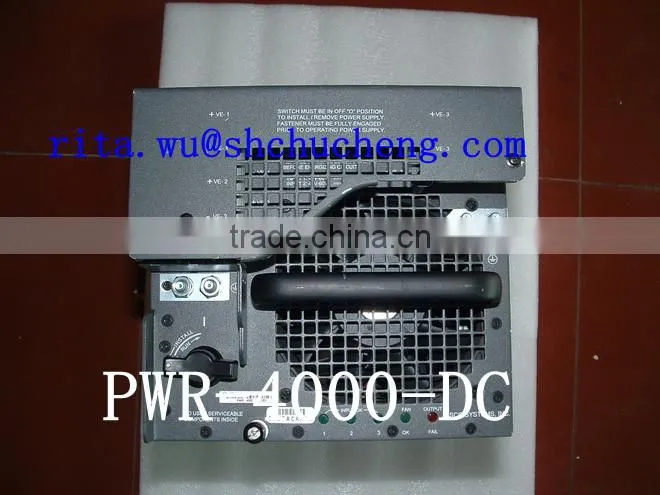

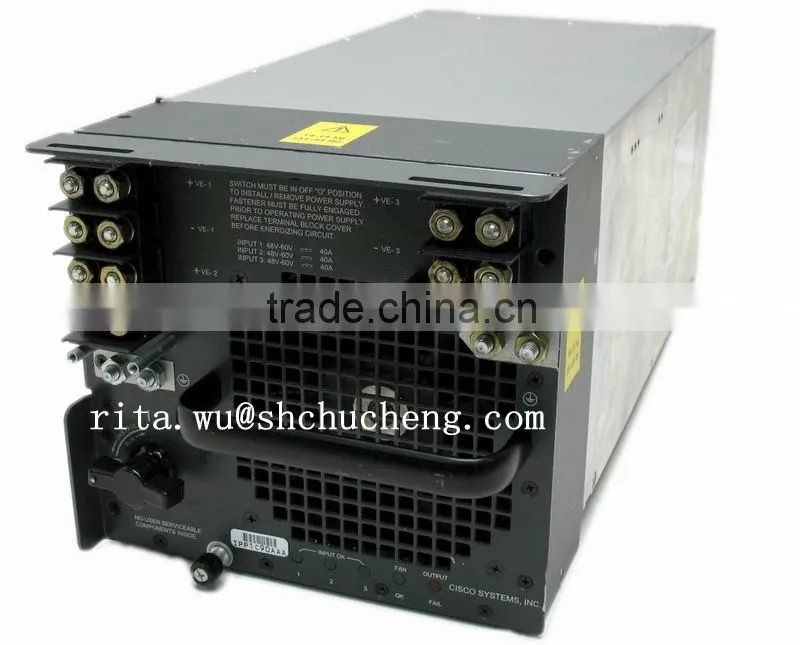

Help CenterCisco 6500 Switches Module PWR-4000-DC Cisco 6500 Series
Related Products
-
Cisco Switching Power Supplies PWR-4000-DC=US$ 1 - 2,900MOQ: 1 Piece -
Cisco 7600 Series PWR-4000-DC CISCO 7600 Modules PowerUS$ 1 - 2,900MOQ: 1 Piece
-
CISCO Power Supply PWR-4000-DC=US$ 1 - 2,900MOQ: 1 Piece
-
4000w Cisco DC PowerUS$ 1 - 2,900MOQ: 1 Piece
-
Power Inverter 4000w Cisco Power Supply PWR-4000-DC=US$ 1 - 2,900MOQ: 1 Piece
Specifications
1. Heat dissipation: 17,730 BTU/hour (approx.)2. Weight: 30.8 lb (14.0 kg)
PWR-4000-DC are supported in the following Catalyst 6500 series switches:
•Catalyst 6506
•Catalyst 6506-E
•Catalyst 6509
•Catalyst 6509-E
•Catalyst 6509-NEB
•Catalyst 6509-NEB-A
•Catalyst 6509-V-E
•Catalyst 6513
•Catalyst 6513-E
4000 W DC-Input Power Supply Specifications
Specification |
Description |
|---|---|
DC-input voltage |
•-48 VDC @ 37 A for nominal -48 V battery backup system (operating range: -40.5 VDC to -56 VDC) •-60 VDC @ 29 A for nominal -60 V battery backup system (operating range: -55 VDC to -72 VDC) Note The 4000 W DC-input power supply requires two source DC-inputs to be connected; it cannot operate with only one positive (+)/negative (-) source DC terminal pair installed. |
DC-input current |
40 A per each DC input (three inputs) Note For multiple DC input power supplies, each DC input must be protected by a dedicated circuit breaker or a fuse. The circuit breaker or the fuse must be sized according to the power supply input power rating and any local or national electrical code requirements. |
Power supply output capacity |
•4000 W with three inputs active •2700 W with two inputs active Note The 4000 W power supply cannot operate with only one source DC-input connected. |
Power supply output |
•15 A @ + 3.3 VDC •5 A @ + 5 VDC •12 A @ +12 VDC •90.63 A (three inputs) or 59.68 A (two inputs) Note The 4000 W power supply cannot operate with only one source DC-input connected. |
DC input terminal block |
Accepts 4 AWG copper conductors. Actual size of the wire needed is determined by the installer or local electrician. |
Output holdup time |
8 ms |
kVA rating1 |
5.4 kVA maximum |
Heat dissipation |
17,730 BTU/hour (approx.) |
Weight |
30.8 lb (14.0 kg) |
The kVA rating listed for the power supply should be used as the sizing criteria for both UPS outputs as well as standard circuits and transformers to power a switch. |
hassis Support for the 6000 W AC-Input and DC-Input Power Supplies
Catalyst 6500 Series Chassis |
6000 W AC-Input Power Supply Restriction |
6000 W DC-Input Power Supply Restriction |
|---|---|---|
Catalyst 6506 |
Output limited to 4000 W |
Output limited to 4000 W |
Catalyst 6506-E |
No restrictions |
No restrictions |
Catalyst 6509 |
Output limited to 4000 W |
Output limited to 4000 W |
Catalyst 6509-E |
No restrictions |
No restrictions |
Catalyst 6509-NEB |
Output limited to 4000 W |
Output limited to 4000 W |
Catalyst 6509-NEB-A |
Output limited to 4500 W |
Output limited to 4500 W |
Catalyst 6509-V-E |
No restrictions |
No restrictions |
Catalyst 6513 |
No restrictions |
No restrictions |
Catalyst 6513-E |
No restrictions |
No restrictions |
