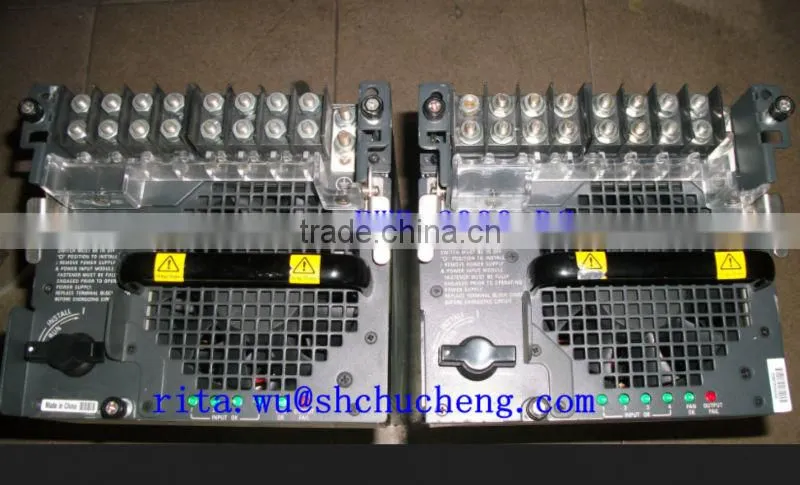

6000w Dc/ac Power Inverter Cisco Power Supply PWR-6000-DC

Name: 6000w Dc/ac Power Inverter Cisco Power Supply PWR-6000-DC
Brand: CISCO
SKU: 101657699
Availability: InStock

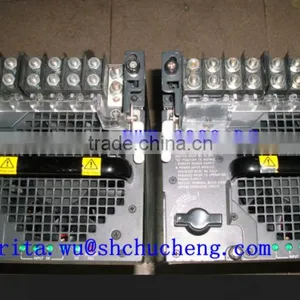

6000w Dc/ac Power Inverter Cisco Power Supply PWR-6000-DC thumbnail-1

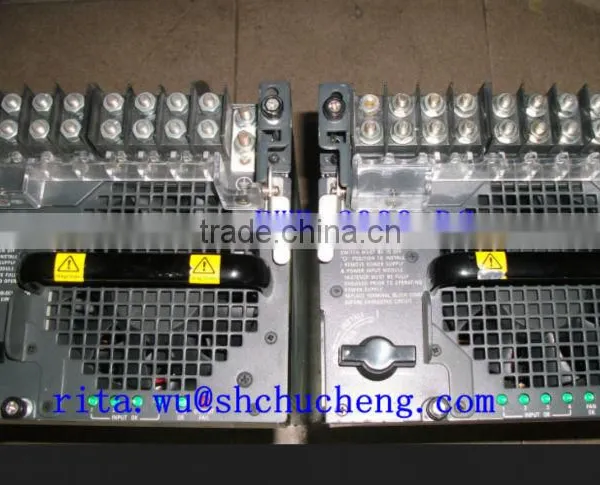

6000w Dc/ac Power Inverter Cisco Power Supply PWR-6000-DC photo-1

US$ 1 - 2,900 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

CISCO

Model Number:

PWR-6000-DC

Contact Supplier Request Quote Chat Now

Shanghai Chu Cheng Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name CISCO

Model Number PWR-6000-DC

Specifications

1. 6000W operation (four DC inputs)
2. 24,100 BTU per hour at maximum 6000W load

Product Description

Multiple-Input 6000 Watt DC Power Supply with 2800W and 4500W Options

Cisco is now offering a new 6000-watt (W) DC power supply for the Cisco 6500 Series switches and 7600 Series routers. This new variable-output supply cales from 2800W to 6000W.

Cisco 6500 and 7600 Series 6000W DC Power Supply

Feature Advantages

• Variable output design configurable for 6000W, 4500W, or 2800W output corresponding to four, three, or two inputs active

• An efficiency of greater than 85 percent over 30-to-100-percent loads

• Equally sized, multiple inputs, which allow lower fusing requirements and maintain consistent wire gauge between 6000W, 4500W, and 2800W output configurations

• Industry-standard dual post terminals

• Terminal design that includes removable input power adaptor modules for easy power replacement without the time-consuming removal and reinstallation of multiple terminal lugs

• Locking latch mechanism to prevent accidental removal of power adapter module while the power is on

• Terminal design that facilitates cable entry from left or right side

• Designed for 45-degree-angle terminal lugs; ships with nine 45-degree-angle lugs and American Wire Gauge (AWG) #4 cables

• Compatible with the Cisco 6506, 6506E, 6509, 6509E, 6509VE, 6509NEB-A and 6513 switches

• Compatible with the Cisco 7609-S, 7609, and 7613 routers

• Compliant with Network Equipment Building Standards (NEBS) Level 3

Technical Specifications

Table 1 gives the technical specifications for the Cisco 6500 and7600 Series 6000W DC Power Supply.

Table 1. Technical Specifications

Feature	Specification
Power Supply Output Capacity	6000W with four inputs active 4500W with three inputs active 2800 with two inputs active
Maximum Heat Dissipation	24,100 BTU per hour at maximum 6000W load 18,100 BTU per hour at maximum 4500W load 11.200 BTU per hour at maximum 2800W load
DC-Input Voltage	-48 VDC nominal at 37A in North America (operating range: -40.5 VDC to -56 VDC) -60 VDC nominal at 30A for international (operating range: -55 VDC to -72 VDC)
DC-Input Current	40A per each DC input at -48 VDC input voltage (total of four inputs)
Power Supply Output	2800W operation (two DC inputs) • 25.0A at 3.3 VDC • 12.0A at 12 VDC • 61.2A at 42 VDC 4500W operation (three DC inputs) • 25.0A at 3.3 VDC • 12.0A at 12 VDC • 101.9A at 42 VDC 6000W operation (four DC inputs) • 25.0A at 3.3 VDC • 12.0A at 12 VDC • 137.4A at 42 VDC
DC Input Terminal Block	Accepts 2-hole copper compression-type conductors (Actual size of the wire needed is determined by the power engineer or local electrician in accordance with national or local electric codes.)
Output Holdup Time	8 ms
Lugs Required	Industry-standard 2-hole compression lug; accepts up to AWG #2; ships with nine 45-degree-angle lugs and AWG #4 cables
Hex Nut with Integrated Washer	1/4 inch - 20
Chassis Compatibility	Cisco 6506, 6506E, 6509, 6509E, 6509VE, 6509NEB-A, 6513 switches Cisco 7609-S, 7609, and 7613 routers
Minimum Software Support	Cisco IOSSoftware Release 12.2(33)SXF13, 12.2(33)SXH1 and 12.2(33)SXI for 6500 Series Cisco IOSSoftware Release 12.2(33)SRA for 7600 Series
