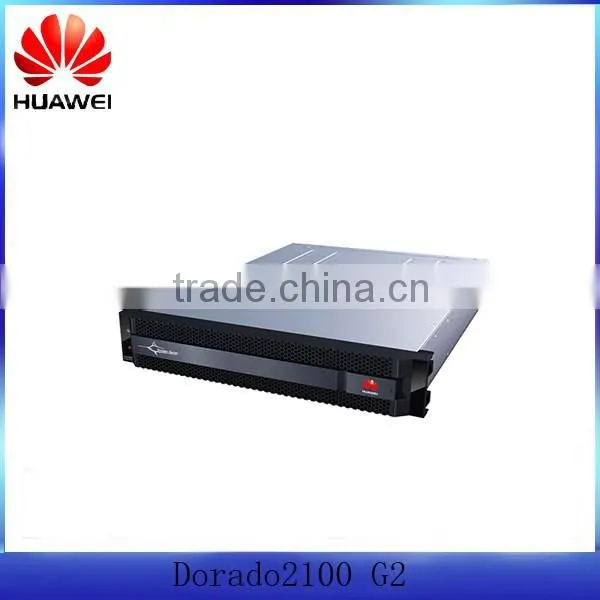

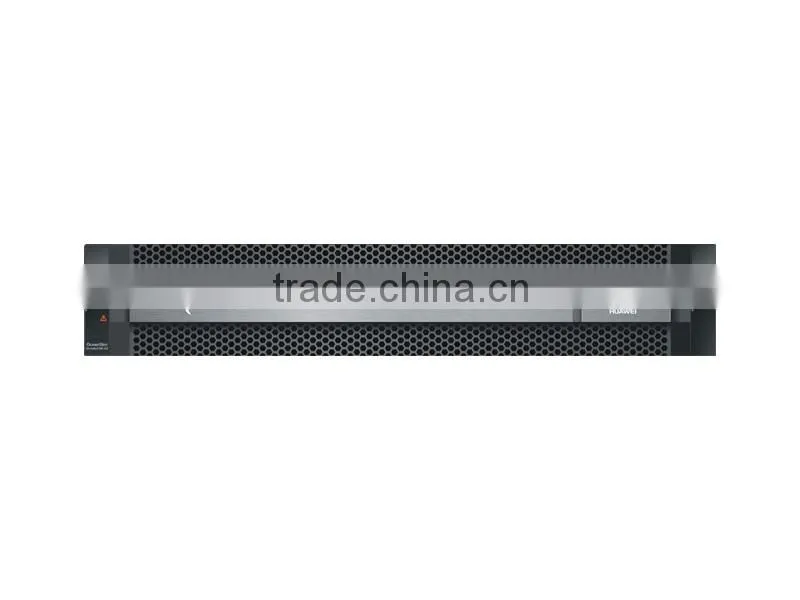

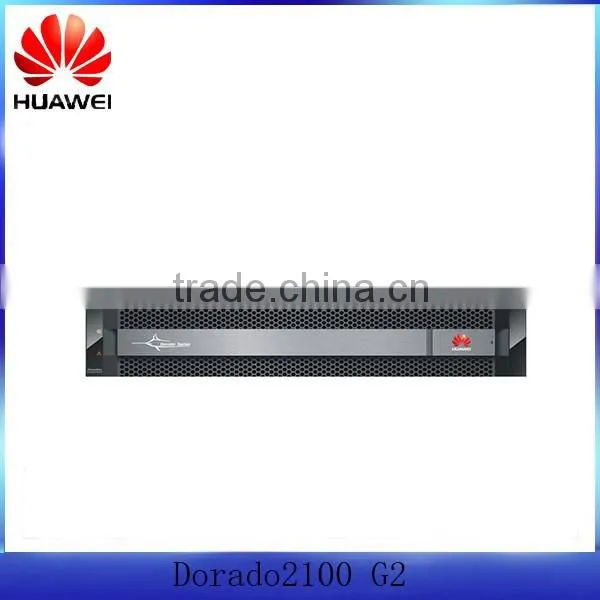

Best price Huawei original Storage server OceanStor Dorado2100 G2
The Huawei OceanStor Dorado2100 G2 (Dorado2100 G2) is a Storage Area Network (SAN)-based, solid state storage product designed for the enterprise-level, high-performance storage market. The Dorado2100 G2 features full-SSD architecture and employs advanced cache management and I/O scheduling mechanisms. It offers an ideal choice for performancedemanding storage scenarios such as databases, Virtual Desktop Infrastructure (VDI), and high-performance computing.
Outstanding Performance
High IOPS: the Dorado2100 G2 delivers performance of up to 600,000 Input/Output Operations per Second (IOPS), equivalent to the performance of a traditional disk array consisting of 1,500 15k RPM SAS disks.
Excellent responsiveness: access latency as low as 500 μs is only 5% that of traditional disk arrays.
Reliability
Dual-controller architecture: active-active dual controllers implement redundancy and load balancing, ensuring high service reliability.
Component redundancy design: redundant power supplies, fans, controllers, interface modules, SSDs, and Backup Battery Units (BBUs) eliminate single points of failure while supporting hot swaps and online I/O expansion.
Media protection: wear leveling, bad-block repair, and random scrambling code technologies can dramatically prolong storage media service life with a Mean Time Between Failure (MTBF) greater than
one million hours.
System protection: the Dorado2100 G2 supports RAID 0, 5, and 10; global hot spare disks; and data pre-copy for faulty disks.
Economy and Efficiency
Low power consumption: the typical 580W system power consumption saves up to 90% of power compared with traditional, performance- equivalent disk arrays.
Small footprint: compared with traditional disk arrays, the Dorado2100 G2 saves 95% of cabinet footprint but has the same performance, dramatically reducing cabinet purchasing costs.
Intelligent thin provisioning: automatic capacity expansion improves disk utilization and implements on-demand disk purchasing, reducing the initial purchase cost.
Ease of Use
Simplified management: user-friendly management and maintenance mechanisms support GUI and CLI modes and provide alarm notification by sound, short message, and email.
Intelligent service life monitoring for SSDs: the Dorado2100 G2 constantly monitors the operating status of SSDs and notifies exceptions detected in real time, helping ensure application reliability.
Easy deployment: the Dorado2100 G2 uses a standard SAN form without changing existing IT architecture, and protects users’ original investment.
| Model | Dorado2100 G2 |
| Hardware Specifications | |
| Number of controllers | 2 |
| Controller working mode | Active-Active |
| Front-end host port |
8 Gbit/s Fibre Channel/10 Gbit/s iSCSI (ToE)/ 40 Gbit/s InfiniBand QDR |
| Number of onboard I/O ports | 8 x 8 Gbit/s Fibre Channel |
| Supported maximum number of I/O modules | 2 |
| Expansion I/O module |
4 x 8 Gbit/s Fibre Channel/4 x 10 Gbit/s iSCSI (ToE)/ 2 x 40 Gbit/s InfiniBand QDR |
| SSD Type |
SLC: 100G/200G eMLC: 200G/400G |
| Supported maximum number of expansion disk enclosures | 3 |
| Performance | |
| Bandwidth | 10 GB/s |
| IOPS | 600,000 |
| Access latency | 500 μs |
| Software Features | |
| RAID Level | 0, 5,10 |
| Maximum number of hosts | 512 |
| Maximum number of LUNs | 2,048 |
| Multi-pathing software | UltraPath |
| Physical Specifications | |
| Power supply | AC: 100V to 127V or 200V to 240V |
| Typical power consumption |
2U controller enclosure: 580W 2U disk enclosure: 295W |
| Dimensions (H x W x D) |
2U controller enclosure: 86.1 mm x 446 mm x 582 mm (3.39 in. x 17.56 in. x 22.91 in.) 2U disk enclosure: 86.1 mm x 446 mm x 412 mm (3.39 in. x 17.56 in. x 16.22 in.) |
| Weight |
2U controller enclosure: 32.5 kg (with 25 HSSDs) 2U disk enclosure: 24.5 kg (with 25 HSSDs) |
| Operating ambient temperature |
5°C to 40°C at an attitude lower than 1,800m 5°C to 30°C at an altitude between 1,800m and 3,000m |
| Operating ambient humidity | 5% RH to 95% RH |
1) We can provide detail documents and remote help for device installation and configuration.
2) Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3) Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
ChuCheng Information Technology Co., Ltd. ,which provides main services in terms of broadband communications and information technology industries, is a research anddevelopment, production, sales, service integration, high-tech enterprises. Our products mainly covers the optical signal transmission and access, signal transmission and access,photoelectric signal conversion and photoelectric signal and so on.
ChuCheng is the agent of well-known international brands such as HUAWEI, ZTE,CISCO, ZYXEL, GRANDSTREAM, etc.The clients include major national telecom carriers, as well as radio and television, electricity, mining and other industry professional net users. We has been actively expanding into foreign markets. The products are exported to Europe,America, Southeast Asia, the Middle East , Japan, Korea and other neighboring countries.
