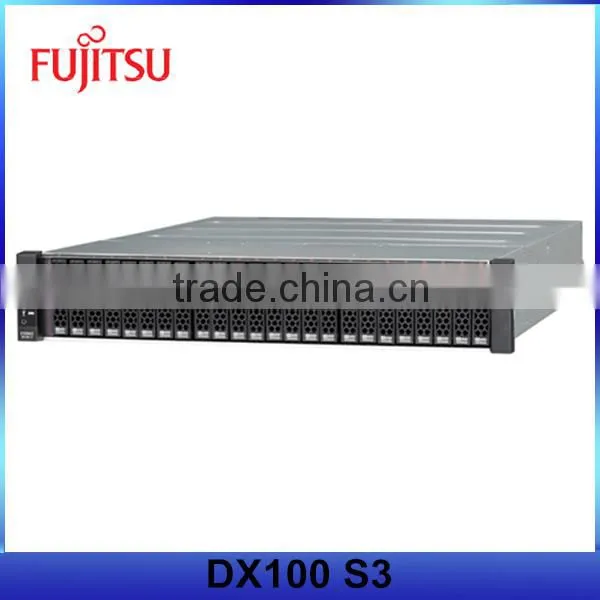

FUJITSU Storage ETERNUS DX100 S3 network storage server

MainFeatures

Benefits

Excellent price-performance in the entry-class

• Performance and capacity headroom enable data consolidation for server virtualization, e-mail, databases and business applications in one system
• High scalability within the system and upgrade options to bigger systems support high data increases at low costs of growth and ensure investment protection

Enterprise-class management functions in the entry class

• Richly featured ETERNUS SF Express management suite at no extra cost
• Flexible disaster recovery with remote replication and snapshot concepts between different model sizes
• Intelligent snapshot functionality for backup already included
• Easy and efficient operation with a minimum of administration efforts

Truly unified architecture

• Unified SAN and NAS access drive system utilization improving ROI
• Unified management functions across the entire product line result in operational efficiency
• Unified connectivity supports a large range and many combinations of networking types as well as direct server connections
• Unified architecture allows flexible combinations of 2.5” and 3.5” disk types

General system information

2.5-inch Controller Enclosure

3.5-inch Controller Enclosure

No. of controllers

1/2

No. of host interfaces

2/4/8 ports [FC, iSCSI, FCoE, SAS, Ethernet(10Gbit/s)], 4/8/16 ports [Ethernet(1Gbit/s)]

Max. cache capacity

8 GB (block) / 8 GB + 8 GB (block + file)

Extreme Cache Pool

800 GB

Max. no. of drives

144

Max. no. of drive enclosures

10

Note

5 with all 2.5” DE, 10 with all 3.5” DE, 2 with HD-DE or mixture of DEs up to Max no. Drives

Redundancies

RAID Controller (in 2-controller configuration)

Fan

Power supply

Supported RAID levels

0, 1, 1+0, 5, 5+0, 6

Host interfaces

Fibre Channel (16 Gbit/s, 8 Gbit/s, 4 Gbit/s)

FCoE (10 Gbit/s)

iSCSI (10 Gbit/s, 1 Gbit/s)

Ethernet (10 Gbit/s, 1 Gbit/s)

SAS (6 Gbit/s, 3 Gbit/s)

Mixed host interfaces

Yes

Max. no. of hosts

1024

Supported NAS protocols

CIFS (SMB 2.0), CIFS (SMB 3.0), NFSv2, NFSv3

Max. storage capacity - physical

864TB

Drive Type

2.5-inch, SAS, 15,000 rpm (600 GB / 300 GB)

2.5-inch, SAS, 10,000 rpm (1,200 GB / 900 GB / 600 GB / 300 GB)

2.5-inch, SAS (self-encrypting), 10,000 rpm (1,200 GB / 900 GB)

2.5-inch, Nearline SAS, 7,200 rpm (1 TB)

2.5-inch, SSD (1,600 GB / 800 GB / 400 GB)

3.5-inch, Nearline SAS, 7,200 rpm (6 TB / 4 TB / 3 TB / 2 TB)

3.5-inch, SSD (1,600 GB / 800 GB / 400 GB)

HDDE, SAS, 10,000 rpm (1.2 TB)

HDDE, Nearline SAS, 7,200 rpm (4 TB / 3 TB / 2 TB)

Note

2.5-inch drives are available only for 2.5-inch drive enclosures and 3.5-inch drives are available only for 3.5-inch drive enclosures.

Max. no. of SSDs

unlimited

Mixed 2.5 inch/ 3.5 inch drive enclosures

Yes

Drive interface

Serial Attached SCSI (12 Gbit/s)

Back-end disk connectivity

1 pair of four-lane x 12 Gbit/s Serial Attached SCSI buses (SAS 3.0 wide)

Max. no. of LUNs

2,048

Max. LUN capacity

128 TB

Eco-mode

Yes

Thin Provisioning

Yes

Quality of Service

Yes

Business Continuity Features

No. of snapshots - max.

1024

Max. no. of copy generations

512

Remote Copy functionality

Synchronous and asynchronous

Data protection features

Cache Protection, Data Block Guard, Data Encryption, Dedicated Hot Spare, Disk Drive Patrol, Global Hot Spare, Fast Recovery

Security features

HTTPS (SSL), One Time Password, RADIUS, SSH

Options

Storage Cluster

Yes

Automated QoS

Yes

Automated Storage Tiering

Yes

Reporting function

Yes

Note

Options can be activated via ETERNUS SF Software

Dynamic configuration

Field model upgrade

to ETERNUS DX200 S3

to ETERNUS DX500 S3

to ETERNUS DX600 S3

Non-disruptive   firmware upgrade

Yes

RAID migration

Yes

LUN online expansion w/o interruption

Yes

Wide striping

Yes

Hot part replacement/ expansion

Yes

Management

Interfaces

Ethernet (1000 Base-T / 100 Base-TX / 10 Base-T)

Supported protocols

SNMP (version1, 2C, 3), SMI-S 1.6

Administration

Web-based graphical user interface, CLI (Command Line Interface), ETERNUS SF

Remote Support

Event notification (E-mail / SNMP / Syslog), Remote maintenance

Supported OS for ETERNUS SF Express

Operation Management Server

Windows Server® 2012 R2 Datacenter

Windows Server® 2012 R2 Standard

Windows Server® 2012 Datacenter

Windows Server® 2012 Standard

Windows Server® 2008 R2 Datacenter

Windows Server® 2008 R2 Enterprise

Windows Server® 2008 R2 Standard

Windows Server® 2008 Datacenter

Windows Server® 2008 Enterprise

Operation Management Client

Windows 7 Home Premium

Windows 7 Professional

Windows 7 Ultimate

Windows Vista® Home Basic

Windows Vista® Home Premium

Windows Vista® Business

Windows Vista® Enterprise

Windows Vista® Ultimate

Windows® XP Home Edition

Windows® XP Professional

Windows Server® 2008 Standard

Windows Server® 2008 Enterprise

Windows Server® 2008 Datacenter

Windows Server® 2012 Standard

Windows Server® 2012 Datacenter

Windows Server® 2012 R2 Standard

Windows Server® 2012 R2 Datacenter

Note

See the ETERNUS SF datasheet for further options

Supported configurations

All major host operating systems, servers and business applications

Detailed support matrix:

/global/services/computing/storage/eternus/products/diskstorage/dx100/#Tab0-4

Installation specification

19” rackmount

Yes

Service Area

Front: 850 mm (33.5 inch) or more

Rear: 850 mm (33.5 inch) or more

Power voltage

AC 100 - 120 V / AC 200 - 240 V

Power frequency

50 / 60 Hz

Power supply efficiency

92 % (80 PLUS gold)

Maximum Power Consumption

AC 100 - 120 V: 4,120 W (4,230 VA)

Maximum Power Consumption

AC 200 - 240 V: 4,120 W (4,230 VA)

Power phase

Single

2.5-inch Controller Enclosure

2.5-inch Drive Enclosure

3.5-inch Controller Enclosure

3.5-inch Drive Enclosure

High-Density Drive Enclosure

Dimensions (W x D x H)

482 x 645 x 88 mm

19 x 25.4 x 3.5 inch

2 U

482 x 540 x 88 mm

19 x 21.3 x 3.5 inch

2 U

482 x 670 x 88 mm

19 x 26.4 x 3.5 inch

2 U

482 x 560 x 88 mm

19 x 22 x 3.5 inch

2 U

482 x 980 x 176 mm

19 x 38.6 x 6.9 inch

4 U

Weight

35 kg (77 lb)

Maximum Power Consumption

(AC 100 - 120 V)

730 W (740 VA)

430 W (440 VA)

630 W (640 VA)

340 W (350 VA)

1,300 W (1,320 VA)

Maximum Power Consumption

(AC 200 - 240 V)

730 W (740 VA)

430 W (440 VA)

630 W (640 VA)

340 W (350 VA)

1,300 W (1,320 VA)

Environmental

Maximum Heat Generation

Temperature (operating)

10 - 40 °C

Temperature (not operating)

0 - 50 °C

Humidity (operating)

20 - 80 % (relative humidity, non-condensing)

Humidity (not operating)

8 - 80 % (relative humidity, non-condensing)

Altitude

3,000 m (10,000 ft.)

Sound power (LWAd; 1B = 10dB)

6.7B

Sound pressure (LpAm)

49dB(A)

Sound power (LWAd; 1B = 10dB)

6.7B

Noise notes

Measured with single enclosure according to ISO 7779 and declared according to ISO 9296

Operating environment

FTS 04230 – Guideline for Data Center (installation specification)

Operating environment link

/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe

Compliance

Product safety

UL 60950-1, CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST-R

Electromagnetic Compatibility

CNS 13438, FCC CFR 47 class A , ICES 003 Class A, EN 55022 Class A, VCCI Class A, AS/NZS CISPR 22 Class A

Electromagnetic Immunity

EN 55024

CE certification

2004/108/EC, 2006/95/EC, 2011/65/EC

Approvals

CB, CE, C-Tick, FCC, EAC, GS, VCCI

Environmental compliance

RoHS compliant, WEEE compliant

Compliance notes

There is general compliance with the safety requirements of all European countries and North America. National approvals required in order to satisfy statutory regulations or for other reasons can be applied for on request.

Compliance link

/sites/certificates

Warranty

Standard Warranty

3 years

Service level

Onsite Service

Warranty Terms & Conditions

/support

Product Support Services - the perfect extension

Support Pack Options

Globally available in major business areas:

9x5, Next Business Day Onsite Response Time

9x5, 4h Onsite Response Time

24x7, 4h Onsite Response Time

Recommended Service

24x7, Onsite Response Time: 4h

Service Lifecycle

5 years after end of product life
