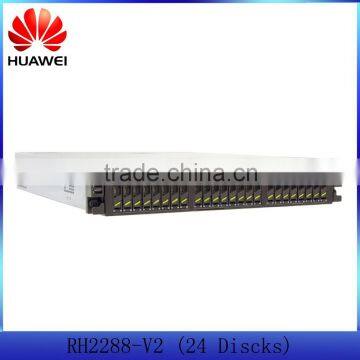

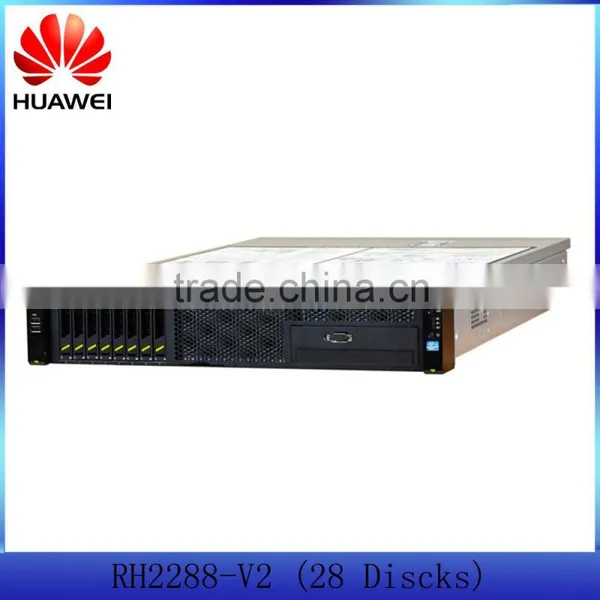

Original Quidway HUAWEI Intel Xeon 2U Rack Server RH2288H V2 With 4 GE Ports

CPU

• The server supports two Intel Xeon® E5-2600 (Sandy Bridge-EP) series CPUs.

  • One or two CPUs of quad-core, six-core, or eight-core
  • Highest CPU frequency: 3.3 GHz
  • Maximum power consumption of each CPU: 135 W
  • Maximum L3 cache of each CPU: 20 MB
  NOTE:

  The performance of the 135 W CPU may deteriorate when one fan fails.

• The server supports two Intel Xeon® E5-2600 v2 (Ivy Bridge-EP) series CPUs.

  • One or two CPUs of 4/6/8/10/12 cores
  • Highest CPU frequency: 3.5 GHz
  • Maximum power consumption of each CPU: 130 W
  • Maximum L3 cache of each CPU: 30 MB
  NOTE:

  The performance of the 130 W CPU may deteriorate when one fan fails.

• Two CPUs are connected through two QuickPath buses of full bandwidth. Each link provides a unidirectional transmission rate of up to 8.0 GT/s.

Memory

• Maximum number of double data rate 3 (DDR3) DIMMs: 24

• Maximum memory capacity: 768 GB

• Capacity of a single DIMM: 4 GB, 8 GB, 16 GB, or 32 GB

• Memory speed: DDR3 800/1066/1333/1600/1866 MHz

• Supports the DIMMs of 1.5 times height.

Storage

• The server supports three types of hard disk configurations:

  • RH2288H V2 (8 hard disks): supports eight 2.5-inch SAS HDDs, SATA HDDs, or SSDs at the front.

  • RH2288H V2 (14 hard disks): twelve 3.5-inch SAS or SATA HDDs at the front and two 2.5-inch SAS, SATA HDDs or SSDs at the rear.

    NOTE:

    You can install a customized 3.5-inch hard disk tray to support twelve 2.5-inch hard disk at the front.

  • RH2288H V2 (26 hard disks): supports twenty-four 2.5-inch SAS HDDs, SATA HDDs, or SSDs at the front and two 2.5-inch SAS, SATA HDDs, or SSDs at the rear.

• The following information lists the total storage capacity of eight 2.5-inch hard disks:

  • SAS HDD: 9.6 TB
  • SATA HDD: 8 TB
  • SSD: 4.8 TB

• The following information lists the total storage capacity of fourteen 3.5-inch hard disks:

  • SAS HDD: 16.8 TB
  • SATA HDD: 50 TB

• The following information lists the total storage capacity of twenty-six 2.5-inch hard disks:

  • SAS HDD: 31.2 TB
  • SATA HDD: 26 TB
  • SSD: 14.4 TB

• Hard disks are hot-swappable.

• SAS HDDs, SATA HDDs, and SSDs can be installed in one chassis.

• The server supports RAID 0, 1, 10, 5, 50, 6, and 60. It supports iBBU battery protection, RAID state migration, RAID configuration memory, self-diagnosis, and web-based configuration.

• The mainboard can be configured with an Serial Attached SCSI (SAS) card or an SAS RAID controller card (with the maximum 1 GB cache) for improving hard disk storage performance and protecting user data.

• RAID controller cards do not occupy standard PCIe slots, which ensures high scalability for the system.

Chipset

Intel® C602 chipset.

Network port

I/O port

• Two 2.5-inch SATA or SAS ports on the rear panel (when 12 or 24 disks are configured)

• One onboard DVD-ROM/DVD-RW connector

• Five USB 2.0 ports: two on the front panel, two on the rear panel, and one on the mainboard

• One USB flash port on the mainboard

• Two video graphics array (VGA) ports (one on the front panel and the other on the rear panel)

• One RS232 port on the rear panel

• One RJ45 management port on the rear panel

DVD-ROM drive

DVD-ROM/DVD-RW drive, optional when the server is RH2288H V2 (8 hard disks).

Expansion slots

• A maximum of seven PCIe cards are supported:

  • One standard PCIe slot of full height and full length
  • One standard PCIe slot of full height and 3/4 length
  • One standard PCIe slot of full height and half length
  • Three standard PCIe slot of half height
  • One non-standard PCIe slot for installing a RAID controller card

• The PCIe slots support the Huawei PCIe iNIC to improve the I/O bandwidth and throughput.

• The PCIe slots support two Huawei PCIe SSDs for search, cache, and download services to greatly improve the I/O performance.

• The PCIe expansion slots support the GPUs, such as Quadro 2000, Quadro 4000, and Tesla M2090.

For details about the PCIe cards supported by the RH2288H V2, see the compatibility list.

Certification

Including CCC, CE, FCC, IC, VCCI, and C-tick
