Home > Computer Products > Server & Workstation > Rack Server > Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors

Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors

Name: Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors
Brand: HUAWEI (Quidway)
SKU: 101653787
Availability: InStock

Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors thumbnail-1

Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors thumbnail-2

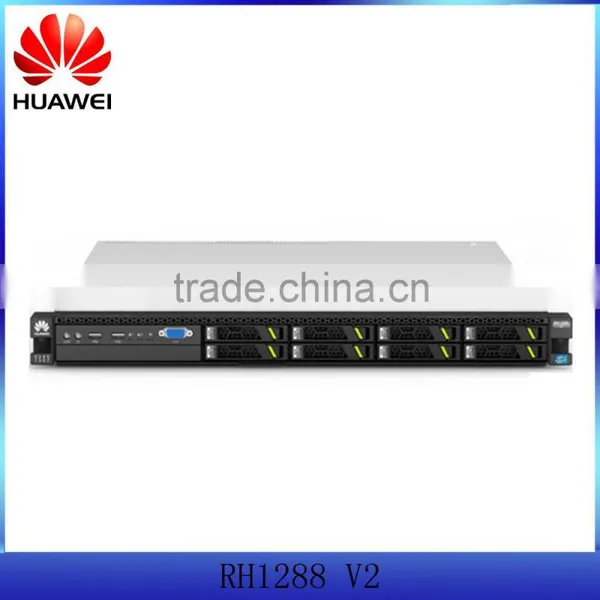

Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors photo-1

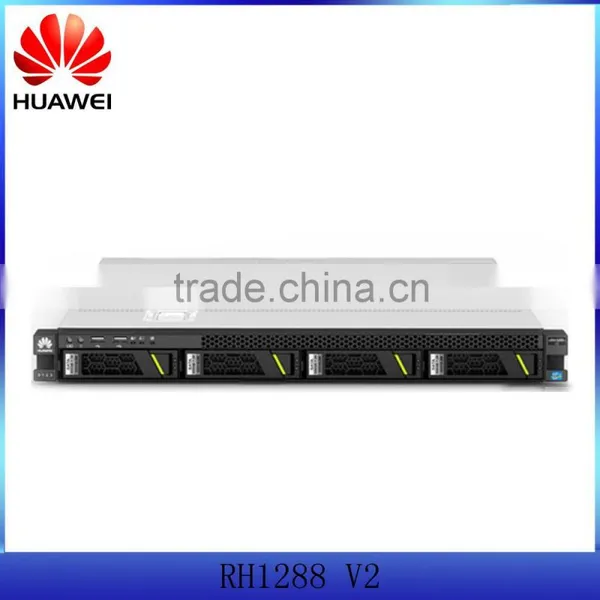

Quidway Supplier DDR3 Intel Database Server Huawei RH 1288A V2 With 1 or 2 Processors photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Products Status:

Stock

Type:

Rack

Max Memory Capacity:

Other, 256GB

Contact Supplier Request Quote Chat Now

Shanghai Chu Cheng Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Type Rack

Max Memory Capacity Other, 256GB

Max Processors 2

Processor Main Frequency 2.5GHz

Processor Type Intel Xeon E5-2600 v2 series processors

Brand Name HUAWEI (Quidway)

Model Number RH1288A V2

Place of Origin China

DDR3 intel database server huawei RH 1288A V2

Processors

1 or 2 Intel^® Xeon^® E5-2600 v2 series processors

Memory

8 DDR3 RDIMMs/LRDIMMs

Internal Storage

Hard disk configurations:

8 x 2.5-inch SAS/SATA HDDs or SSDs
4 x 3.5-inch SAS or SATA HDDs

Product Description

DDR3 intel database server huawei RH 1288A V2

Standard 1U, 2-socket rack server supports Intel® Xeon® E5-2600 v2 series processors with up to 20 cores, achieving high performance for compute-intensive applications.

Maximum 16 TB internal storage capacity strikes an optimal balance between performance and density.

Huawei server with Intel® Xeon® processor.

Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Appearance

DDR3 intel database server huawei RH 1288A V2

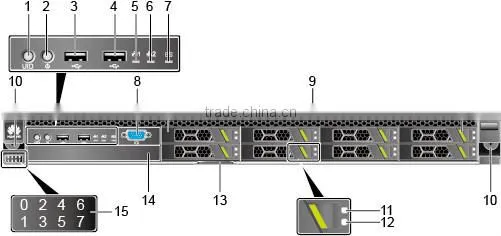

RH1288 V2-8S front view

1	UID button/indicator	2	Power button/indicator
3	USB port	4	USB port
5	Ethernet port indicator 1	6	Ethernet port indicator 2
7	Healthy indicator	8	VGA port
9	Hard disk	10	Captive screw
11	Hard disk fault indicator	12	Hard disk active indicator
13	Label (including ESN label)	14	Built-in DVD-ROM drive
15	Hard disk slot label

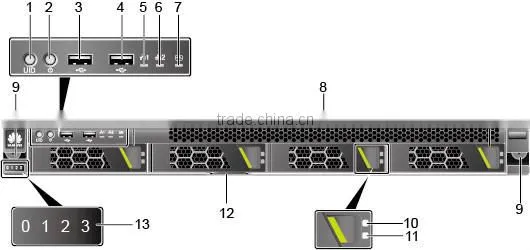

RH1288 V2-4L front view

1	UID button/indicator	2	Power button/indicator
3	USB port	4	USB port
5	Ethernet port indicator 1	6	Ethernet port indicator 2
7	Healthy indicator	8	Hard disk
9	Captive screw	10	Hard disk fault indicator
11	Hard disk active indicator	12	Label (including ESN label)
13	Hard disk slot label

RH1288A V2 rear panel

1	Connection status indicator	2	GE port
3	Data transmission status indicator	4	GE port
5	UID indicator	6	Management network port (Mgmt)
7	USB port	8	USB port
9	VGA port	10	Serial port
11	PSU power port	12	PSU indicator
13	PSU	14	PSU power port
15	PSU indicator	16	PSU

Specification

DDR3 intel database server huawei RH 1288A V2

Technical Specification

Component	Specifications
Form factor	1U rack server
Processor	Up to two Intel^® Xeon^® E5-2600 v2 series processors: Number of cores per processor: 10 cores (2.4 GHz), 8 cores (2.6 GHz), 6 cores (2.6 GHz), and 4 cores (2.5 GHz) Number of QPI links: 2 Maximum transmission speed per QPI link: 8.0 GT/s Maximum memory speed: 1866 MHz Maximum L3 cache capacity: 25 MB Up to two Intel^® Xeon^® E5-2600 series processors: Number of cores per processor: 8 cores (2.2 GHz), 6 cores (2.5 GHz), and 4 cores (2.4 GHz) Number of QPI links: 2 Maximum transmission speed per QPI link: 8.0 GT/s Maximum memory speed: 1600 MHz Maximum L3 cache capacity: 20 MB
Chipset	Intel C602
DIMM	Up to 8 DIMM slots (4 DIMMs per processor) for installing either RDIMMs or LRDIMMs. 8 x 32 GB RDIMMs for two processors, with a maximum memory capacity of 256 GB. 8 x 32 GB LRDIMMs for two processors, with a maximum memory capacity of 256 GB. Maximum memory speed: 1866 MHz (E5-2600 v2). Data protection measures: ECC, memory mirroring, Single Device Data Correction (SDDC), memory sparing, and lockstep.
Storage	The RH1288A V2 supports the following hard disk configurations:Hard disks are hot-swappable. RH1288A V2-8S: eight front 2.5-inch SAS HDDs (7.2 TB), SATA HDDs (8 TB), or SSDs (4.8 TB) RH1288A V2-4L: four front 3.5-inch SAS HDDs (4 TB) or SATA HDDs (16 TB) The server supports RAID 0, 1, 10, 1E, 5, 50, 6, and 60. It protects cache data from power failures, and supports RAID state migration, RAID configuration memory, self-diagnosis, and web-based configuration. The mainboard can be configured with a SAS card or SAS RAID controller card (with a maximum of 1 GB cache) to improve hard disk storage performance and ensure user data security. The RAID controller card does not occupy a standard PCIe slot, improving system scalability.
Network port	Two GE ports (Intel I350) on the mainboard, supporting NC-SI, WOL, and PXE
PCIe slot	The server provides three PCIe slots: one for a full-height full-length PCIe card, one for a half-height half-length PCIe card, and one for a non-standard RAID controller card. One Huawei PCIe intelligent network interface card (iNIC), which improves the I/O bandwidth and throughput. One Huawei SSD card, which greatly improves I/O performance for search, cache, and download services. NVS315 GPU.
Port	Ports on the front panel: Two USB 2.0 ports One DB15 video port (provided by the RH1288A V2-8S) Ports on the rear panel: Two USB 2.0 ports One DB15 video port One DB9 serial port One RJ45 system management port One built-in USB port (for the embedded system management program)
Fan module	Five hot-swappable fan modules, tolerating the failure of a single fan. Each fan module consists of two counter-rotating fans.
PSU	Two hot-swappable 460 W AC PSU in redundancy mode, supporting efficiency of up to 94 percent.
System management	UEFI HUAWEI iBMC: supports Intelligent Platform Management Interface (IPMI), Serial over LAN (SOL), KVM over IP, and virtual media, and provides one 10/100/1000M RJ-45 management network port. NCSI
Security	Power-on password Administrator password
GPU	The system mainboard integrates the display chip and provides 32 MB display memory. The maximum resolution is 1920 x 1200 at 60 Hz with 16 M colors.

Physical and environmental specifications

Item	Specifications
Dimensions (H x W x D)	43.6 mm x 447 mm x 740 mm (1.78 in. x 17.05 in. x 29.13 in.)
Installation dimensions	The RH1288A V2 fits into a common rack complying with the IEC 297 standard. Rack width: 19 in. Rack depth: > 1000 mm (39.37 in.) Guide rail installation requirements are as follows: L-shaped guide rail: applies only to Huawei racks. Adjustable guide rail: The distance between the front rear mounting bars is 557 mm to 862 mm.
Power rating	460 W
Weight in full configuration	Net weight: RH1288A V2-8S: 19.6 kg RH1288A V2-4L: 20 kg Packaging materials: 5.3 kg (11.69 lb)
Input voltage	AC: 100-240 V AC (with an input frequency of 50 Hz or 60 Hz) 240 V HV DC: 192-288 V DC NOTE: The recommended current specification for the external power circuit breaker connected to the server is 32 A..
Temperature	Operating temperature: 5°C to 35°C (41°F to 95°F) Storage temperature: –40°C to +65°C (–40ºF to +149ºF) Temperature change rate: < 20°C/h (36°F/h)
Altitude	≤ 3000 m (9842.40 ft) When the altitude is higher than 900 m (2952.72 ft), the operating temperature decreases by 1°C (33.8°F) per 300 m (984.24 ft).
Humidity	Operating humidity: 8% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) Humidity change rate: < 20% RH/hour
Acoustic Noise	The data listed in the following is the declared A-weighted sound power levels (LWAd) and declared average bystander position A-weighted sound pressure levels (LpAm) when the server is operating in a 23°C (73.4°F) ambient environment. Noise emissions are measured in accordance with ISO 7999 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). Idle: LWAd: 5.9Bels LpAm: 43dBA Operating: LWAd: 6.7Bels LpAm: 50.1dBA NOTE: The actual sound levels generated during server operating vary depending on the server configuration, load, and ambient temperature.
