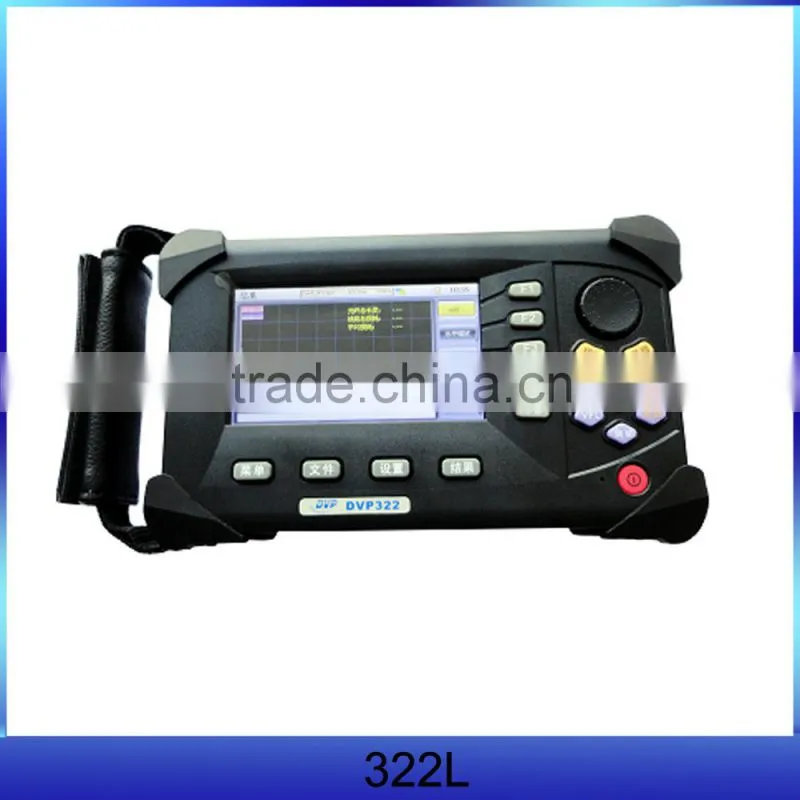

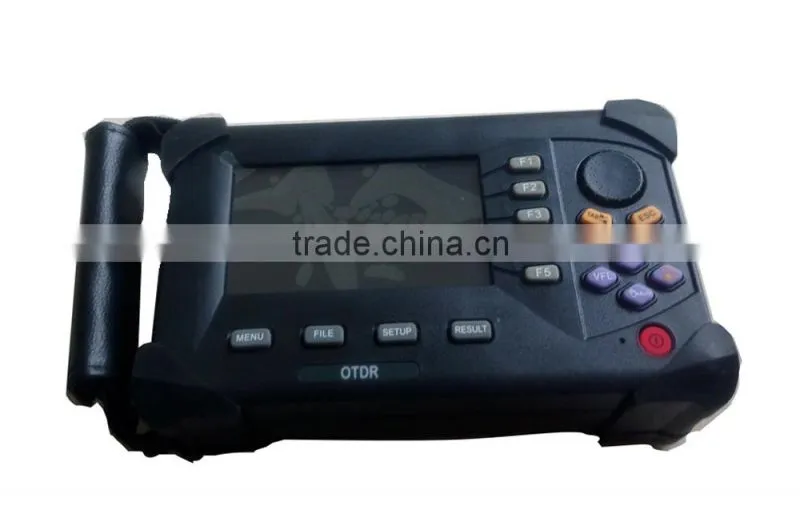

Smart portable OTDR Optical equipment
Features
l One-key operation, easy to operate
l Smart portable OTDR, 4.3’TFT LCD display
l Firm, durable, shock-proof, moisture-proof
l Automatic trouble–shooting and calibration
l Built-in lithium rechargeable battery, more than
8 hours working hours
l Support USB and RJ45 interface, more convenient to manage files
l Toolbox PC simulation software
SPECIFICATIONS
Model |
Wavelength(nm) |
Dynamic Range(dB) |
Event Dead Zone (m) |
Attenuation Dead Zone (m) |
||
DVP322 |
1310±20/1550±20 |
29/27 |
<3m |
<25m |
||
Distance range(Km) |
5m-200km |
|||||
Pulse width(ns) |
5ns~20μs(5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs) |
|||||
Measurement time |
user-defined(smart link),with real-time measurement function |
|||||
Distance accuracy(m) |
±(1m +0.001%×range + sampling resolution) |
|||||
Attenuation accuracy |
±0.05dB/dB |
|||||
Loss limit(dB) |
0.01dB |
|||||
Loss resolution(dB) |
0.001dB |
|||||
Sampling resolution(m) |
0.1m |
|||||
Sampling points |
64000 |
|||||
Data storage |
3000 items |
|||||
OTHER INDICATORS
LCD type |
4.3 inch TFT colorized LCD |
Laser adapter |
FC/PC, |
Interface |
USB,RJ45 |
Battery |
built-in rechargeable Li-ion battery charging time <4 hours working time >8 hours |
Power |
AC/DC adapter input AC90-240V ±10% output DC12V |
Operating temperature |
0℃~40℃ |
storage temperature |
-20℃~70℃ |
relative humidity |
<80% |
weight |
<1kg |
dimensions (mm) |
200*126*62mm |
l We can provide detail documents and remote help for device installation and configuration.
l Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
l Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
More information pls contact me freely.My skype sunny.liang.
