pir sensor/pir motion sensor

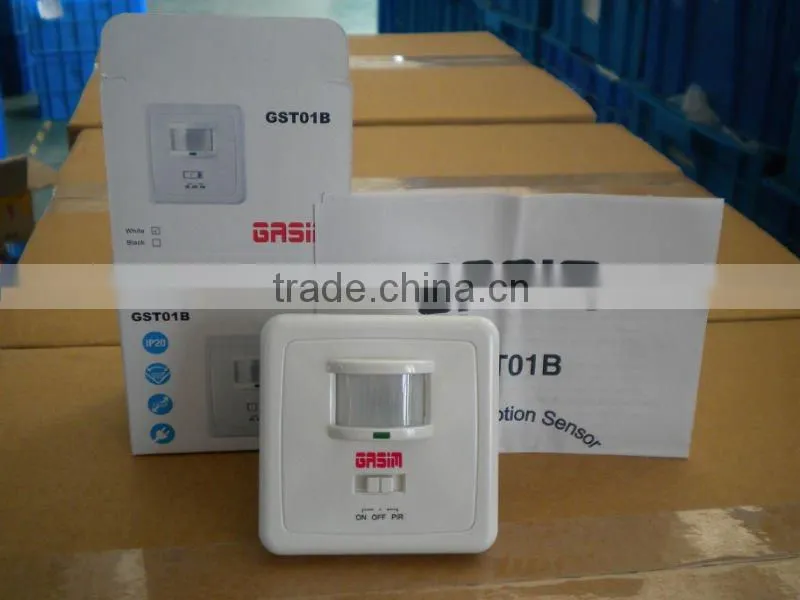

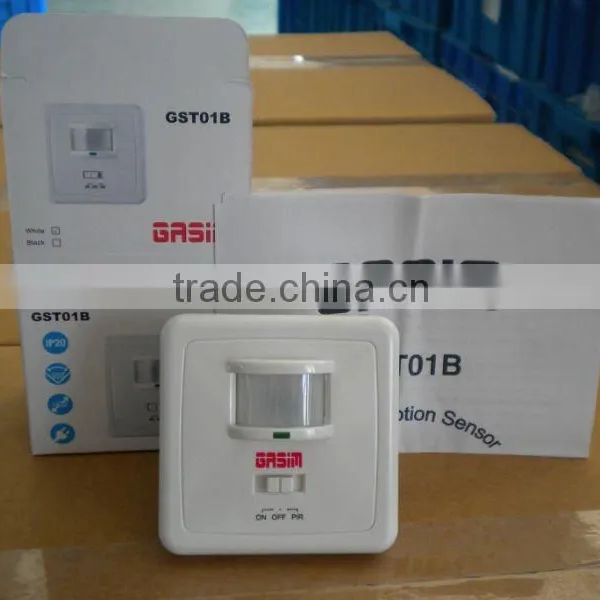

Welcome to use GST01 infrared motion sensor!
different with other items, it has PIR+MIC mode. It utilizes the infrared energy or sound from human, leading to the controlled-load is turned on in a short time. The product it has strong stability with multi-function, multi-mode for choosing. It is It could identify daylight and night by automatically. Easier installation, wider range for using.
|

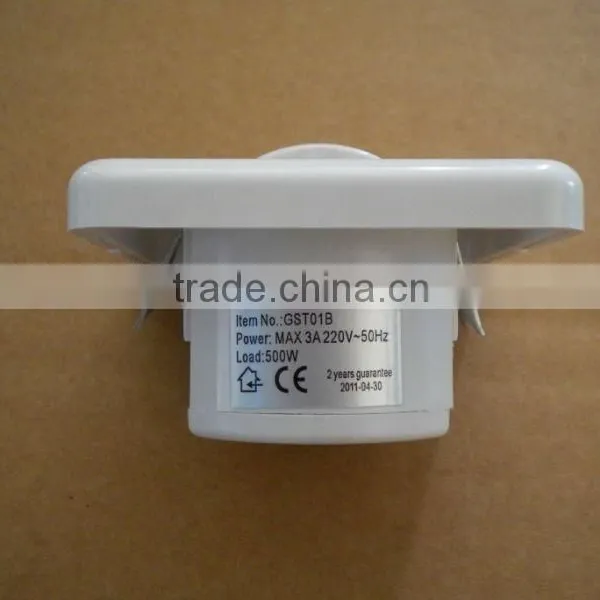

Detection Range: 160º Power Source: 220-240V/AC Rated Load: Max.500W(incandescent lamp) Detection Distance:max.9m (<24℃) Time Delay: 10 sec to 7min(adjustable) Ambient Light:< 3-2000LUX (adjustable) Sound Control Sensitivity:30DB~90DB(adjustable) |
|
Detection Range: 160º Power Source: 220-240V/AC Rated Load: Max.1200W (incandescent lamp) 300W (energy-saving lamp) Detection Distance: max.9m (<24℃) Time Delay: 10 sec to 7min(adjustable) Ambient Light:< 3-2000LUX (adjustable) |
FUNCTION:
- LUX adjustment: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
- Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic.(set time).
- Time-delay adjustment: It can be set according to the consumer’s desire. The minimum time is 10sec± The maximum is 8min±2min.
- Multi-working mode: You can select ON, OFF, PIR, PIR+MIC mode, if you select PIR+MIC mode, the lamp will be on automatically when you knock at the door or say “I am coming back” at night you come back home, it will make your home warmer and more romantic.
- The switch: “ON”,“OFF”,“PIR”,”PIR+MIC”.
pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor

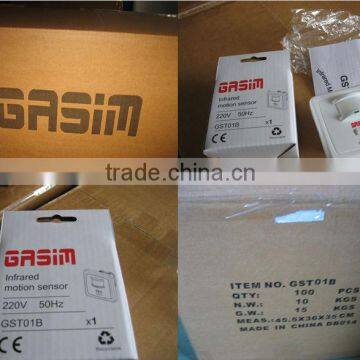

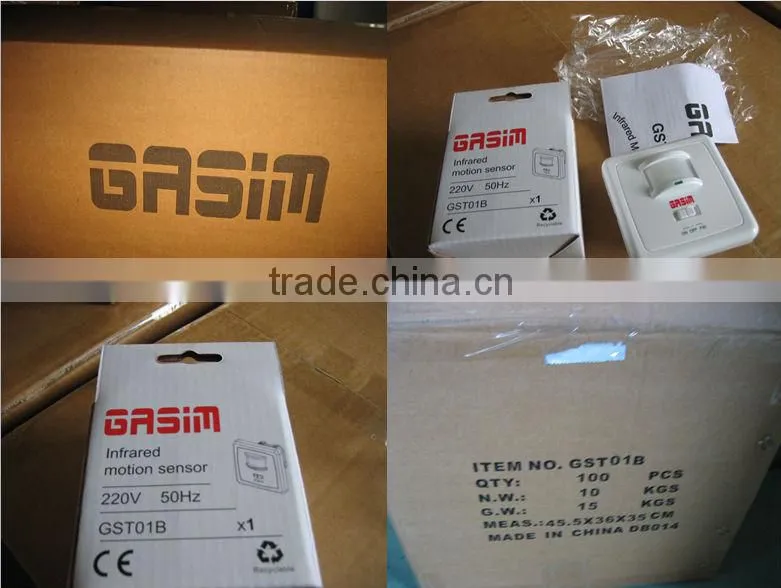

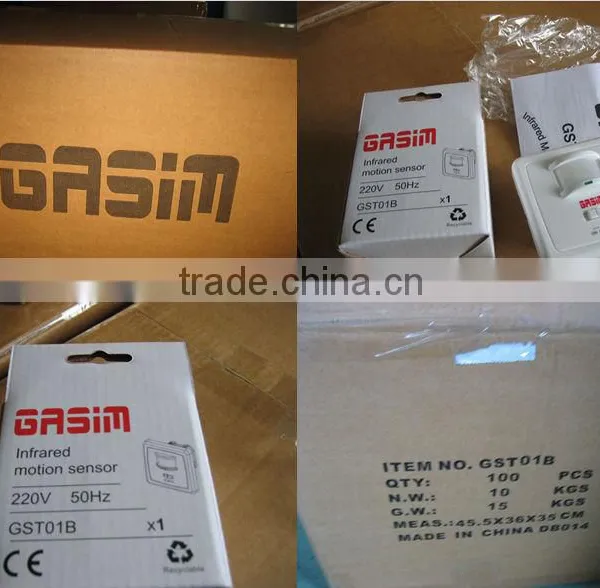

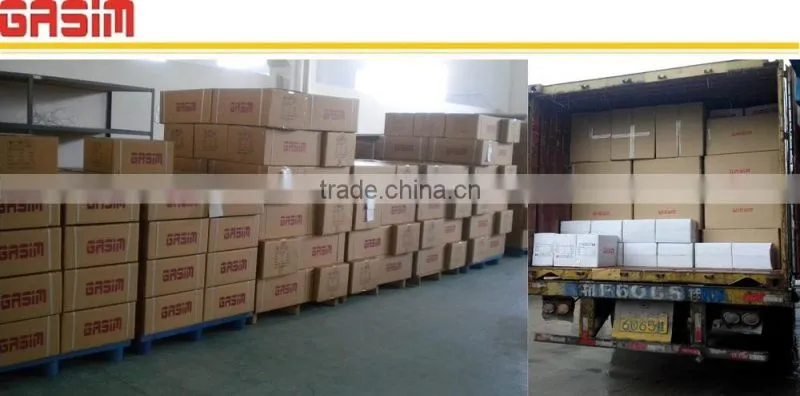

standard export packing for pir sensor/pir motion sensor
pir sensor/pir motion sensor
pir sensor/pir motion sensor
(1)Warranty (24 months warranty)
- The warranty starts from the delivery date from our factory;
- During the warranty, any defective product will get repaired or replaced for free;
- It is beyond the warranty as the products broken by the violence, the carelessness or repaired, altered without authorization.
(2)Lead Time
- Sample orders will be delivered from our factory within 7 working days.
- General orders will be delivered from our factory within 15 working days.
- Bulk orders will be delivered from our factory within 25 working days at most
(3)Shipment
- By EMS, DHL, FedEx, TNT, UPS or other express.
- By our forwarding agent (by air or by sea).
- By your own forwarding agent.
- By domestic forwarding agents to any city in China.
pir sensor/pir motion sensor
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 5 days, mass production time needs 20-25 days for order less than 5000 pcs.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 200 pcs under neutral gift box; MOQ FOB is 1000pcs. MOQ for OEM is 2000PCS.
Q: 4. How do you ship the goods and how long does it take arrive?
A: for samples, we usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
For cargos, you can choose sea or airline service by your needs.
Q: 5. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer 3 years guarantee for the products.
Q: 7. Do you accept drop shipping?
A: Yes, it’s available.
