xyz linear motorise price J03DP
- 50 Set / Sets per Month
- Credit Card
Product Details
| Place of Origin: | Beijing, China |
Product Description

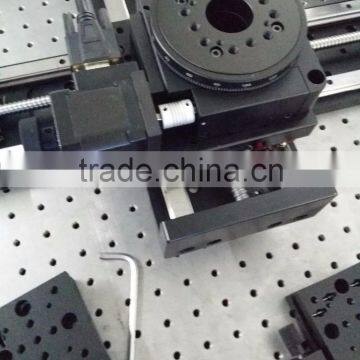

Motorized Linear Moving Stages (Most Popular Type)
xyz linear motorise price
Features
*High precise ball screw provides high-performance and high-accuracy
*Regular type set with small 1.8°2-phase stepper motor
*Square rail and sliding block supply high-loading, special in horizontal use
*Special design for couple with other stage easily
*The basic type can set with grating scales, servo motor
*RS232 interface for connecting motion controller easily
Model Number | J03DP50 | J03DP100 | J03DP150 | J03DP200 | J03DP300 | J03DP400 | J03DP500 | ||||||
Travel Range | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | ||||||
Bearing | High Precise Ball Screw with 4mm leading | High Precise Ball Screw with 5mm leading | |||||||||||
Travel Guide | Square rail and sliding blocks | ||||||||||||
Stepper Motor | 1.8° 2-phase STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy Black-Anodized | ||||||||||||
Max Load Capacity | 30kg horizontal/ 15kg vertical | 40kg horizontal/ 15kg vertical | 50kg horizontal/ 15kg vertical | ||||||||||
Weight | 4.0kg | 5.5kg | 5.9kg | 6.3kg | 7.0kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm/pulse, non-ms driver 1μm /pulse, 20ms driver | 20μm /pulse, non-ms driver 1.25μm /pulse, 20ms driver | |||||||||||
Max Speed | 40mm/sec | 50mm/sec | |||||||||||
Repeatability | 5μm | ||||||||||||
Absolute Accuracy | 8μm | ||||||||||||
Straightness | 5μm | 6μm | 8μm | ||||||||||
Degree of Parallelization | 10μm | 15μm | 20μm | ||||||||||
Pitching | 25” | 50” | 60” | ||||||||||
Yawing | 20” | 25” | 30” | ||||||||||
Backlash | 5μm | ||||||||||||
Optional Accessories | Brake Function, Grating Scales, Servo Motor and Dust Cover | ||||||||||||
